EMEC AMSPLUS 02-60-EPDM Advanced Foot Mounted Electronic Chemical Dosing Pump
EMEC AMSPLUS 02-60-EPDM Advanced Foot Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC AMSPLUS 02-60-EPDM Advanced Foot Mounted Electronic Chemical D...
EMEC AMSPLUS 02-60-EPDM Advanced Foot Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
Metering pump, foot mount, 60 l/hr @ 2 bar, PVDF pump head, analog control, includes installation kit

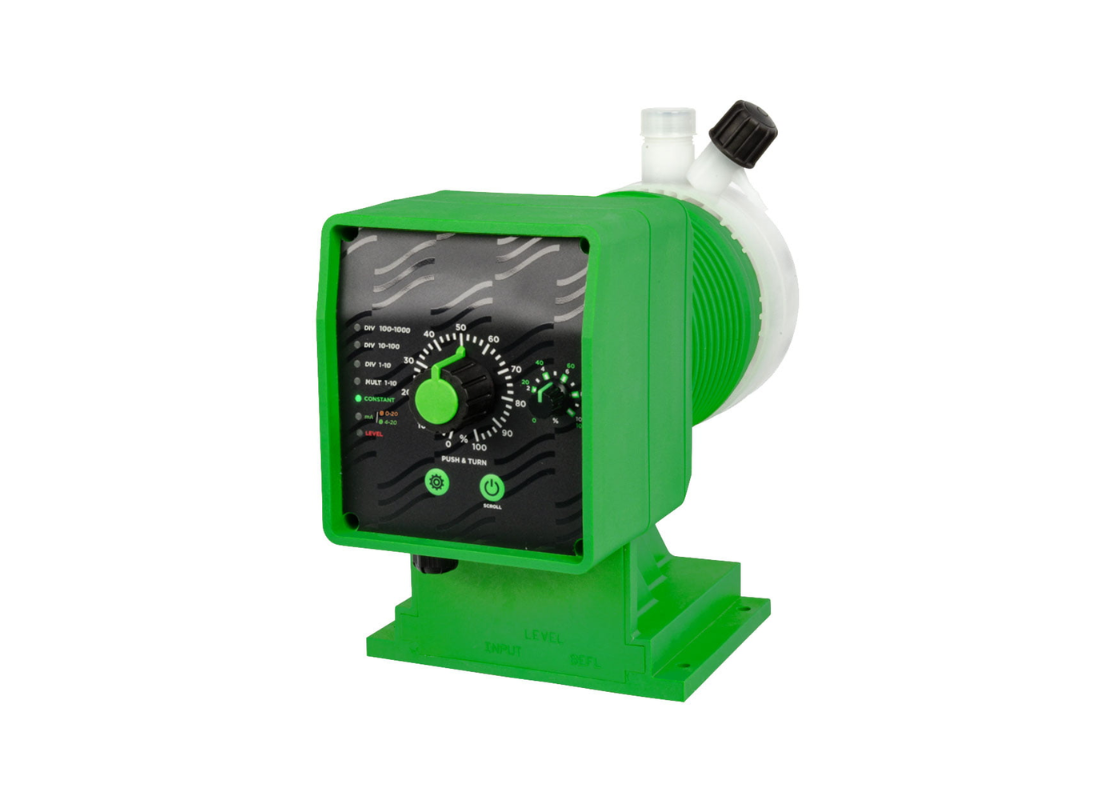

The EMEC AMSPLUS 02-60-EPDM is a high-performance solenoid-driven chemical dosing pump from the AMS Series, designed for accurate and reliable dosing in demanding industrial environments. Its foot-mounted configuration ensures stable installation, making it ideal for larger systems and continuous operation.
With a dosing capacity of 60 L/h at 2 bar, this model is well-suited for medium to high-volume chemical injection applications. The PVDF pump head provides excellent resistance to a wide range of chemicals, while the EPDM (Alkaline) seals are specifically suited for alkaline and water-based chemicals, ensuring durability and long service life.
The AMS PLUS series features analog control with adjustable dosing options including constant operation, multiplier/divider settings, and compatibility with mA signal input. This allows flexible and precise control of dosing rates based on system requirements.
Engineered with a high-strength PTFE diaphragm and solenoid-driven mechanism, the pump ensures consistent performance, low maintenance, and long-term reliability. It also supports both manual and self-venting configurations for enhanced usability.
Key Features
- Analog adjustable dosing control
- 60 L/h flow capacity at 2 bar
- PVDF pump head for strong chemical resistance
- EPDM (Alkaline) seals for alkaline chemical compatibility
- Solenoid-driven dosing mechanism
- Mechanical stroke adjustment (0–100%)
- Manual or self-venting options
- Durable foot-mounted design for stable installation
Applications
- Water treatment & disinfection
- Industrial chemical dosing
- Alkaline chemical dosing systems
- Cooling towers
- Process industries
- Wastewater treatment
Technical Specifications
- Model: AMSPLUS 02-60-EPDM
- Max Flow Rate: 60 L/hr
- Max Pressure: 2 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Analog (AMS PLUS)
- Pump Head Material: PVDF
- Seal Material: EPDM (Alkaline)
- Diaphragm: PTFE
- Mounting: Foot mounted
- Venting: Manual or Self (optional)
- Power Supply: 12 VDC / 24 VAC / 115 VAC / 230 VAC / Compressed Air
- Protection Rating: IP65
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC AMS PLUS Series Advanced Foot Mount Chemical Dosing Pumps
The EMEC AMS PLUS Series is an advanced range of solenoid-driven dosing pumps with foot-mounted design and enhanced control features, built for precise and reliable chemical injection in demanding applications. Designed for fixed installation on tanks, skids, or dosing systems, the AMS PLUS range combines robust construction with advanced functionality for greater control and flexibility.
These pumps are commonly used in water treatment plants, industrial processes, irrigation systems, pools, and sanitation applications where accurate dosing and system integration are critical. With support for analogue (4–20mA) and pulse (water meter) inputs, along with programmable settings, the AMS PLUS Series provides a high-performance solution for automated and controlled dosing systems.
Compare the AMS Plus Series Range
Compare the full EMEC AMS Plus range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | EMEC | EMEC | EMEC | EMEC | EMEC |
| Model Code | |||||
| Model Code | |||||
| Price | |||||
| Price |
Regular price
$2,595.00 AUD
Unit price
|
Regular price
$2,595.00 AUD
Unit price
|
Regular price
$2,470.00 AUD
Unit price
|
Regular price
$2,470.00 AUD
Unit price
|
Regular price
$2,350.00 AUD
Unit price
|
| Flow Range | |||||
| Flow Range | |||||
| Dosing Ratio | |||||
| Dosing Ratio | |||||
| Pressure Range | |||||
| Pressure Range | |||||
| Seal Type | |||||
| Seal Type | |||||
| pH Range | |||||
| pH Range | |||||
| Connection Size | |||||
| Connection Size | |||||
| Body Material | |||||
| Body Material | |||||
How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
