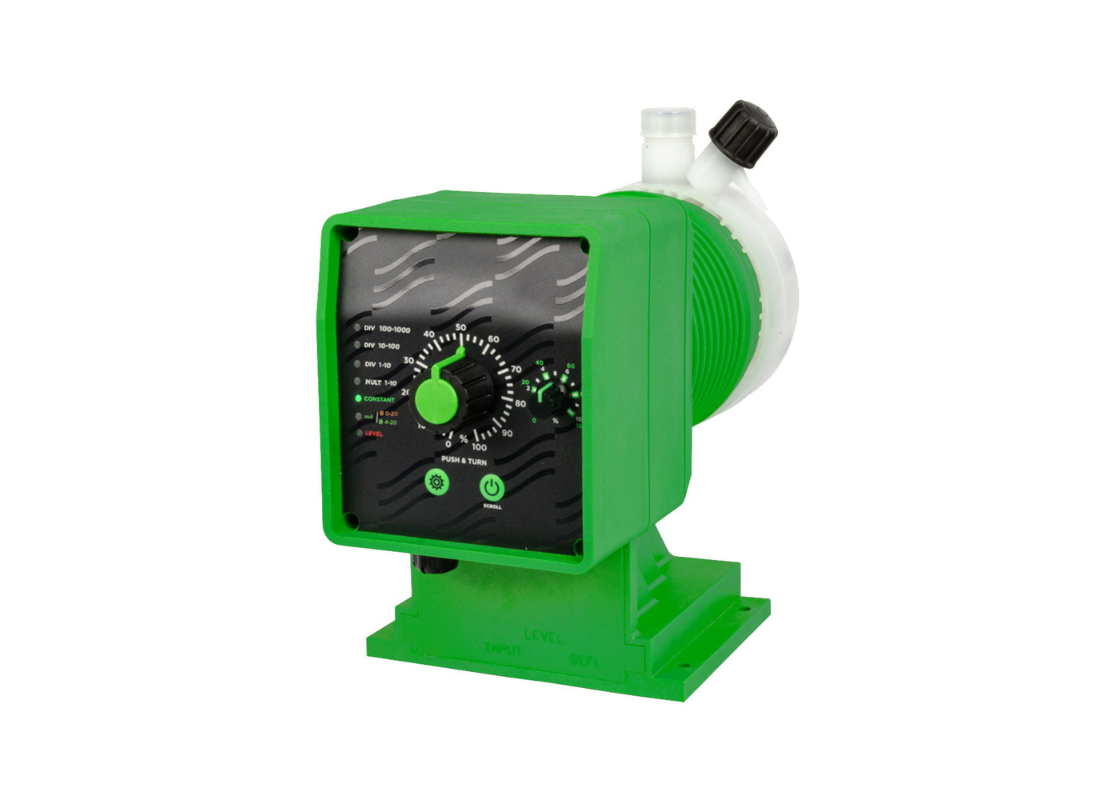

EMEC AMSPLUS 02-60-VF Advanced Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 60 l/hr @ 2 bar, PVDF pump head, analog control, includes installation kit

The EMEC AMSPLUS 02-60-VF is a high-performance solenoid-driven chemical dosing pump from the AMS Series, designed for precise and reliable dosing in demanding industrial environments. Its foot-mounted configuration provides stable installation, making it ideal for larger dosing systems and continuous operation setups.

With a dosing capacity of 60 L/h at 2 bar, this model is well-suited for medium to high-volume chemical injection applications. The PVDF pump head offers excellent resistance to aggressive chemicals, while the VF Viton (Acidic) seals ensure safe and durable operation when handling acidic solutions.

The AMS PLUS series features analog control with adjustable dosing modes including constant operation, multiplier and divider settings, and compatibility with mA signal input. This allows accurate and flexible dosing control based on system requirements.

Engineered with a high-strength PTFE diaphragm and a solenoid-driven mechanism, the pump delivers consistent performance, long service life, and minimal maintenance. It also supports both manual and self-venting configurations for added operational convenience.

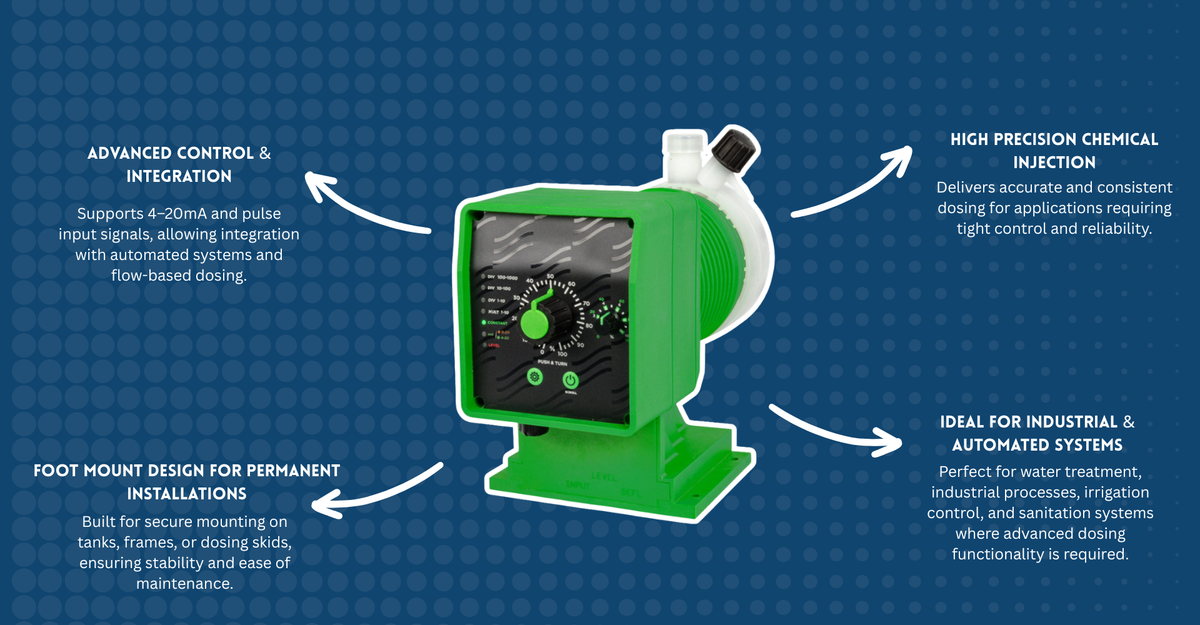

Key Features

• Analog adjustable dosing control

• 60 L/h flow capacity at 2 bar

• PVDF pump head for strong chemical resistance

• VF Viton (Acidic) seals for acidic applications

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Robust foot-mounted design for stable installation

Applications

• Water treatment & disinfection

• Industrial chemical dosing

• Acid dosing systems

• Cooling towers

• Process industries

• Wastewater treatment

Technical Specifications

• Model: AMSPLUS 02-60-VF

• Max Flow Rate: 60 L/hr

• Max Pressure: 2 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (AMS PLUS)

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12 VDC / 24 VAC / 115 VAC / 230 VAC / Compressed Air

• Protection Rating: IP65
