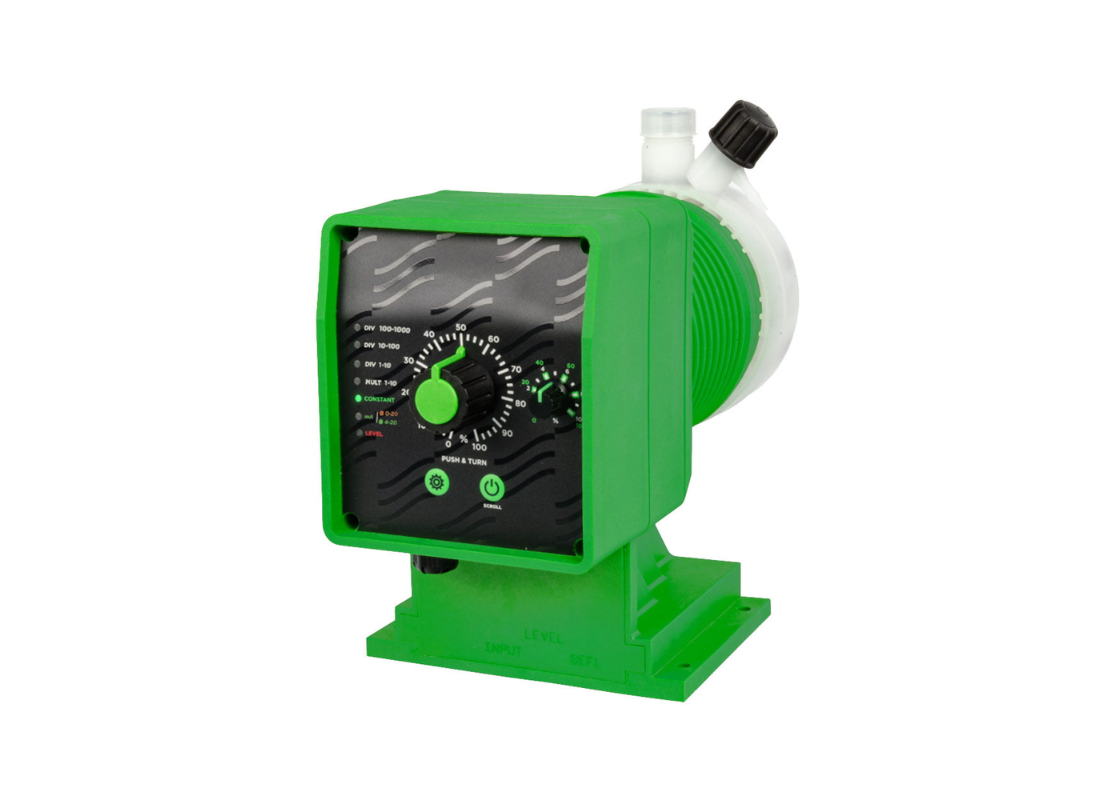

EMEC AMSPLUS 03-40-VF Advanced Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 40 l/hr @ 3 bar, PVDF pump head, analog control, includes installation kit

The EMEC AMSPLUS 03-40-VF is a robust and high-capacity solenoid-driven chemical dosing pump from the AMS Series, designed for precise and consistent dosing in industrial and water treatment applications. Its foot-mounted configuration ensures stable installation, making it ideal for continuous-duty systems.

Delivering up to 40 L/h at 3 bar, this model is suited for medium to high-volume dosing requirements. The PVDF pump head offers excellent chemical resistance, while the VF Viton (Acidic) seals are specifically engineered for use with acidic and aggressive chemicals, ensuring long-term durability and performance.

The AMS PLUS series features analog control with flexible dosing modes including constant operation, multiplier/divider settings, and compatibility with mA signal input. This enables accurate adjustment of dosing rates based on process requirements.

Built with a high-strength PTFE diaphragm and solenoid-driven mechanism, the pump ensures reliable performance, minimal maintenance, and extended operational life.

Key Features

• Analog adjustable dosing control

• 40 L/h flow capacity at 3 bar

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for acidic chemical compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Durable foot-mounted design for stable installation

Applications

• Water treatment & disinfection

• Acid dosing systems

• Industrial chemical dosing

• Cooling towers

• Process industries

• Wastewater treatment

Technical Specifications

• Model: AMSPLUS 03-40-VF

• Max Flow Rate: 40 L/hr

• Max Pressure: 3 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (AMS PLUS)

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12 VDC / 24 VAC / 115 VAC / 230 VAC / Compressed Air

• Protection Rating: IP65
