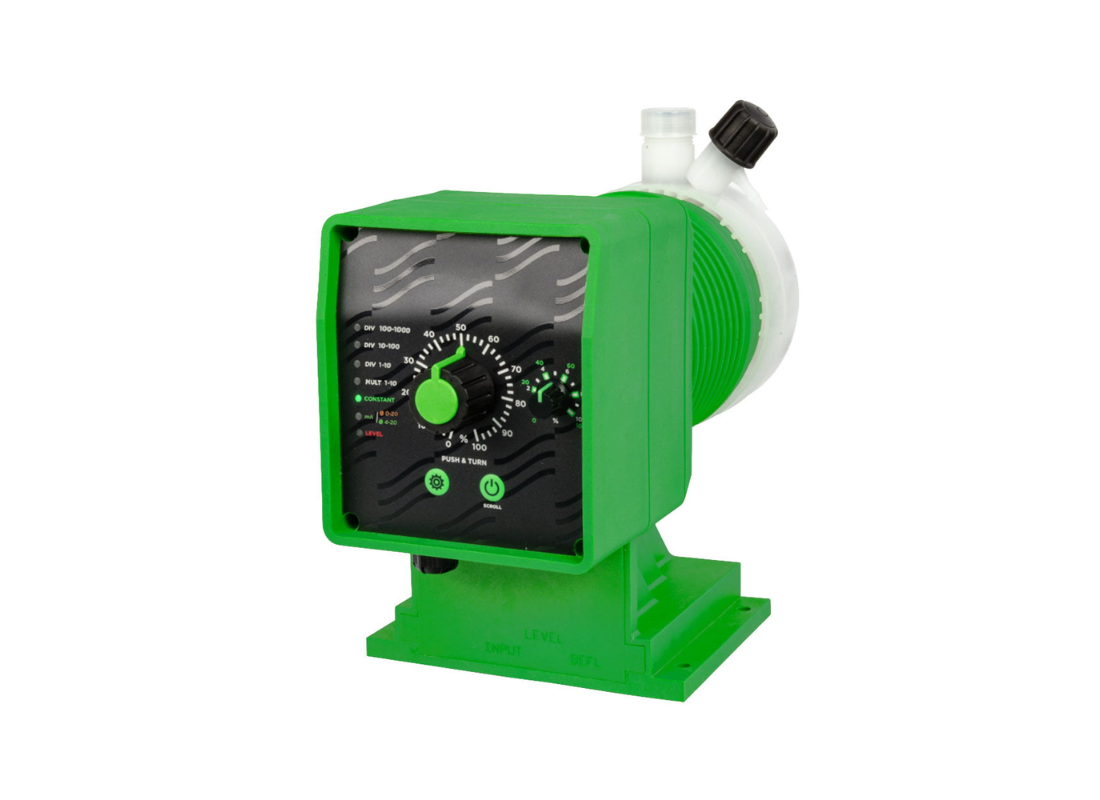

EMEC AMSPLUS 15-10-EPDM Advanced Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 10 l/hr @ 15 bar, PVDF pump head, analog control, includes installation kit

The EMEC AMSPLUS 15-10-EPDM is a robust and precise solenoid-driven chemical dosing pump from the AMS Series, engineered for applications requiring higher pressure and controlled dosing accuracy. Its foot-mounted configuration ensures stable installation, making it ideal for continuous industrial and water treatment operations.

Delivering up to 10 L/h at 15 bar, this model is well-suited for systems where higher pressure dosing is essential. The PVDF pump head provides excellent chemical resistance, while the EPDM (Alkaline) seals ensure compatibility with alkaline and water-based chemicals, supporting long-term reliability.

The AMS PLUS series features analog control with multiple dosing modes, including constant dosing, multiplier/divider functions, and mA signal input capability. These features enable flexible and accurate dosing control tailored to process requirements.

Built with a high-strength PTFE diaphragm and solenoid-driven mechanism, the pump offers consistent dosing performance, low maintenance, and extended operational life.

Key Features

• Analog adjustable dosing control

• 10 L/h flow capacity at 15 bar

• PVDF pump head for high chemical resistance

• EPDM (Alkaline) seals for alkaline compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Stable foot-mounted design

Applications

• Water treatment & disinfection

• Alkaline chemical dosing systems

• Industrial chemical processing

• Cooling towers

• Wastewater treatment

• Process industries

Technical Specifications

• Model: AMSPLUS 15-10-EPDM

• Max Flow Rate: 10 L/hr

• Max Pressure: 15 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (AMS PLUS)

• Pump Head Material: PVDF

• Seal Material: EPDM (Alkaline)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12 VDC / 24 VAC / 115 VAC / 230 VAC / Compressed Air

• Protection Rating: IP65
