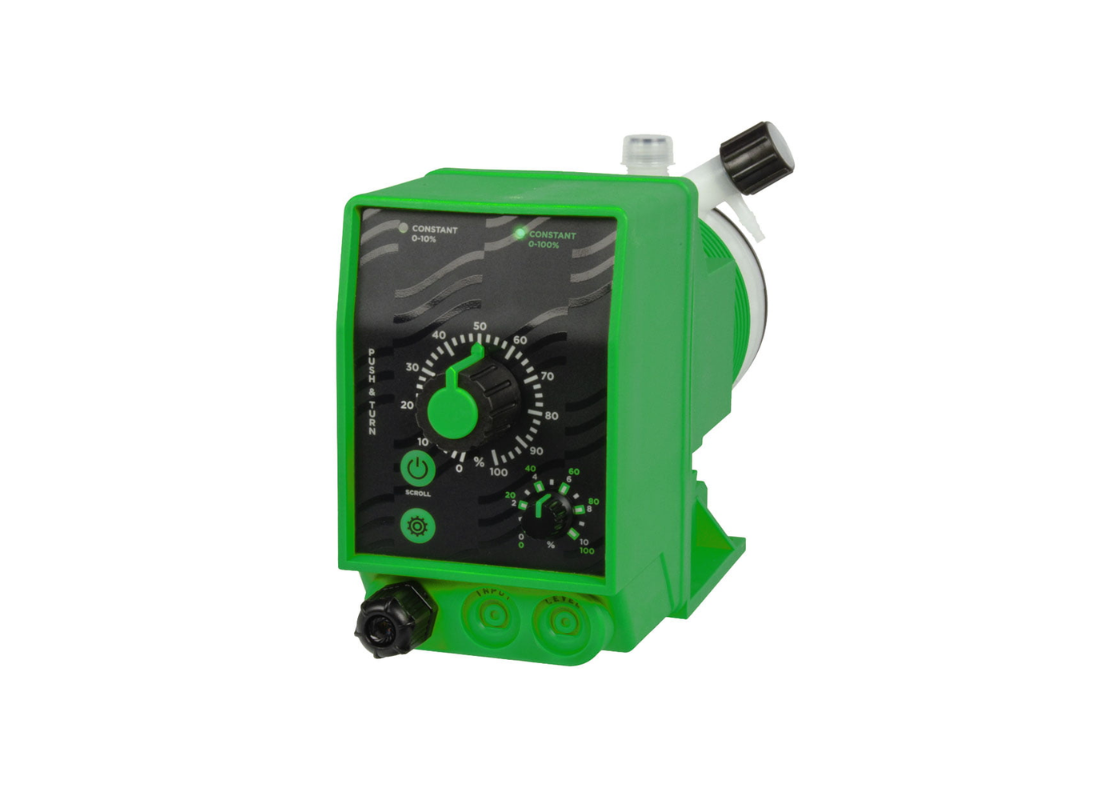

EMEC KCOPLUS 02-18-EPDM Heavy-Duty Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 18 l/hr @ 20 bar, PVDF pump head, analog control, includes installation kit

The EMEC KCOPLUS 02-18-EPDM is a heavy-duty solenoid-driven chemical dosing pump from the K Series, designed for high-performance dosing in demanding industrial environments. Its foot-mounted configuration ensures stability and reliable operation for continuous-duty applications.

Delivering up to 18 L/h at 20 bar, this model is ideal for medium-to-high pressure dosing systems. The PVDF pump head provides excellent resistance to a wide range of chemicals, while the EPDM (Alkaline) seals are specifically suited for alkaline and water-based chemicals, ensuring long-term durability and consistent performance.

The K PLUS analog control system enables flexible dosing adjustment, including constant dosing, multiplier/divider functions, and compatibility with mA signal input. This allows precise and adaptable dosing control based on system requirements.

Engineered with a high-strength PTFE diaphragm and solenoid-driven mechanism, the KCOPLUS series ensures accurate dosing, low maintenance, and extended service life.

Key Features

• Analog adjustable dosing control

• 18 L/h flow capacity at 20 bar

• PVDF pump head for high chemical resistance

• EPDM (Alkaline) seals for alkaline chemical compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Heavy-duty foot-mounted design

Applications

• Water treatment & disinfection

• Alkaline chemical dosing systems

• Industrial chemical processing

• Cooling towers

• Wastewater treatment

• Chemical injection systems

Technical Specifications

• Model: KCOPLUS 02-18-EPDM

• Max Flow Rate: 18 L/hr

• Max Pressure: 20 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: EPDM (Alkaline)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
