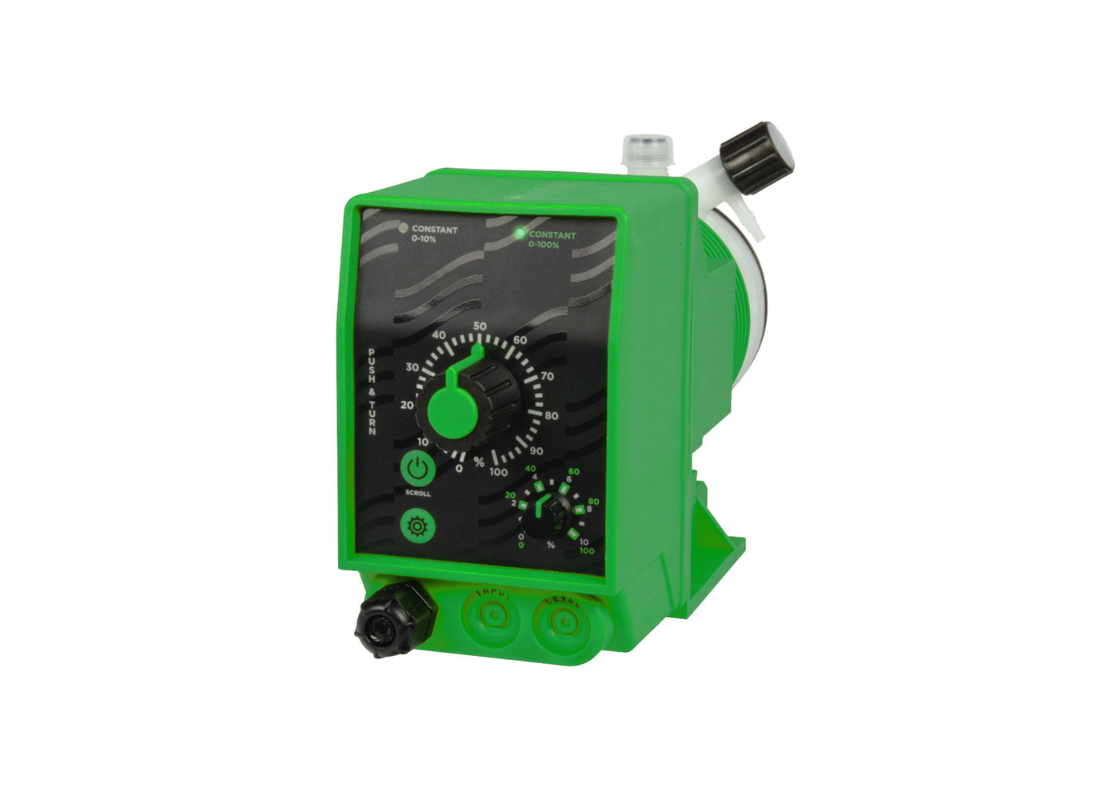

EMEC KCOPLUS 02-18-VF Heavy-Duty Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 18 l/hr @ 20 bar, PVDF pump head, analog control, includes installation kit

The EMEC KCOPLUS 02-18-VF is a robust solenoid-driven chemical dosing pump from the K Series, engineered for high-performance dosing in demanding industrial environments. Designed with a foot-mounted configuration, it ensures stable installation and reliable operation across continuous dosing applications.

Delivering up to 18 L/h at 20 bar, this pump is ideal for medium-to-high pressure chemical injection systems. The PVDF pump head provides excellent resistance against aggressive chemicals, while the VF Viton (Acidic) seals make it perfectly suited for acidic dosing applications, ensuring long service life and chemical compatibility.

The K PLUS analog control system allows flexible dosing adjustments, including constant dosing, multiplier and divider functions, and mA signal input compatibility. This ensures precise and adaptable chemical injection based on system requirements.

Equipped with a high-strength PTFE diaphragm and electronic flow rate control, the KCOPLUS series offers consistent dosing accuracy, durability, and minimal maintenance requirements.

Key Features

• Analog adjustable dosing control

• 18 L/h flow capacity at 20 bar

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for acidic applications

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Heavy-duty foot-mounted design

Applications

• Acid dosing systems

• Water treatment & disinfection

• Industrial chemical processing

• Cooling towers

• Wastewater treatment

• Chemical injection systems

Technical Specifications

• Model: KCOPLUS 02-18-VF

• Max Flow Rate: 18 L/h

• Max Pressure: 20 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
