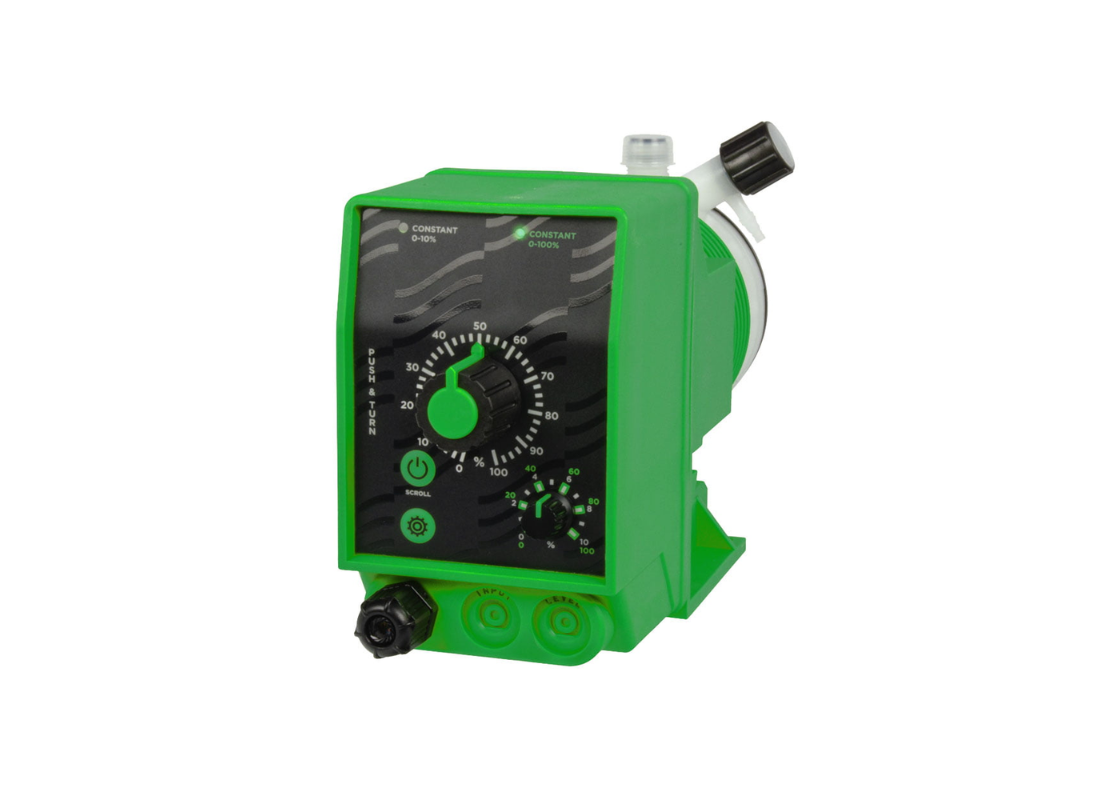

EMEC KCOPLUS 05-10-VF Heavy-Duty Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 10 l/hr @ 5 bar, PVDF pump head, analog control, includes installation kit

The EMEC KCOPLUS 05-10-VF is a heavy-duty solenoid-driven chemical dosing pump from the K Series, designed for reliable and precise dosing in industrial and water treatment applications. Its robust foot-mounted design ensures stable installation and long-term durability in demanding environments.

With a dosing capacity of up to 10 L/h at 5 bar, this model is ideal for medium-duty dosing systems requiring consistent and accurate chemical injection. The PVDF pump head offers excellent chemical resistance, while the VF Viton (Acidic) seals are specifically suited for acidic and aggressive chemical applications.

The K PLUS analog control system provides flexible dosing adjustment with constant dosing, multiplier/divider functions, and mA signal compatibility. This allows users to tailor dosing performance based on process requirements with ease.

Built with a high-strength PTFE diaphragm and a solenoid-driven mechanism, the KCOPLUS series ensures precision dosing, minimal maintenance, and extended operational life.

Key Features

• Analog adjustable dosing control

• 10 L/h flow capacity at 5 bar

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for acidic chemical compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Heavy-duty foot-mounted construction

Applications

• Water treatment & disinfection

• Acid dosing systems

• Industrial chemical processing

• Cooling towers

• Wastewater treatment

• Chemical injection systems

Technical Specifications

• Model: KCOPLUS 05-10-VF

• Max Flow Rate: 10 L/hr

• Max Pressure: 5 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
