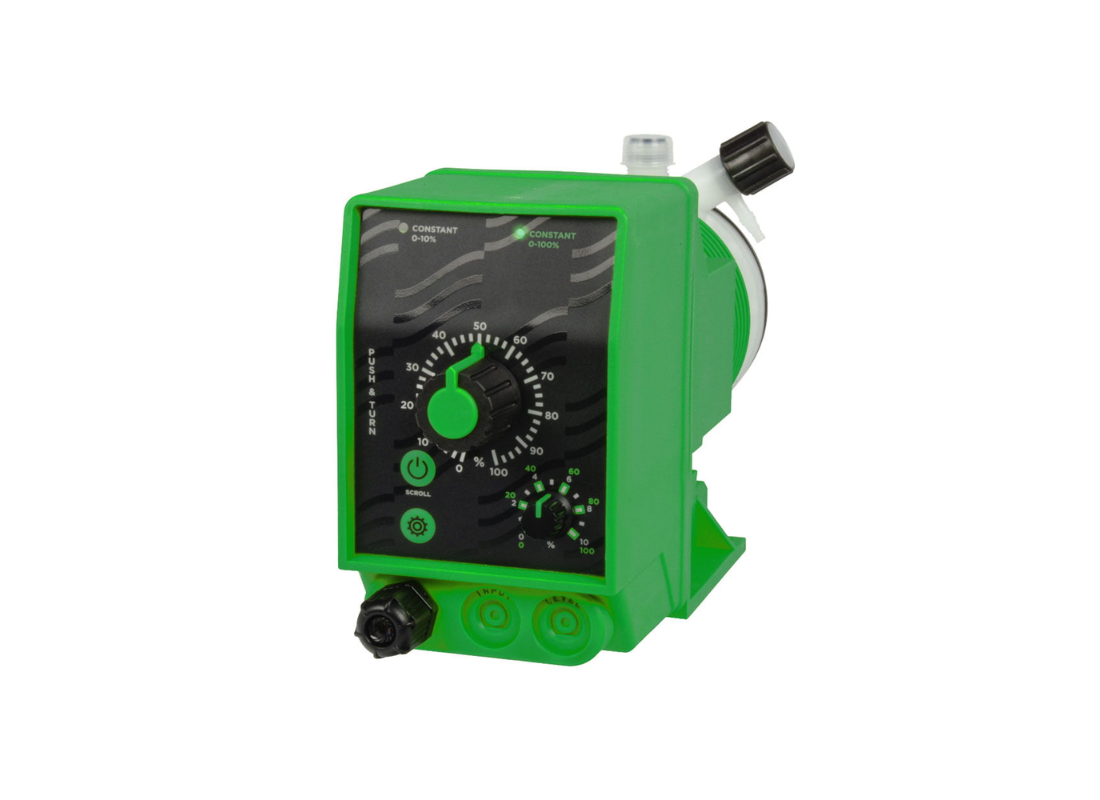

EMEC KCOPLUS 10-05-EPDM Heavy-Duty Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 5 l/hr @ 10 bar, PVDF pump head, analog control, includes installation kit

The EMEC KCOPLUS 10-05-EPDM is a heavy-duty solenoid-driven chemical dosing pump from the K Series, engineered for precise and consistent dosing in industrial and water treatment environments. Its robust foot-mounted design ensures stability and reliability for continuous-duty applications.

Delivering up to 5 L/h at 10 bar, this model is ideal for low-flow, high-pressure dosing requirements. The PVDF pump head offers excellent chemical resistance, while EPDM (Alkaline) seals make it suitable for alkaline and compatible chemical dosing, ensuring long-term durability and performance.

The K PLUS analog control system allows flexible and accurate dosing adjustment, including constant dosing, multiplier/divider modes, and compatibility with mA input signals. This provides reliable and adaptable operation across varying process conditions.

Built with a high-strength PTFE diaphragm and solenoid-driven mechanism, the pump ensures consistent dosing accuracy, minimal maintenance, and extended service life.

Key Features

• Analog adjustable dosing control

• 5 L/h flow capacity at 10 bar

• PVDF pump head for high chemical resistance

• EPDM (Alkaline) seals for alkaline compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Heavy-duty foot-mounted construction

Applications

• Alkaline chemical dosing

• Water treatment & disinfection

• Cooling towers

• Industrial processing

• Wastewater treatment

• Chemical injection systems

Technical Specifications

• Model: KCOPLUS 10-05-EPDM

• Max Flow Rate: 5 L/hr

• Max Pressure: 10 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: EPDM (Alkaline)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
