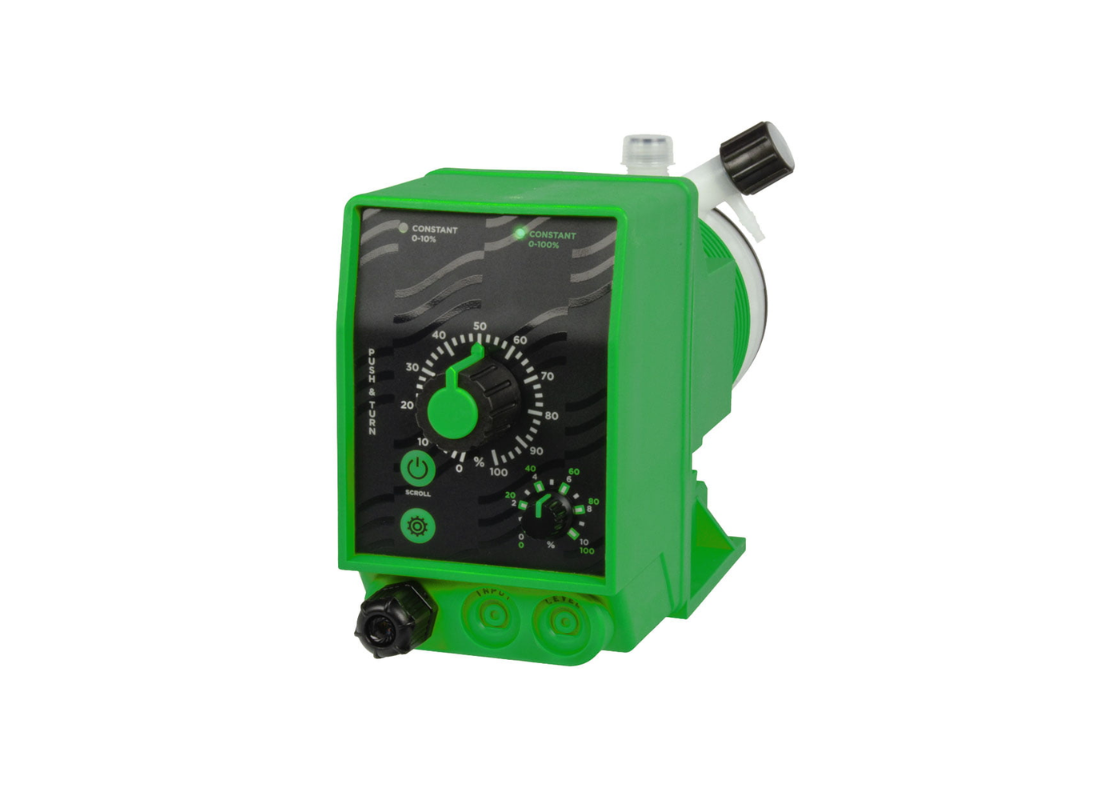

EMEC KCOPLUS 10-05-VF Heavy-Duty Foot Mounted Electronic Chemical Dosing Pump
EMEC KCOPLUS 10-05-VF Heavy-Duty Foot Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC KCOPLUS 10-05-VF Heavy-Duty Foot Mounted Electronic Chemical D...
EMEC KCOPLUS 10-05-VF Heavy-Duty Foot Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
Metering pump, foot mount, 5 l/hr @ 10 bar, PVDF pump head, analog control, includes installation kit
The EMEC KCOPLUS 10-05-VF is a heavy-duty solenoid-driven chemical dosing pump from the K Series, designed for precise and reliable dosing in demanding industrial and water treatment applications. Its foot-mounted configuration ensures stable installation and consistent operation in continuous-duty environments.
With a dosing capacity of up to 5 L/h at 10 bar, this model is ideal for applications requiring lower flow with higher pressure. The PVDF pump head provides excellent resistance to aggressive chemicals, while the VF Viton (Acidic) seals are specifically suited for acidic chemical dosing, ensuring durability and long service life.
The K PLUS analog control system enables flexible dosing adjustment, including constant dosing, multiplier/divider functions, and compatibility with mA signal input. This allows accurate and adaptable dosing performance based on system requirements.
Built with a high-strength PTFE diaphragm and solenoid-driven mechanism, the KCOPLUS series delivers consistent dosing accuracy, low maintenance, and extended operational life.

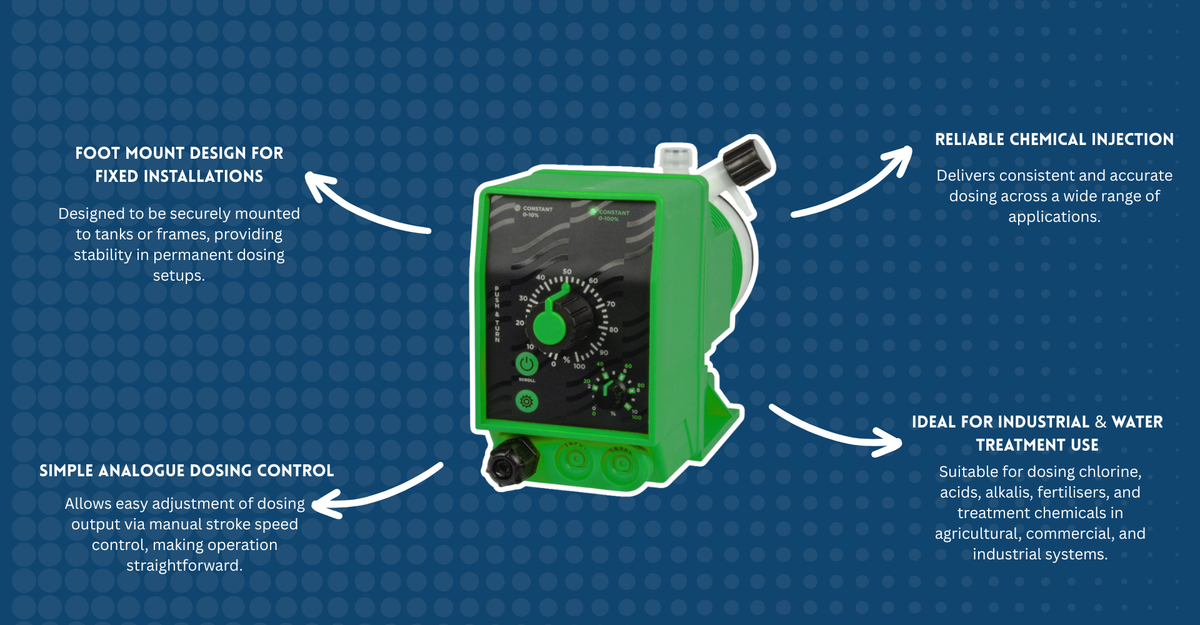

Key Features
- Analog adjustable dosing control
- 5 L/h flow capacity at 10 bar
- PVDF pump head for superior chemical resistance
- VF Viton (Acidic) seals for acidic compatibility
- Solenoid-driven dosing mechanism
- Mechanical stroke adjustment (0–100%)
- Manual or self-venting options
- Heavy-duty foot-mounted construction
Applications
- Acid dosing systems
- Water treatment & disinfection
- Industrial chemical processing
- Cooling towers
- Wastewater treatment
- Chemical injection systems
Technical Specifications
- Model: KCOPLUS 10-05-VF
- Max Flow Rate: 5 L/hr
- Max Pressure: 10 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Analog (K PLUS)
- Pump Head Material: PVDF
- Seal Material: VF Viton (Acidic)
- Diaphragm: PTFE
- Mounting: Foot mounted
- Venting: Manual or Self (optional)
- Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC
- Protection Rating: IP65
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC KCO PLUS Series Analogue Foot Mount Chemical Dosing Pumps
The EMEC KCO PLUS Series is a range of analogue solenoid-driven dosing pumps with foot-mounted design, built for reliable and precise chemical injection in fixed installations. Designed to be mounted securely on tanks, skids, or dosing panels, the KCO PLUS range offers stable operation and easy access for adjustment and maintenance.
These pumps are commonly used in water treatment systems, industrial dosing setups, irrigation systems, pools, and sanitation applications where a robust and permanently installed dosing solution is required. With simple analogue control, adjustable output, and durable construction, the KCO PLUS Series provides a dependable and cost-effective solution for consistent chemical dosing.
Compare the VMF Series Range
Compare the full EMEC VMF range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | EMEC | EMEC | EMEC | EMEC | EMEC |
| Model Code | |||||
| Model Code | |||||
| Price | |||||
| Price |
Regular price
$1,865.00 AUD
Unit price
|
Regular price
$1,865.00 AUD
Unit price
|
Regular price
$1,865.00 AUD
Unit price
|
Regular price
$1,865.00 AUD
Unit price
|
Regular price
$1,865.00 AUD
Unit price
|
| Flow Range | |||||
| Flow Range | |||||
| Dosing Ratio | |||||
| Dosing Ratio | |||||
| Pressure Range | |||||
| Pressure Range | |||||
| Seal Type | |||||
| Seal Type | |||||
| pH Range | |||||
| pH Range | |||||
| Connection Size | |||||
| Connection Size | |||||
| Body Material | |||||
| Body Material | |||||
How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
