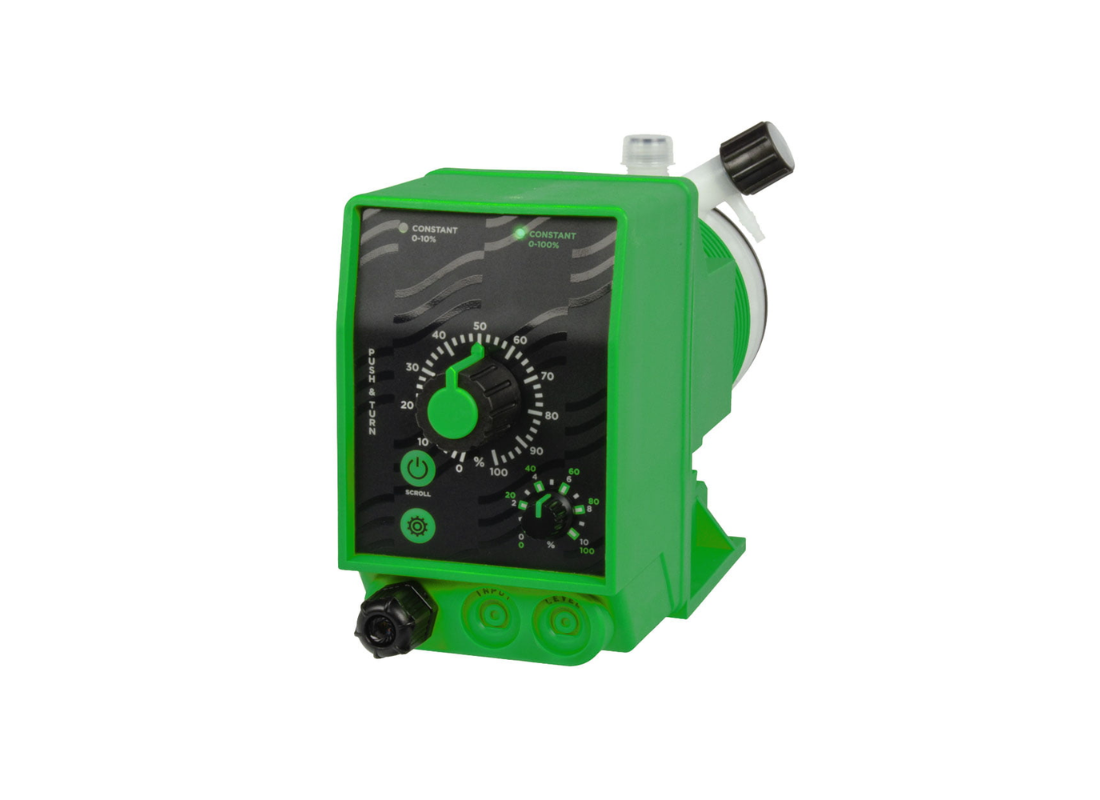

EMEC KCOPLUS 18-02-EPDM Heavy-Duty Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 2 l/hr @ 18 bar, PVDF pump head, analog control, includes installation kit

The EMEC KCOPLUS 18-02-EPDM is a high-pressure solenoid-driven chemical dosing pump from the K Series, designed for precise and reliable dosing in demanding industrial and water treatment applications. Its heavy-duty foot-mounted design ensures stability and consistent performance in continuous-duty environments.

With a dosing capacity of up to 2 L/h at 18 bar, this model is ideal for low-flow, high-pressure injection systems. The PVDF pump head provides excellent resistance to aggressive and corrosive chemicals, while EPDM (Alkaline) seals ensure compatibility with alkaline and water-based solutions, delivering long-lasting durability.

The K PLUS analog control system allows flexible dosing adjustment, including constant dosing, multiplier/divider functions, and mA signal compatibility. This ensures accurate and adaptable chemical dosing tailored to system requirements.

Built with a high-strength PTFE diaphragm and solenoid-driven mechanism, the KCOPLUS series offers consistent dosing accuracy, minimal maintenance, and extended service life.

Key Features

• Analog adjustable dosing control

• 2 L/h flow capacity at 18 bar

• PVDF pump head for high chemical resistance

• EPDM (Alkaline) seals for alkaline compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Heavy-duty foot-mounted construction

Applications

• Water treatment & disinfection

• Alkaline chemical dosing systems

• High-pressure dosing applications

• Cooling towers

• Industrial processing

• Wastewater treatment

Technical Specifications

• Model: KCOPLUS 18-02-EPDM

• Max Flow Rate: 2 L/hr

• Max Pressure: 18 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: EPDM (Alkaline)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
