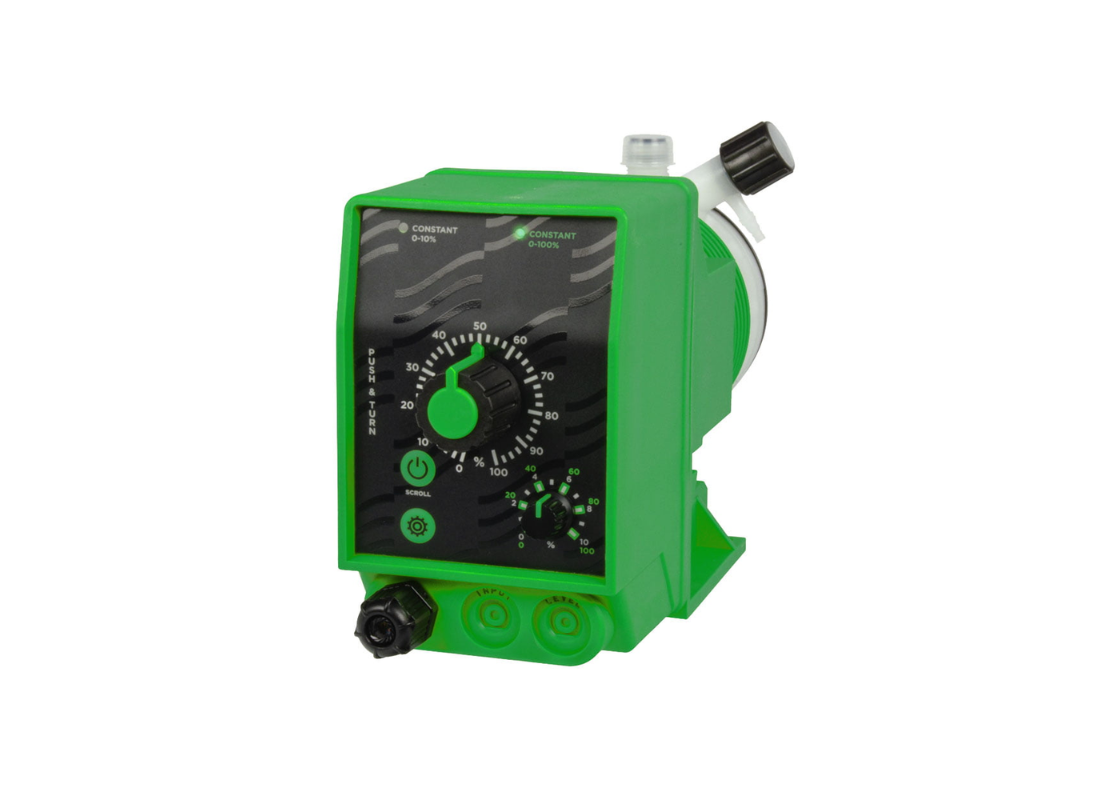

EMEC KCOPLUS 18-02-VF Heavy-Duty Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 2 l/hr @ 18 bar, PVDF pump head, analog control, includes installation kit

The EMEC KCOPLUS 18-02-VF is a high-pressure solenoid-driven chemical dosing pump from the K Series, designed for precise and reliable dosing in demanding industrial and water treatment applications. Its heavy-duty foot-mounted design ensures stability and consistent performance in continuous-duty environments.

With a dosing capacity of up to 2 L/h at 18 bar, this model is ideal for low-flow, high-pressure injection systems. The PVDF pump head provides excellent resistance to aggressive and corrosive chemicals, while the VF Viton (Acidic) seals are specifically suited for acidic chemical dosing, ensuring long service life and chemical compatibility.

The K PLUS analog control system allows flexible dosing adjustment, including constant dosing, multiplier/divider functions, and mA signal compatibility. This ensures accurate and adaptable chemical dosing tailored to system requirements.

Built with a high-strength PTFE diaphragm and solenoid-driven mechanism, the KCOPLUS series offers consistent dosing accuracy, minimal maintenance, and extended service life.

Key Features

• Analog adjustable dosing control

• 2 L/h flow capacity at 18 bar

• PVDF pump head for high chemical resistance

• VF Viton (Acidic) seals for acidic compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Heavy-duty foot-mounted construction

Applications

• Acid dosing systems

• Water treatment & disinfection

• High-pressure dosing applications

• Cooling towers

• Industrial processing

• Wastewater treatment

Technical Specifications

• Model: KCOPLUS 18-02-VF

• Max Flow Rate: 2 L/hr

• Max Pressure: 18 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
