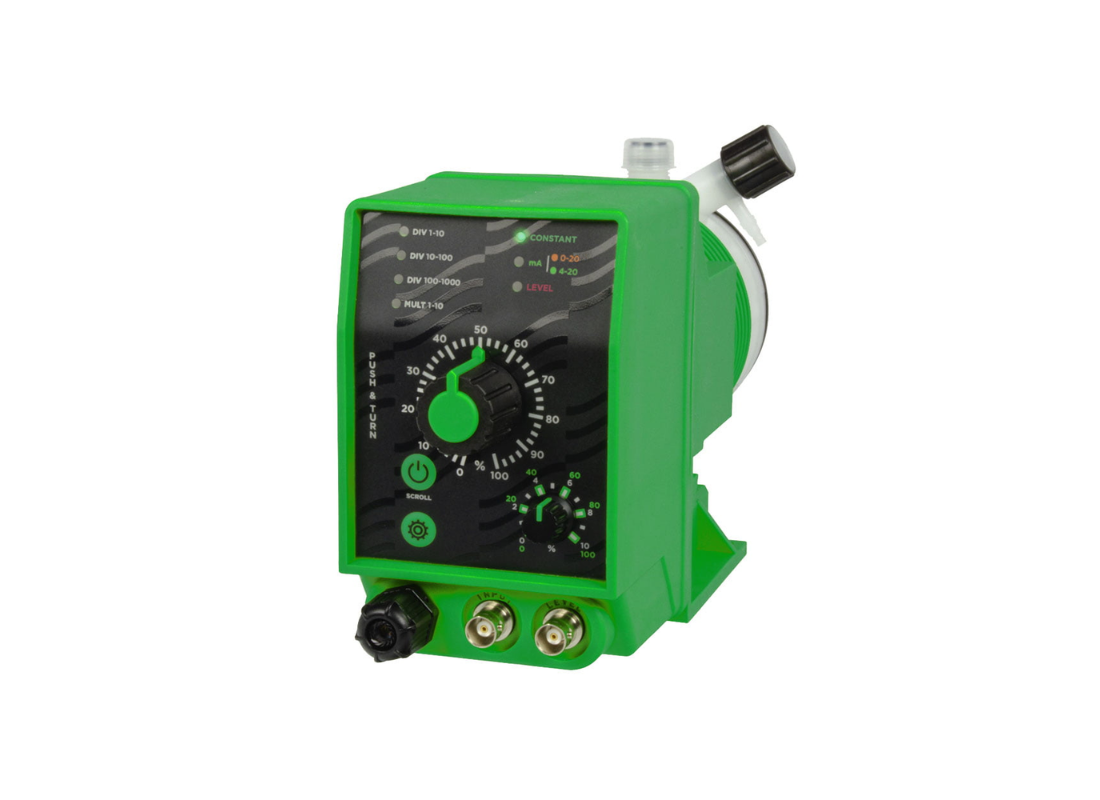

EMEC KPLUS 02-18-VF Standard Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 18 l/hr @ 2 bar, PVDF pump head, analog control, includes installation kit

The EMEC KPLUS 02-18-VF is a reliable solenoid-driven electronic dosing pump from the K Series, designed for accurate and consistent chemical dosing in water treatment and industrial applications. Its standard foot-mounted configuration ensures stable installation and dependable operation in continuous-duty environments.

Delivering a flow rate of up to 18 L/h at 2 bar, this model is ideal for higher flow, lower pressure dosing systems. The PVDF pump head offers excellent resistance to aggressive and corrosive chemicals, while the VF Viton (Acidic) seals provide superior compatibility with acidic solutions, ensuring durability and long operational life.

The K PLUS analog control system enables flexible dosing adjustments, including constant dosing, multiplier and divider functions, and mA signal input compatibility. This allows precise control over chemical injection rates based on system requirements.

Built with a high-strength PTFE diaphragm and robust solenoid-driven mechanism, the pump ensures accurate dosing performance, reduced maintenance, and long-term reliability.

Key Features

• Analog adjustable dosing control

• 18 L/h flow capacity at 2 bar

• PVDF pump head for chemical resistance

• VF Viton (Acidic) seals for acidic dosing

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Standard foot-mounted design

Applications

• Acid dosing systems

• Water treatment & disinfection

• Cooling towers

• Industrial processing

• Wastewater treatment

• Chemical dosing systems

Technical Specifications

• Model: KPLUS 02-18-VF

• Max Flow Rate: 18 L/hr

• Max Pressure: 2 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
