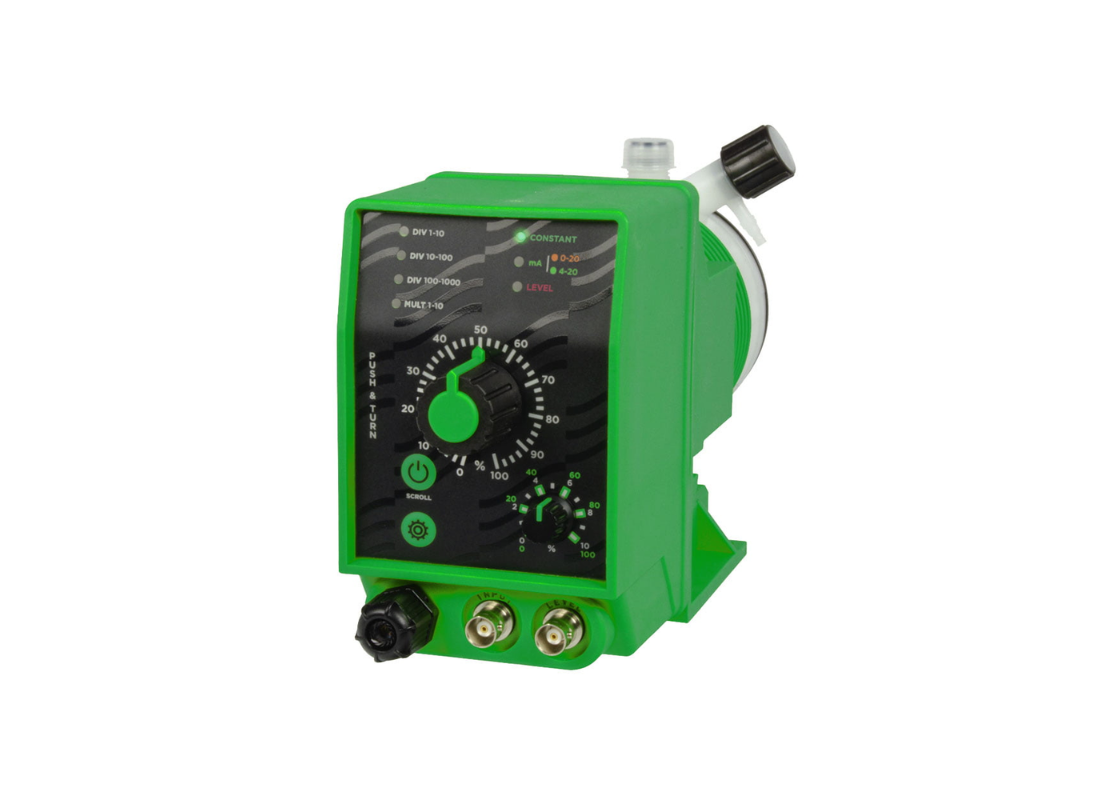

EMEC KPLUS 05-10-VF Standard Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 10 l/hr @ 5 bar, PVDF pump head, analog control, includes installation kit

The EMEC KPLUS 05-10-VF is a solenoid-driven electronic dosing pump from the K Series, designed for precise and reliable chemical injection across a wide range of industrial and water treatment applications. Its standard foot-mounted design ensures stable installation and dependable performance in continuous-duty environments.

This model delivers a flow rate of up to 10 L/h at 5 bar, making it ideal for moderate flow and pressure dosing requirements. The PVDF pump head provides excellent chemical resistance, while VF Viton (Acidic) seals ensure compatibility with acidic chemicals and aggressive solutions.

The K PLUS analog control system allows flexible dosing adjustment, including constant dosing, multiplier and divider modes, and compatibility with mA signal inputs. This ensures accurate and adaptable dosing performance tailored to system needs.

Constructed with a high-strength PTFE diaphragm and a robust solenoid mechanism, the pump ensures long service life, consistent dosing accuracy, and reduced maintenance requirements.

Key Features

• Analog adjustable dosing control

• 10 L/h flow capacity at 5 bar

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for acidic chemical compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Standard foot-mounted design

Applications

• Acid dosing systems

• Water treatment & disinfection

• pH correction systems

• Industrial chemical processing

• Cooling towers

• Wastewater treatment

Technical Specifications

• Model: KPLUS 05-10-VF

• Max Flow Rate: 10 L/hr

• Max Pressure: 5 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
