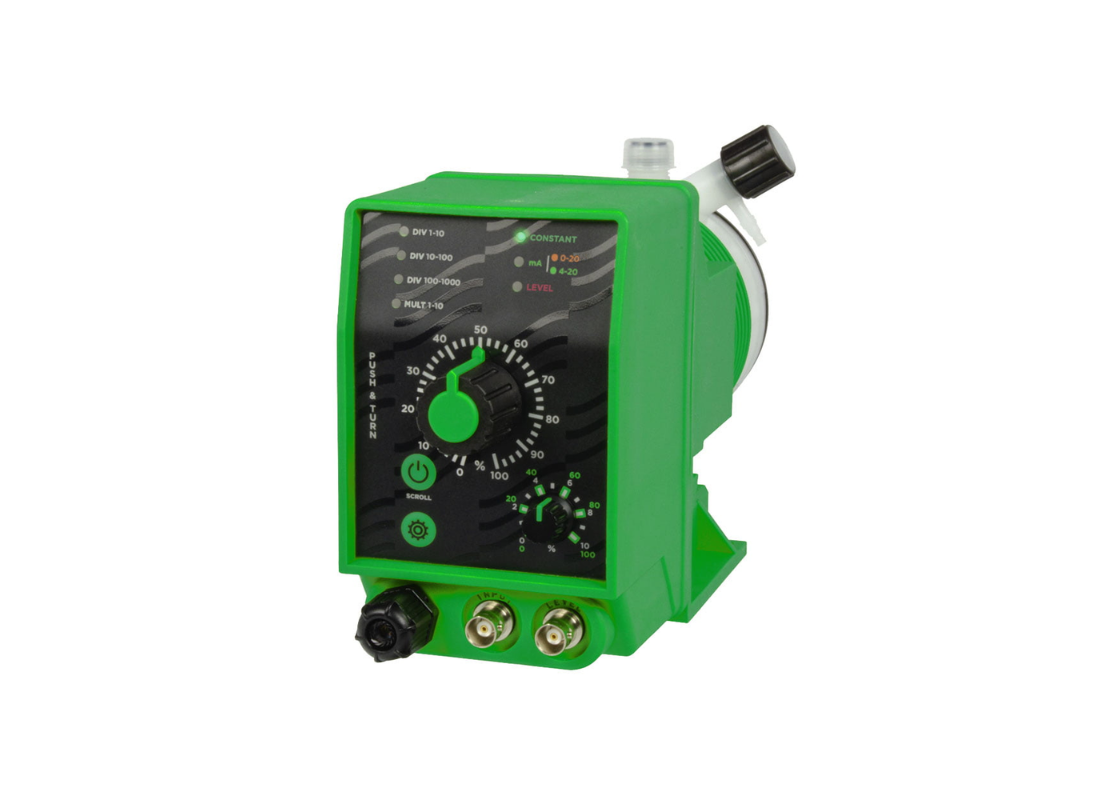

EMEC KPLUS 10-05-EPDM Standard Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 5 l/hr @ 10 bar, PVDF pump head, analog control, includes installation kit

The EMEC KPLUS 10-05-EPDM is a solenoid-driven electronic dosing pump from the K Series, designed for accurate and reliable chemical dosing in industrial and water treatment applications. Its standard foot-mounted configuration ensures stable installation and consistent performance in continuous-duty environments.

Delivering up to 5 L/h at 10 bar, this model is ideal for higher-pressure dosing systems with moderate flow requirements. The PVDF pump head offers excellent resistance to a wide range of chemicals, while EPDM (Alkaline) seals ensure compatibility with alkaline and water-based solutions, providing long-term durability and performance.

The K PLUS analog control system enables flexible dosing adjustment, including constant dosing, multiplier/divider functions, and mA signal input compatibility. This allows precise and adaptable control of dosing rates based on system needs.

Built with a high-strength PTFE diaphragm and a robust solenoid-driven mechanism, the pump ensures consistent dosing accuracy, reduced maintenance, and extended service life.

Key Features

• Analog adjustable dosing control

• 5 L/h flow capacity at 10 bar

• PVDF pump head for high chemical resistance

• EPDM (Alkaline) seals for alkaline compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Standard foot-mounted design

Applications

• Water treatment & disinfection

• Alkaline chemical dosing systems

• pH correction systems

• Cooling towers

• Industrial processing

• Wastewater treatment

Technical Specifications

• Model: KPLUS 10-05-EPDM

• Max Flow Rate: 5 L/hr

• Max Pressure: 10 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: EPDM (Alkaline)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
