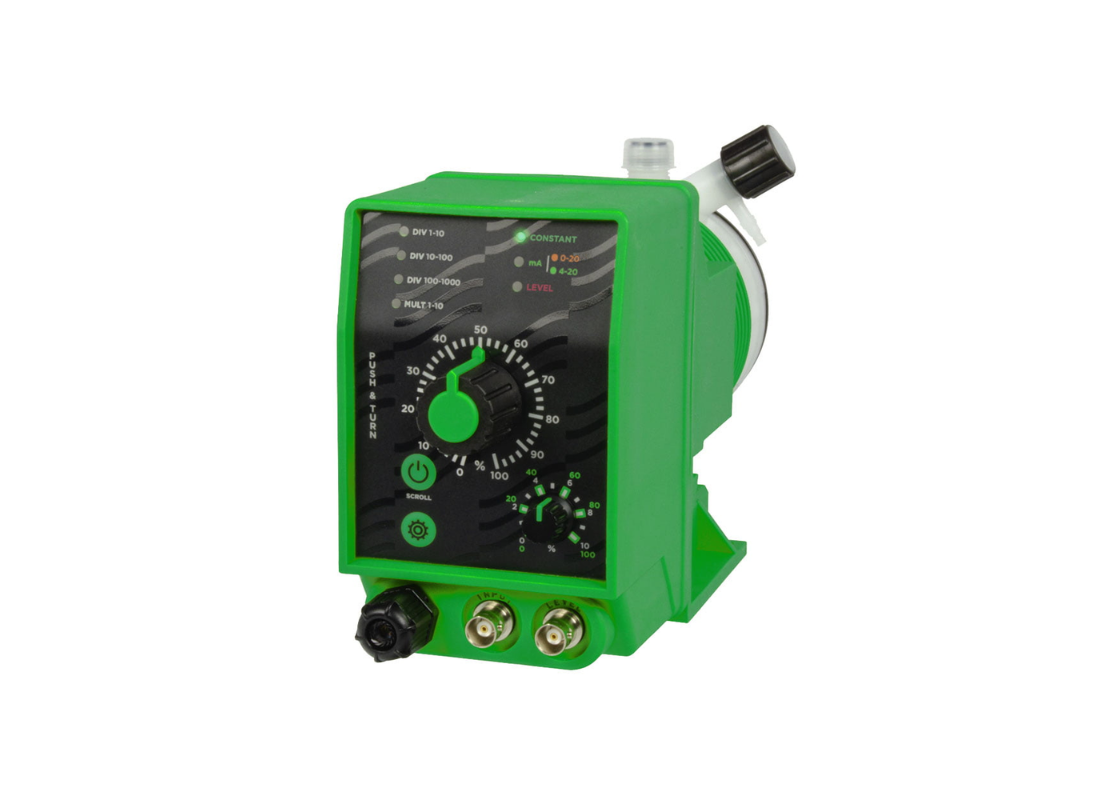

EMEC KPLUS 10-05-VF Standard Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 5 l/hr @ 10 bar, PVDF pump head, analog control, includes installation kit

The EMEC KPLUS 10-05-VF is a solenoid-driven electronic dosing pump from the K Series, designed for precise and reliable chemical injection in demanding industrial and water treatment applications. Its foot-mounted configuration provides stable installation and consistent performance in continuous-duty systems.

Delivering up to 5 L/h at 10 bar, this model is ideal for higher-pressure dosing requirements with moderate flow rates. The PVDF pump head ensures excellent chemical resistance, while VF Viton (Acidic) seals provide superior compatibility with acidic and aggressive chemicals, ensuring long service life and operational reliability.

The K PLUS analog control system allows flexible dosing adjustment, including constant dosing, multiplier/divider functions, and mA signal input compatibility. This provides accurate and adaptable dosing control across a wide range of applications.

Built with a high-strength PTFE diaphragm and a robust solenoid-driven mechanism, the pump ensures consistent dosing accuracy, low maintenance requirements, and extended operational durability.

Key Features

• Analog adjustable dosing control

• 5 L/h flow capacity at 10 bar

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for acidic chemical compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Standard foot-mounted design

Applications

• Water treatment & disinfection

• Acid dosing systems

• pH correction systems

• Cooling towers

• Industrial processing

• Wastewater treatment

Technical Specifications

• Model: KPLUS 10-05-VF

• Max Flow Rate: 5 L/hr

• Max Pressure: 10 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
