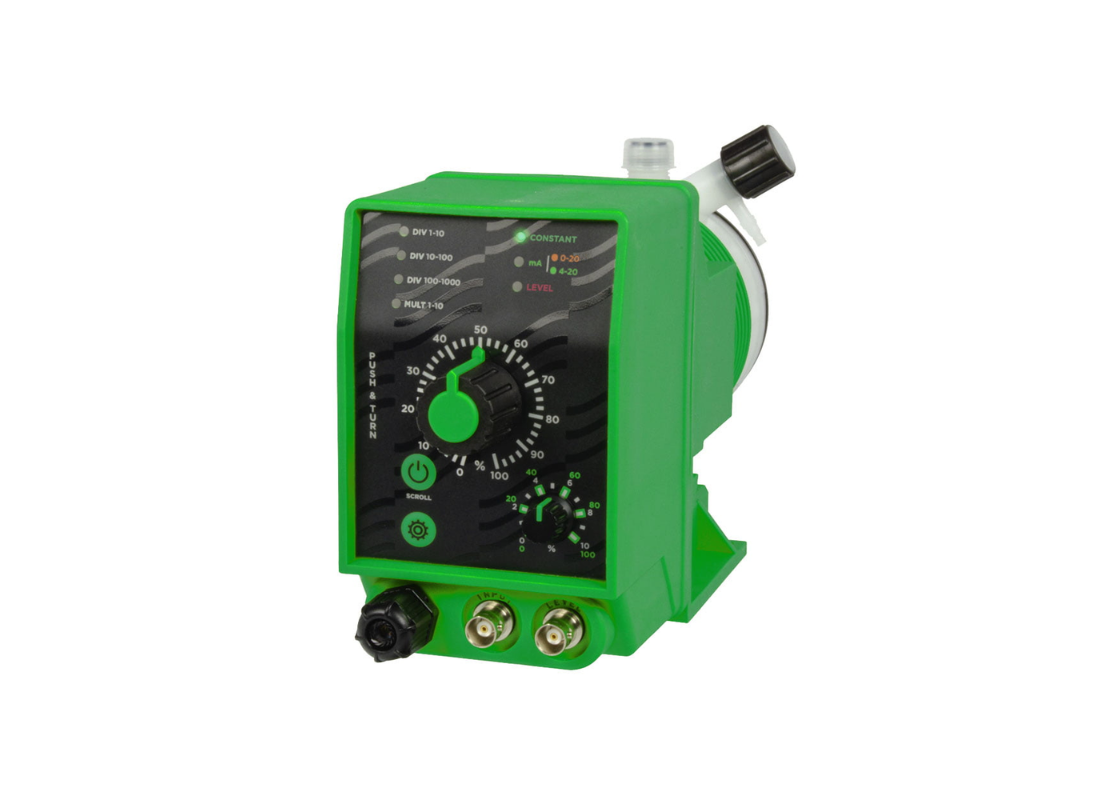

EMEC KPLUS 18-02-EPDM Standard Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 2 l/hr @ 18 bar, PVDF pump head, analog control, includes installation kit

The EMEC KPLUS 18-02-EPDM is a solenoid-driven electronic dosing pump from the K Series, engineered for precise and reliable chemical dosing in high-pressure applications. Its standard foot-mounted design ensures stable installation and dependable operation across industrial and water treatment environments.

With a dosing capacity of 2 L/h at 18 bar, this model is ideal for systems requiring lower flow rates at elevated pressures. The PVDF pump head provides excellent resistance to aggressive chemicals, while EPDM (Alkaline) seals ensure compatibility with alkaline and water-based solutions, enhancing durability and long-term performance.

The K PLUS analog control system allows flexible dosing adjustment, including constant dosing, multiplier/divider settings, and compatibility with mA signal input for proportional control. This makes it suitable for applications requiring consistent and adjustable dosing accuracy.

Built with a high-strength PTFE diaphragm and a robust solenoid-driven mechanism, the pump ensures reliable operation, minimal maintenance, and extended service life.

Key Features

• Analog adjustable dosing control

• 2 L/h flow capacity at 18 bar

• PVDF pump head for superior chemical resistance

• EPDM (Alkaline) seals for alkaline applications

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Standard foot-mounted design

Applications

• Water treatment & disinfection

• Alkaline chemical dosing systems

• High-pressure dosing applications

• pH correction systems

• Cooling towers

• Industrial processing

Technical Specifications

• Model: KPLUS 18-02-EPDM

• Max Flow Rate: 2 L/hr

• Max Pressure: 18 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: EPDM (Alkaline)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
