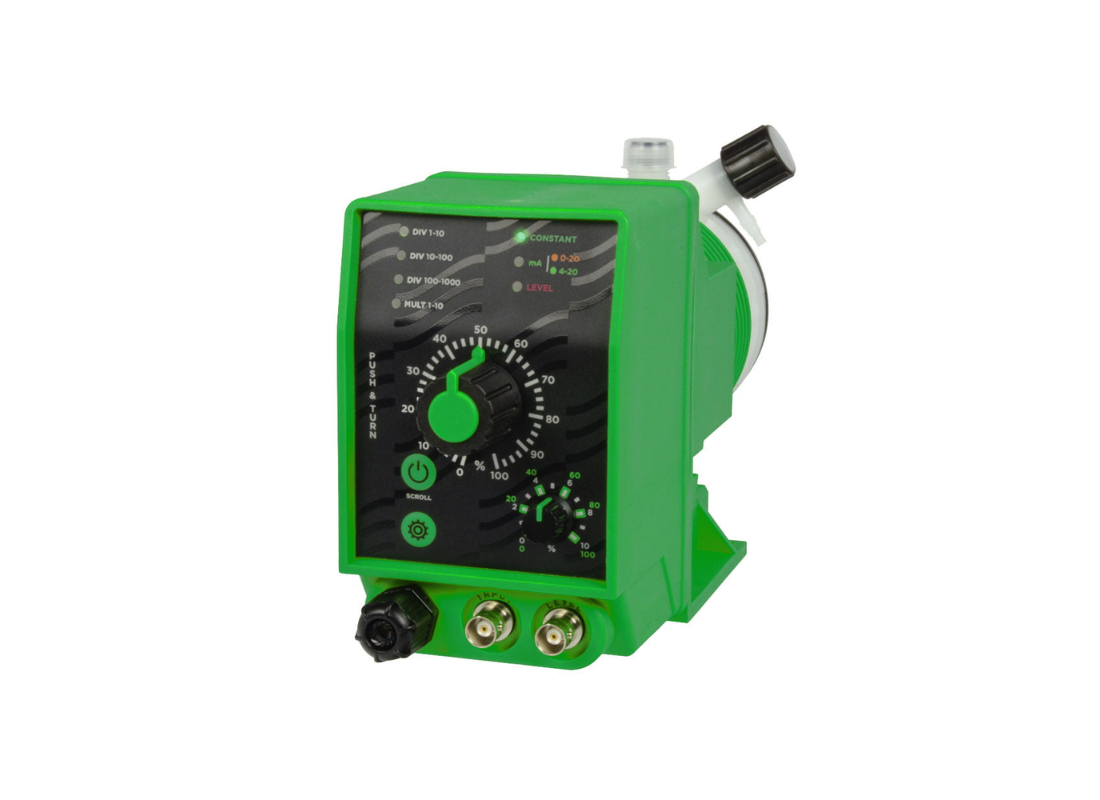

EMEC KPLUS 18-02-VF Standard Foot Mounted Electronic Chemical Dosing Pump

Metering pump, foot mount, 2 l/hr @ 18 bar, PVDF pump head, analog control, includes installation kit

The EMEC KPLUS 18-02-VF is a solenoid-driven electronic dosing pump from the K Series, designed for precise and reliable chemical dosing in demanding industrial environments. Its standard foot-mounted configuration ensures stable installation and consistent performance across water treatment and chemical processing systems.

Delivering a dosing capacity of 2 L/h at 18 bar, this model is ideal for high-pressure, low-flow applications. The PVDF pump head provides excellent resistance to aggressive chemicals, while VF Viton (Acidic) seals offer superior compatibility with acidic solutions, ensuring long service life and chemical durability.

The K PLUS analog control system enables flexible dosing adjustment, including constant dosing, multiplier/divider functions, and mA signal input for proportional control. This makes the pump suitable for applications requiring accurate and adaptable chemical injection.

Built with a high-strength PTFE diaphragm and a robust solenoid-driven mechanism, the KPLUS series ensures dependable operation with minimal maintenance requirements.

Key Features

• Analog adjustable dosing control

• 2 L/h flow capacity at 18 bar

• PVDF pump head for excellent chemical resistance

• VF Viton (Acidic) seals for acidic chemical compatibility

• Solenoid-driven dosing mechanism

• Mechanical stroke adjustment (0–100%)

• Manual or self-venting options

• Standard foot-mounted design

Applications

• Water treatment & disinfection

• Acid dosing systems

• Chemical processing industries

• pH correction (acidic dosing)

• Cooling towers

• Industrial dosing applications

Technical Specifications

• Model: KPLUS 18-02-VF

• Max Flow Rate: 2 L/hr

• Max Pressure: 18 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Analog (K PLUS)

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Foot mounted

• Venting: Manual or Self (optional)

• Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC

• Protection Rating: IP65
