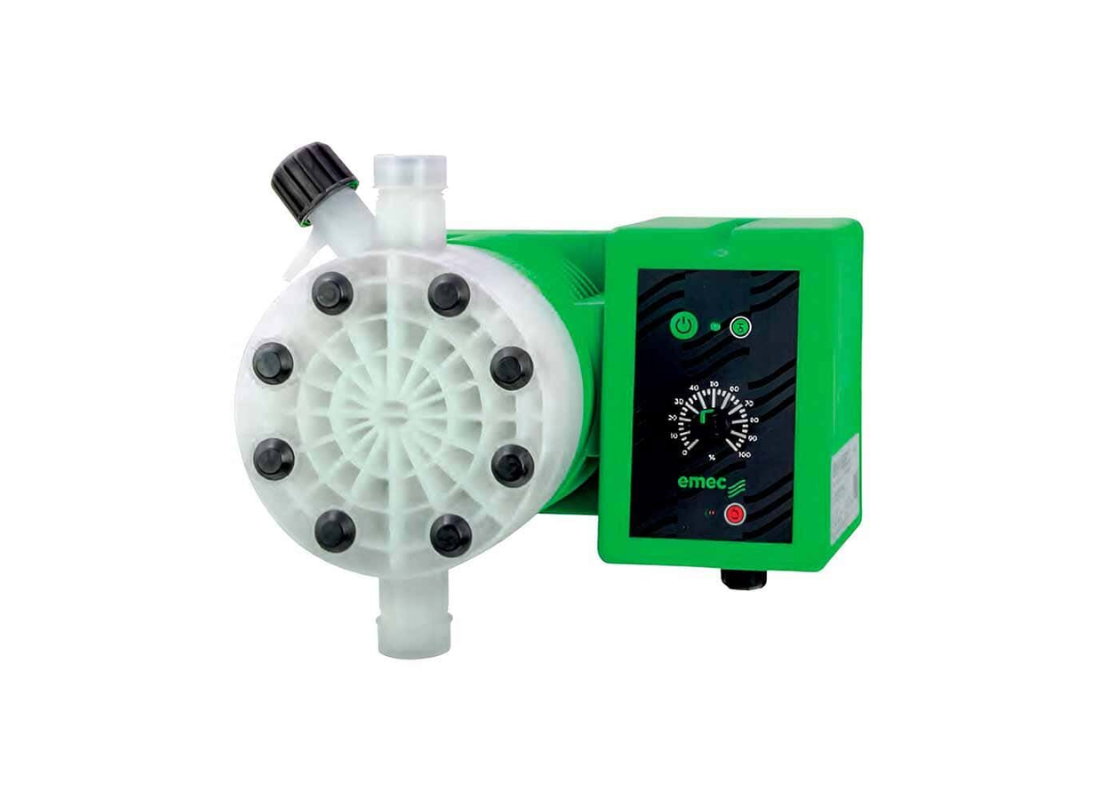

EMEC TACO 03-20-VF Entry-Level Self-Venting Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 20 l/hr @ 3 bar, PVDF self-venting (de-gassing) pump head for chemical dosing, fixed stroke length, adjustable speed, includes installation kit

The EMEC TACO 03-20-VF is an entry-level electronic dosing pump from the T Series, designed for precise and reliable chemical injection in water treatment and industrial applications. It offers a balanced combination of moderate flow and higher pressure capability, making it suitable for a wide range of dosing systems.

This model features a self-venting (de-gassing) PVDF pump head, specifically engineered for chemicals that release gas, such as sodium hypochlorite. The self-venting design prevents air locking, ensuring consistent dosing performance and uninterrupted operation.

Equipped with VF (FKM/Viton) seals, the pump provides excellent resistance to aggressive and acidic chemicals. Its high-resistance diaphragm enhances durability and ensures long operational life with minimal maintenance.

As a constant dosing pump, the TACO series offers simple manual control, making it a practical and cost-effective solution for standard dosing requirements. The wall-mounted design allows easy installation and integration into existing systems.

Key Features

• Entry-level adjustable dosing pump

• Self-venting (de-gassing) pump head for gas-forming chemicals
• PVDF pump head for superior chemical resistance

• VF (FKM/Viton) seals for harsh chemical compatibility

• Flow rate up to 20 L/hr

• Pressure capability up to 3 Bar

• High-resistance diaphragm for long service life

• Simple manual control operation

• Compact wall-mounted design

Applications

• Chlorine dosing systems

• Water treatment & disinfection

• Chemical dosing systems

• Cooling towers

• Industrial process dosing

• Swimming pools & sanitation

Technical Specifications

• Model: TACO 03-20-VF

• Max Flow Rate: 20 L/hr

• Max Pressure: 3 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Constant dosing (manual)

• Pump Head Material: PVDF (Self-venting)

• Seal Material: VF (FKM/Viton)

• Diaphragm: High-resistance diaphragm

• Mounting: Wall mounted

• Venting: Self-venting (de-gassing)

• Power Supply: 230V AC

• Protection Rating: IP65
