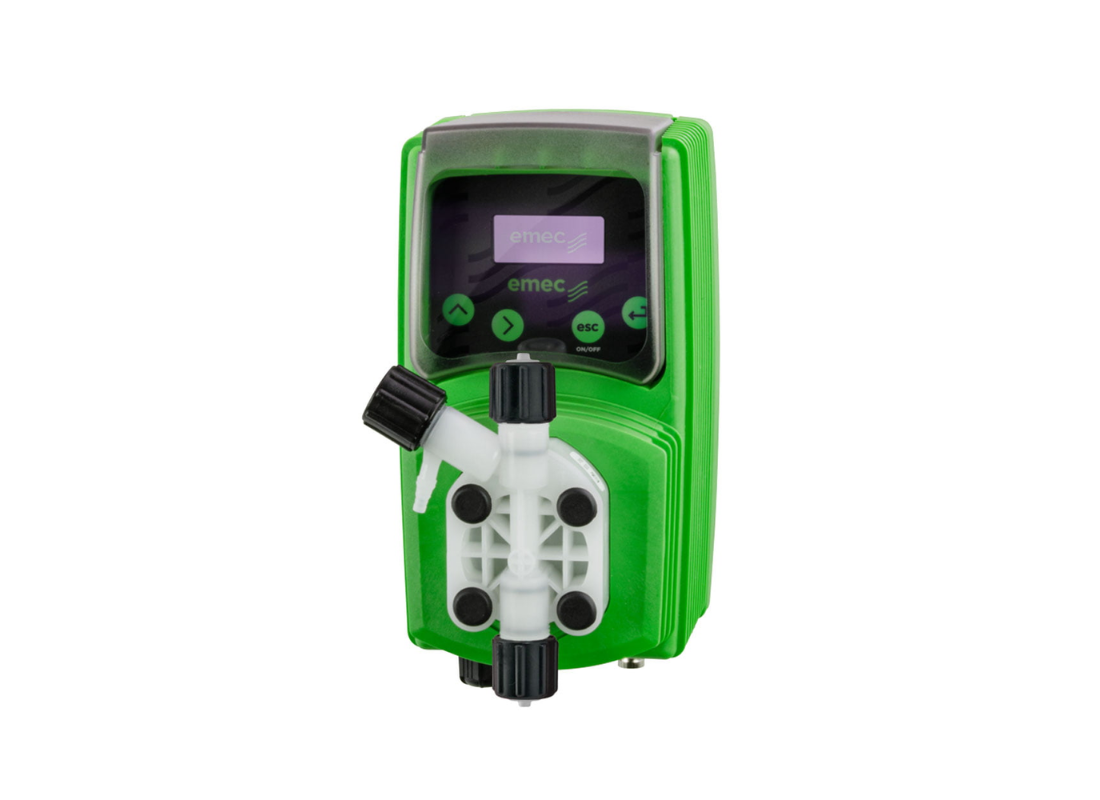

EMEC VAMF 02-12-VF Digital Self-Venting Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 12 l/hr, PVDF self-venting (de-gassing) pump head, digital multifunction control, includes installation kit

The EMEC VAMF 02-12-VF is a digital multifunction dosing pump from the V Series, designed for precise and flexible chemical dosing in water treatment and industrial applications. It combines advanced control capabilities with reliable solenoid-driven performance, making it ideal for systems requiring accurate and responsive dosing.

This model features a self-venting (de-gassing) PVDF pump head, specifically engineered for chemicals that release gas such as sodium hypochlorite. The self-venting design prevents air lock, ensuring continuous and consistent dosing without interruptions.

Equipped with VF (FKM/Viton) seals, the pump offers excellent chemical resistance against aggressive and acidic media. The integrated digital controller allows multiple dosing modes including proportional, pulse-based, and manual operation, providing versatility across a wide range of applications.

The V Series is designed for wall-mounted installation and offers a compact, user-friendly interface with electronic adjustment of dosing parameters, ensuring high accuracy and ease of use.

Key Features

• Digital multifunction dosing pump

• Self-venting (de-gassing) pump head for gas-forming chemicals

• PVDF pump head for superior chemical resistance

• VF (FKM/Viton) seals for harsh chemical compatibility

• Flow rate up to 12 L/hr

• Electronic flow rate adjustment

• Multiple dosing modes (proportional, pulse, manual)

• High-strength PTFE diaphragm

• Compact wall-mounted design

• Reliable solenoid-driven operation

Applications

• Water treatment & disinfection

• Chlorine dosing systems

• Swimming pools & sanitation

• Cooling towers

• Industrial chemical dosing

• Process water treatment

Technical Specifications

• Model: VAMF 02-12-VF

• Max Flow Rate: 12 L/hr

• Max Pressure: 2 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF (Self-venting)

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Self-venting (de-gassing)

• Power Supply: 100–240V AC

• Protection Rating: IP65
