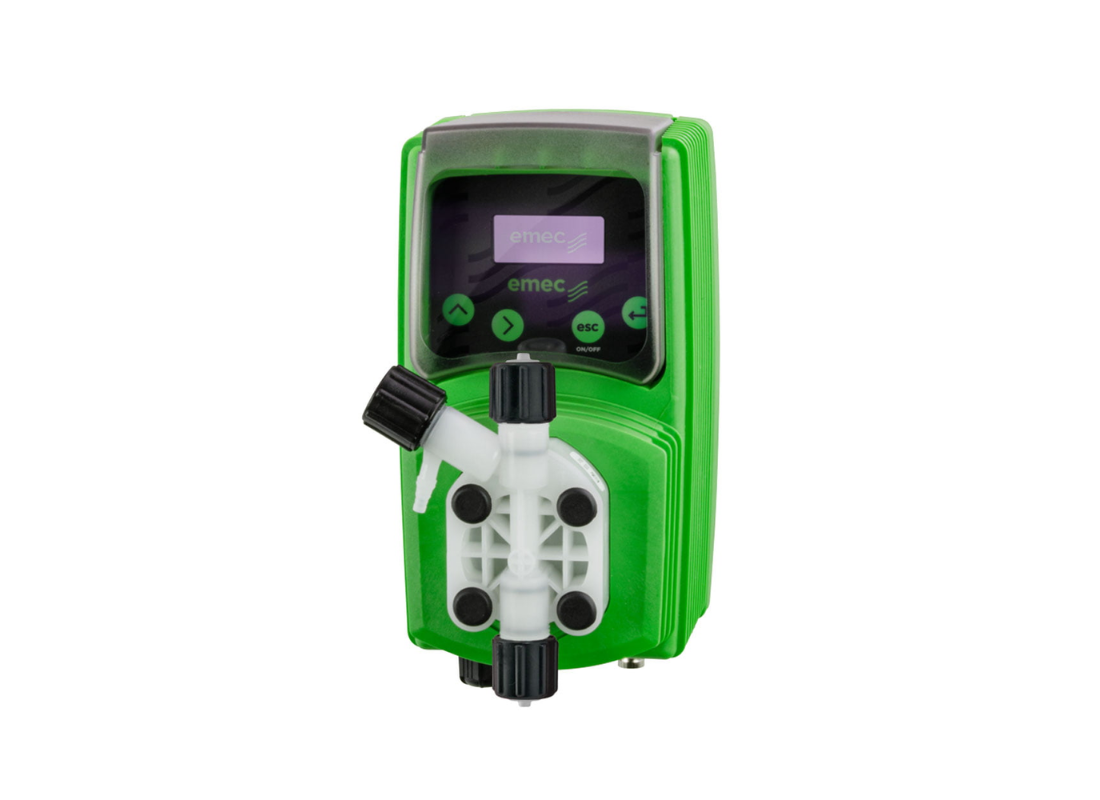

EMEC VAMF 03-07-VF Digital Self-Venting Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 7 l/hr @ 3 bar, PVDF self-venting (de-gassing) pump head for chemical dosing, multifunction digital control, includes installation kit

The EMEC VAMF 03-07-VF is a digital multifunction dosing pump from the V Series, designed for precise and flexible chemical injection across water treatment, industrial, and agricultural applications. It provides accurate dosing with advanced electronic control and reliable solenoid-driven performance.

This model features a self-venting (de-gassing) PVDF pump head, making it ideal for chemicals that release gas such as sodium hypochlorite. The self-venting design prevents air locking and ensures consistent dosing accuracy and uninterrupted operation.

The VF seal configuration ensures excellent compatibility with acidic and aggressive chemicals, delivering durability and long-term reliability in demanding environments. The digital multifunction controller supports multiple dosing modes including proportional, pulse-based, and manual operation, allowing full control over dosing processes.

Built with a high-strength PTFE diaphragm, the pump ensures long service life and minimal maintenance. Its compact wall-mounted design allows easy installation and integration into existing dosing systems.

Key Features

• Digital multifunction dosing control
• Self-venting (de-gassing) pump head for gas-forming chemicals

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for aggressive chemicals

• Adjustable and programmable dosing modes

• High-strength PTFE diaphragm for durability

• Reliable solenoid-driven operation

• Compact wall-mounted design

Applications

• Water treatment & disinfection

• Chlorine dosing systems

• Industrial chemical dosing

• Cooling towers

• Agriculture & fertigation

• Swimming pools & sanitation

Technical Specifications

• Model: VAMF 03-07-VF

• Max Flow Rate: 7 L/hr

• Max Pressure: 3 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF (Self-venting)

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Self-venting (de-gassing)

• Power Supply: 100–240V AC

• Protection Rating: IP65
