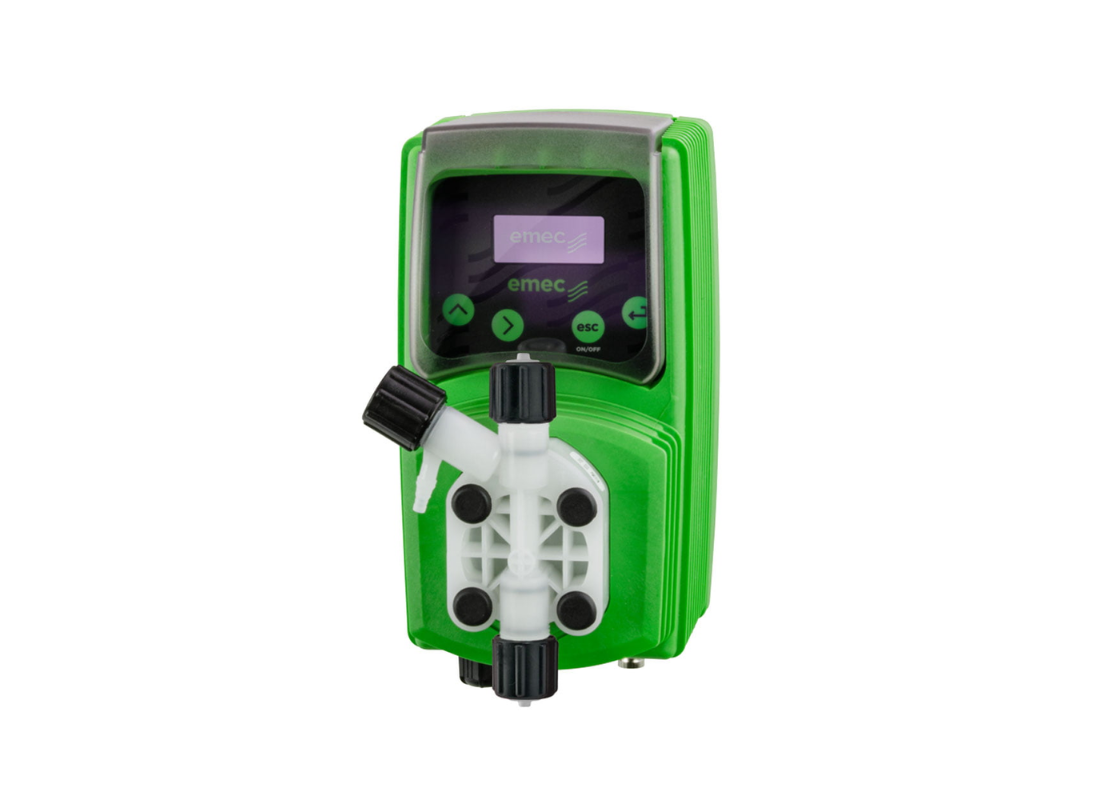

EMEC VAMF 10-02-VF Digital Self-Venting Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 2 l/hr @ 10 bar, PVDF self-venting (de-gassing) pump head for chemical dosing, multifunction digital control, includes installation kit

The EMEC VAMF 10-02-VF is a digital multifunction dosing pump from the V Series, engineered for precise chemical injection in demanding water treatment, industrial, and process applications. It is ideal for systems requiring low flow rates at higher pressure with accurate and stable dosing performance.

This model features a self-venting (de-gassing) PVDF pump head, making it particularly suitable for chemicals that release gas such as sodium hypochlorite. The self-venting design prevents air locking, ensuring consistent dosing accuracy and uninterrupted operation.

The VF Viton (Acidic) seal configuration provides excellent resistance to aggressive and acidic chemicals, ensuring durability and long-term reliability in harsh environments. The digital multifunction controller enables flexible dosing modes including proportional, pulse-based, and manual control, allowing precise adjustment based on system requirements.

Constructed with a high-strength PTFE diaphragm, the pump ensures long service life with minimal maintenance. Its compact wall-mounted design allows easy installation and seamless integration into dosing systems.

Key Features

• Digital multifunction dosing control
• Self-venting (de-gassing) pump head for gas-forming chemicals

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for aggressive chemicals

• Programmable and adjustable dosing modes

• High-strength PTFE diaphragm

• Reliable solenoid-driven operation

• Compact wall-mounted design

Applications

• Water treatment & disinfection

• Chlorine dosing systems

• Industrial chemical dosing

• Cooling towers

• Agriculture & fertigation

• Swimming pools & sanitation

Technical Specifications

• Model: VAMF 10-02-VF

• Max Flow Rate: 2 L/hr

• Max Pressure: 10 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF (Self-venting)

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Self-venting (de-gassing)

• Power Supply: 100–240V AC

• Protection Rating: IP65
