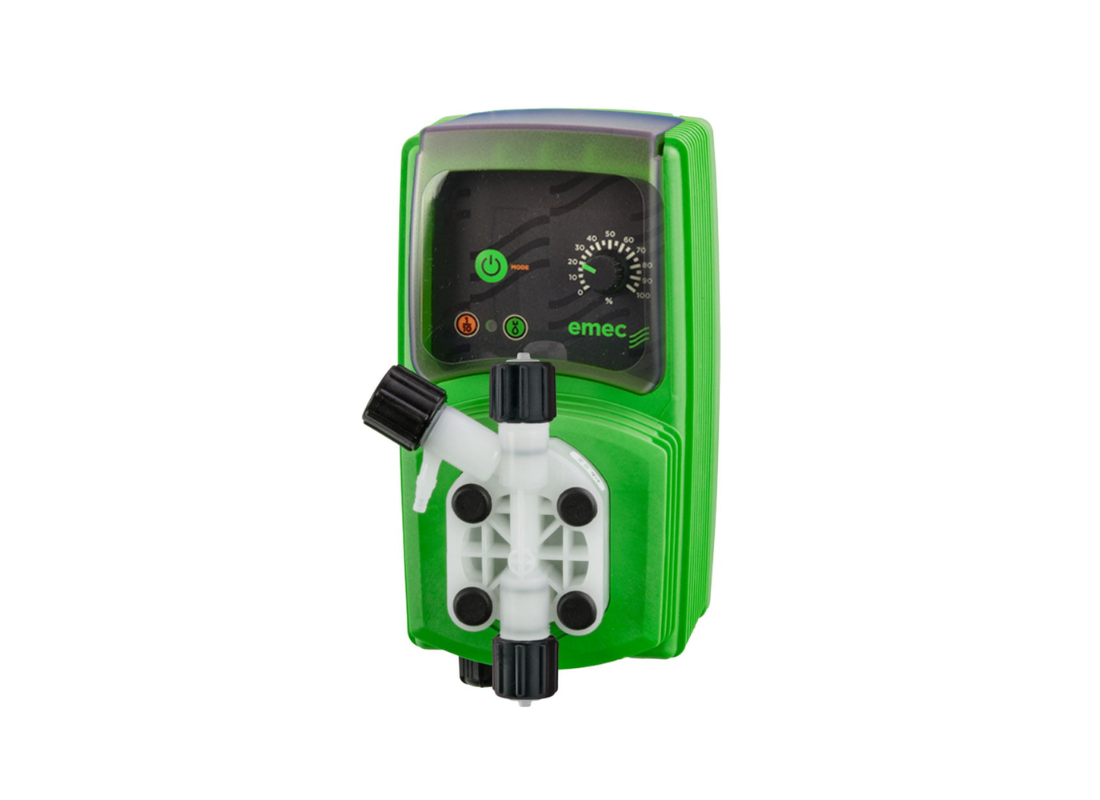

EMEC VCO 02-15-VF Adjustable Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 15 l/hr @ 2 bar, PVDF pump head for chemical dosing, fixed stroke length, adjustable 10–100% speed with divider, includes installation kit

The EMEC VCO 02-15-VF is a compact and reliable electronic chemical dosing pump designed for accurate and consistent injection of chemicals across water treatment, agriculture, and industrial applications. It offers simple operation with adjustable dosing control, making it suitable for a wide range of standard dosing requirements.

This model features a durable PVDF pump head, providing strong resistance to chlorine and other aggressive chemicals. The robust construction ensures stable operation and long service life, even in demanding environments.

Equipped with a PTFE diaphragm and Viton (VF) seals, the pump delivers excellent chemical compatibility and reduced maintenance needs. Its adjustable dosing capability allows operators to fine-tune output from 10–100%, ensuring precise chemical delivery.

The wall-mounted design enables quick installation and easy integration into existing dosing systems, making it a practical and efficient solution for continuous chemical dosing applications.

Key Features

• Adjustable dosing control for precise chemical injection

• PVDF pump head for high chemical resistance

• Viton (VF) seals suitable for acidic chemicals

• Compact wall-mounted design

• High-strength PTFE diaphragm for long service life

• Manual adjustment with wide dosing range (10–100%)

• Quiet and efficient solenoid-driven operation

• Suitable for continuous dosing applications

Applications

• Water treatment & disinfection

• Chlorine dosing systems

• Agriculture & fertigation

• Cooling towers

• Industrial chemical dosing

• Swimming pools & sanitation

Technical Specifications

• Model: VCO 02-15-VF

• Max Flow Rate: 15 L/hr

• Max Pressure: 2 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Constant dosing (manual adjustable)

• Pump Head Material: PVDF

• Seal Material: Viton (VF)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual

• Power Supply: 230V AC

• Protection Rating: IP65
