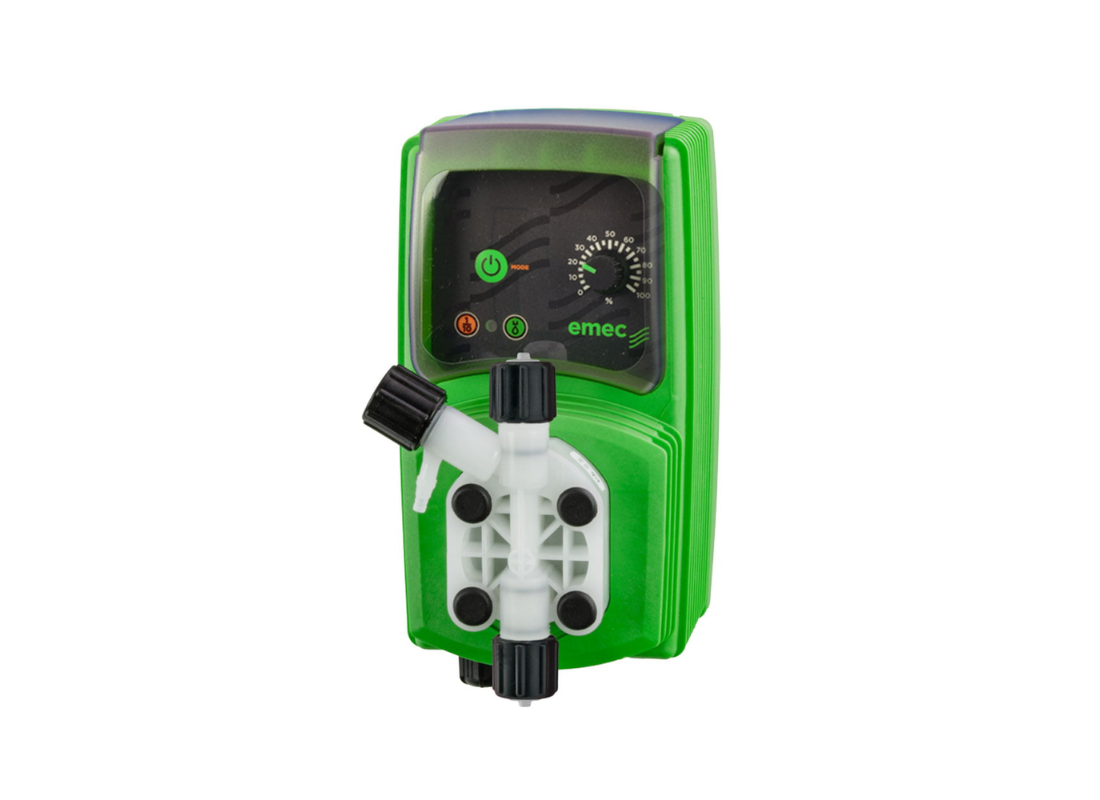

EMEC VCO 03-10-EPDM Adjustable Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 10 l/hr @ 3 bar, PVDF pump head for chemical dosing, fixed stroke length, adjustable 10–100% speed with divider, includes installation kit

The EMEC VCO 03-10-EPDM is a compact and dependable electronic dosing pump designed for precise chemical injection in water treatment, agriculture, and industrial processes. As part of the EMEC V Series, it delivers consistent dosing performance with simple manual control, making it ideal for standard constant dosing applications.

This model features a durable PVDF pump head, offering excellent resistance to a wide range of chemicals including chlorine and oxidizing agents. The EPDM seal configuration makes it particularly suitable for alkaline chemicals and water-based solutions, ensuring long-lasting performance and compatibility in demanding environments.

Equipped with a high-strength PTFE diaphragm, the pump ensures reliable operation with minimal maintenance. The adjustable dosing rate allows operators to fine-tune output between 10–100%, enabling accurate control over chemical injection levels.

Its wall-mounted design allows for quick installation and easy integration into dosing systems, making it a practical solution for continuous and automated chemical dosing setups.

Key Features

• Adjustable dosing control for precise chemical injection

• PVDF pump head for superior chemical resistance

• EPDM seals suitable for alkaline and water-based chemicals

• High-strength PTFE diaphragm for extended service life

• Compact wall-mounted design

• Manual adjustment with wide dosing range (10–100%)

• Reliable solenoid-driven dosing mechanism

• Designed for continuous dosing applications

Applications

• Water treatment & disinfection

• Alkaline chemical dosing systems

• Agriculture & fertigation

• Cooling towers

• Industrial process dosing

• Swimming pools & sanitation

Technical Specifications

• Model: VCO 03-10-EPDM

• Max Flow Rate: 10 L/hr

• Max Pressure: 3 Bar

• Pump Type: Solenoid-driven dosing pump

• Control Type: Constant dosing (manual adjustable)

• Pump Head Material: PVDF

• Seal Material: EPDM

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual

• Power Supply: 230V AC

• Protection Rating: IP65
