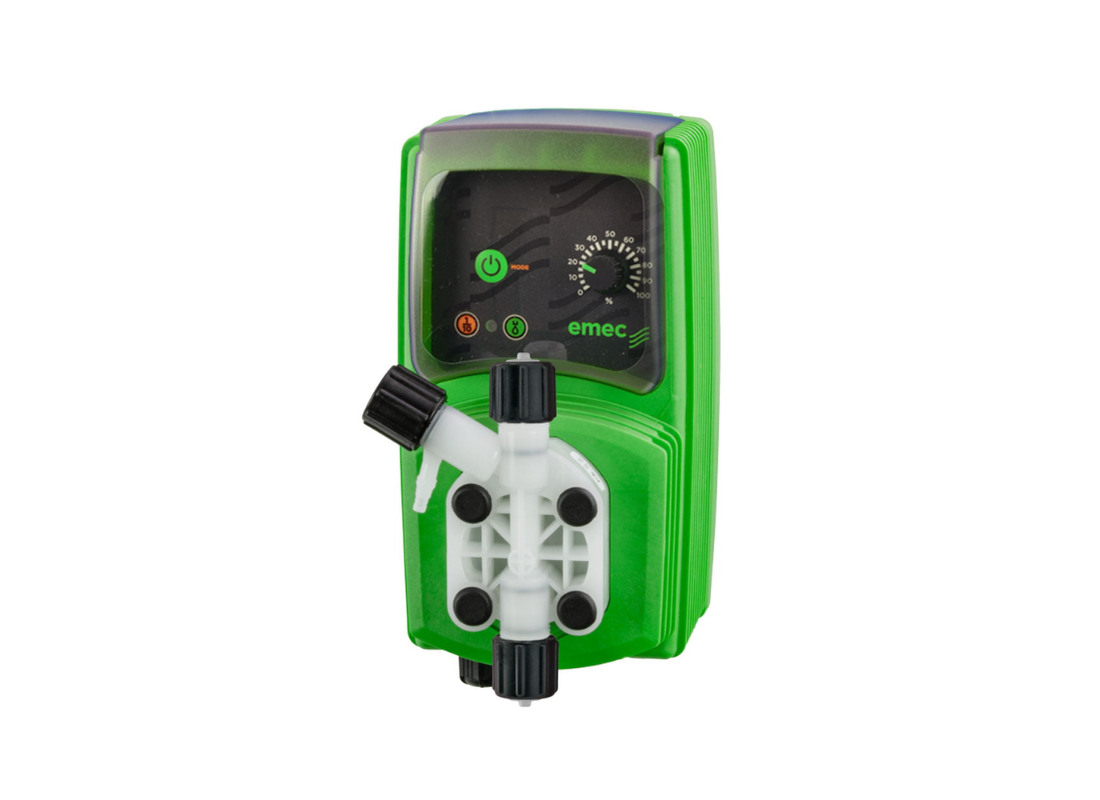

EMEC VCO 05-01-EPDM Adjustable Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 1 l/hr @ 5 bar, PVDF pump head for chemical dosing, fixed stroke length, adjustable 10–100% speed with divider, includes installation kit

The EMEC VCO 05-01-EPDM is a compact and precise electronic dosing pump designed for controlled chemical injection in water treatment, industrial, and agricultural applications. It is ideal for systems requiring low flow rates with higher pressure performance.

Featuring a PVDF pump head, this model provides excellent resistance to a wide range of chemicals. The EPDM seal configuration makes it particularly suitable for alkaline solutions and oxidizing agents, ensuring reliable performance across diverse dosing environments.

The pump is built with a high-strength PTFE diaphragm, offering durability and long service life with minimal maintenance. Its adjustable dosing control allows operators to regulate output from 10–100%, ensuring accurate and consistent chemical delivery.

Designed for wall-mounted installation, the VCO series offers easy integration into existing systems and dependable operation for continuous dosing applications.

Key Features

• Adjustable dosing control for precise chemical injection

• PVDF pump head for strong chemical resistance

• EPDM seals suitable for alkaline and oxidizing chemicals

• High-strength PTFE diaphragm for long service life

• Compact wall-mounted design

• Manual adjustment with dosing range from 10–100%

• Reliable solenoid-driven operation

• Suitable for continuous dosing applications

Applications

• Water treatment & disinfection

• Alkaline chemical dosing

• Cooling towers

• Agriculture & fertigation

• Industrial process dosing

• Swimming pools & sanitation

Technical Specifications

• Model: VCO 05-01-EPDM

• Max Flow Rate: 1 L/hr

• Max Pressure: 5 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Constant dosing (manual adjustable)

• Pump Head Material: PVDF

• Seal Material: EPDM

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual

• Power Supply: 230V AC

• Protection Rating: IP65
