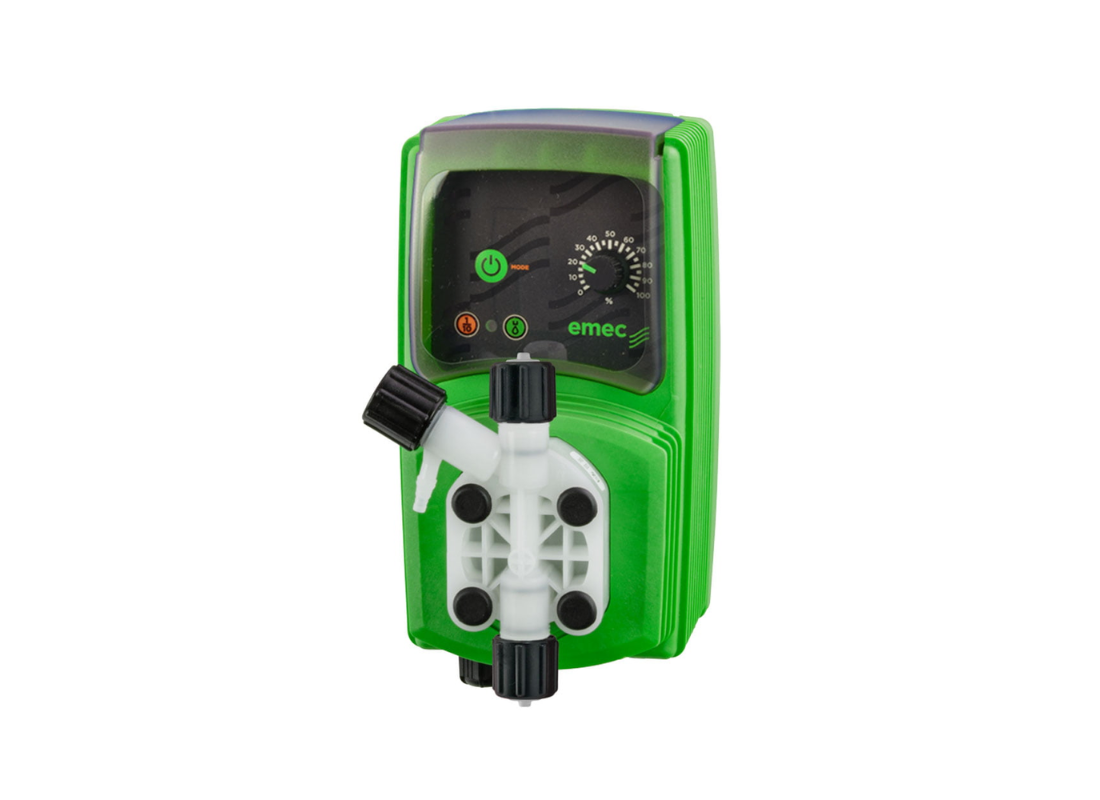

EMEC VCO 05-01-VF Adjustable Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 1 l/hr @ 5 bar, PVDF pump head for chemical dosing, fixed stroke length, adjustable 10–100% speed with divider, includes installation kit

The EMEC VCO 05-01-VF is a compact and reliable solenoid-driven dosing pump from the V Series, engineered for precise chemical injection in water treatment and industrial applications. Designed for constant dosing, it provides consistent output where simple, dependable operation is required.

Equipped with a PVDF pump head, the VCO 05-01-VF ensures strong resistance against a wide range of aggressive chemicals. The VF seal configuration (Viton/FKM) is particularly suitable for acidic chemicals, hydrocarbons, and solvent-based solutions, offering enhanced durability in demanding environments.

The pump features a high-strength PTFE diaphragm for long service life and reliable performance. Its adjustable dosing control (10–100%) allows accurate regulation of chemical injection, ensuring consistent and efficient operation.

Designed for wall-mounted installation, the VCO series enables easy integration into dosing systems and delivers dependable performance in continuous applications.

Key Features

• Adjustable dosing control for precise chemical injection

• PVDF pump head for excellent chemical resistance

• VF (FKM/Viton) seals suitable for acidic and solvent-based chemicals

• High-strength PTFE diaphragm for durability

• Compact wall-mounted design

• Manual adjustment with dosing range from 10–100%

• Reliable solenoid-driven operation

• Simple constant dosing functionality

Applications

• Water treatment & disinfection

• Acid dosing systems

• Chemical processing

• Cooling towers

• Industrial dosing applications

• Swimming pools & sanitation

Technical Specifications

• Model: VCO 05-01-VF

• Max Flow Rate: 1 L/hr

• Max Pressure: 5 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Constant dosing (manual adjustable)

• Pump Head Material: PVDF

• Seal Material: VF (FKM/Viton)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual

• Power Supply: 230V AC

• Protection Rating: IP65
