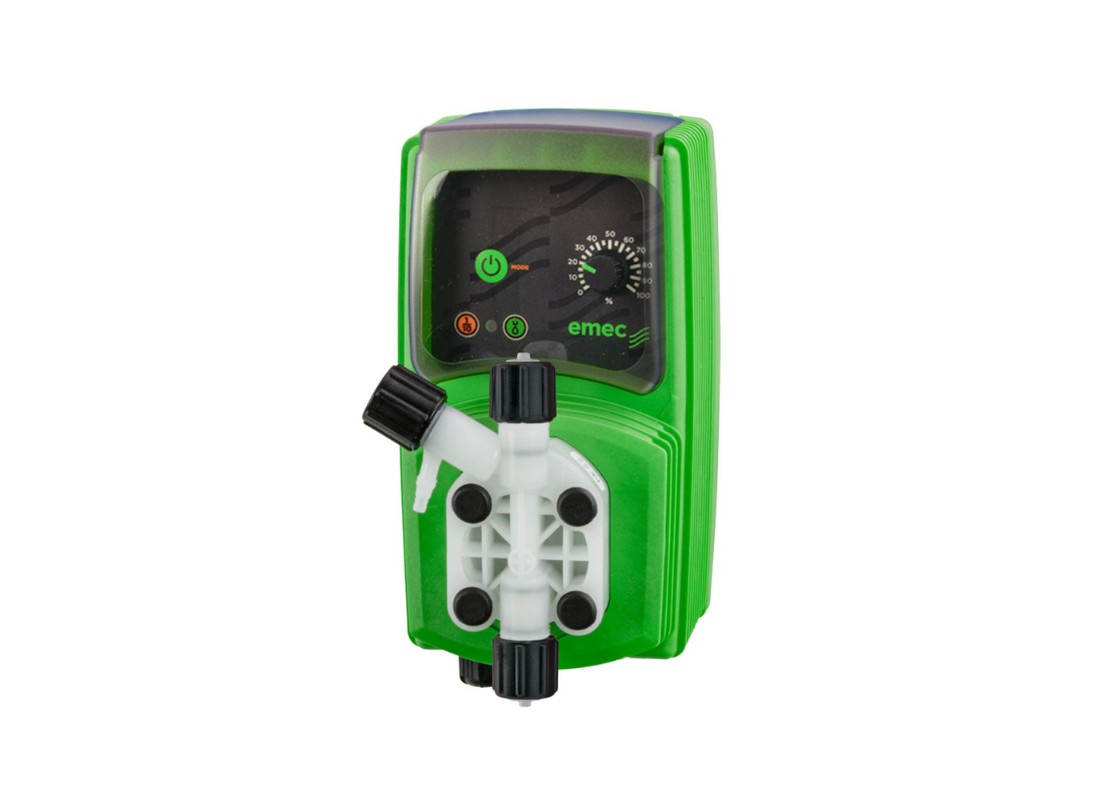

EMEC VCO 15-02-EPDM Adjustable Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 2 l/hr @ 15 bar, PVDF pump head for chemical dosing, fixed stroke length, adjustable 10–100% speed with divider, includes installation kit

The EMEC VCO 15-02-EPDM is a compact and reliable electronic dosing pump designed for precise chemical injection in water treatment and industrial dosing applications. Built within the EMEC V Series, it delivers consistent and accurate dosing performance for applications requiring steady chemical feed.

This solenoid-driven pump operates in constant dosing mode with manual adjustment, making it ideal for straightforward installations without complex control systems. The dosing output can be adjusted between 10–100%, allowing flexibility to match varying process requirements.

The EPDM seal configuration provides excellent compatibility with a wide range of water-based and oxidizing chemicals, ensuring durability and reliable operation in diverse environments.

Engineered with a high-strength PTFE diaphragm, the pump ensures long operational life, minimal maintenance, and consistent dosing accuracy over time. Its wall-mounted design allows easy installation and seamless integration into dosing systems.

Key Features

• Manual adjustable dosing (10–100%)

• Solenoid-driven constant dosing operation

• PVDF pump head for strong chemical resistance

• EPDM seals suitable for water-based and oxidizing chemicals

• High-pressure performance up to 15 bar

• PTFE diaphragm for durability and long service life

• Compact wall-mounted design

• Reliable and low maintenance operation

Applications

• Water treatment & disinfection

• Chemical dosing systems

• Swimming pools & sanitation

• Cooling towers

• Agriculture & fertigation

• Industrial process dosing

Technical Specifications

• Model: VCO 15-02-EPDM

• Max Flow Rate: 2 L/hr

• Max Pressure: 15 Bar

• Pump Type: Solenoid-driven dosing pump

• Control Type: Constant dosing (manual adjustable)

• Pump Head Material: PVDF

• Seal Material: EPDM

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual / Optional self-venting

• Power Supply: 230V AC

• Protection Rating: IP65
