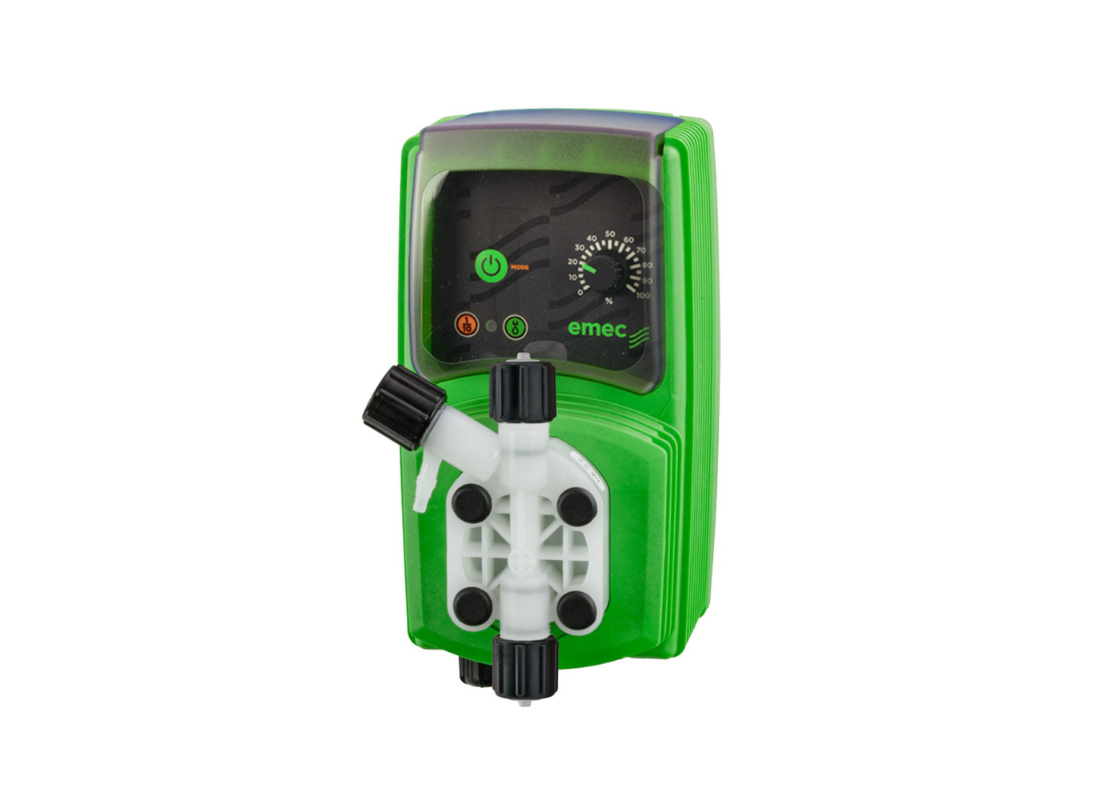

EMEC VCO 15-02-VF Adjustable Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 2 l/hr @ 15 bar, PVDF pump head for chemical dosing, fixed stroke length, adjustable 10–100% speed with divider, includes installation kit

The EMEC VCO 15-02-VF is a compact and reliable electronic dosing pump designed for precise chemical injection in water treatment and industrial dosing applications. Engineered for consistent performance, it delivers accurate dosing at low flow rates under high-pressure conditions.

Part of the EMEC V Series, this model is a solenoid-driven dosing pump offering constant dosing with manual adjustment. It is ideal for applications requiring steady chemical injection without complex control systems.

The pump features a PVDF pump head, ensuring excellent chemical resistance across a wide range of dosing media. The VF configuration is designed for compatibility with aggressive chemicals, providing enhanced durability and operational safety.

Its robust PTFE diaphragm ensures long service life and minimal maintenance while maintaining accurate dosing performance over time. The adjustable dosing control allows operators to fine-tune output between 10–100%, providing flexibility across different dosing requirements.

Designed for wall-mounted installation, the VCO 15-02-VF integrates easily into dosing systems, offering a dependable solution for continuous operation.

Key Features

• Manual adjustable dosing (10–100%)

• Solenoid-driven constant dosing operation

• PVDF pump head for superior chemical resistance

• VF configuration for aggressive chemical compatibility

• High-pressure performance up to 15 bar

• PTFE diaphragm for durability and reliability

• Compact wall-mounted design

• Low maintenance and long service life

Applications

• Water treatment & disinfection

• Chemical dosing systems

• Industrial process dosing

• Cooling towers

• Agriculture & fertigation

• Swimming pools & sanitation

Technical Specifications

• Model: VCO 15-02-VF

• Max Flow Rate: 2 L/hr

• Max Pressure: 15 Bar

• Pump Type: Solenoid-driven dosing pump

• Control Type: Constant dosing (manual adjustable)

• Pump Head Material: PVDF

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual / Optional self-venting

• Power Supply: 100–240V AC

• Protection Rating: IP65
