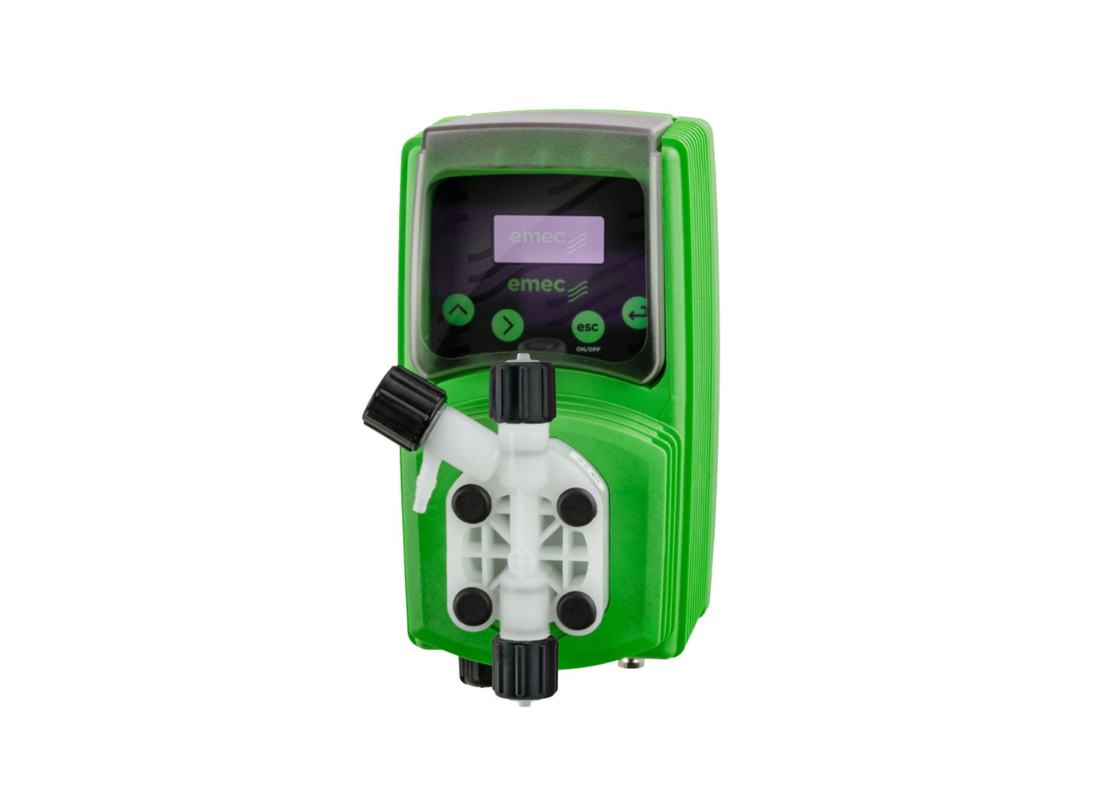

EMEC VMF 05-01-VF Digital Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 1 l/hr @ 5 bar, PVDF pump head, multifunction digital control, includes installation kit

The EMEC VMF 05-01-VF is a digital multifunction dosing pump from the V Series, designed for precise and reliable chemical dosing in water treatment, industrial processes, and sanitation systems. It is ideal for applications requiring low flow rates with higher pressure capability and accurate dosing control.

Equipped with a PVDF pump head, this model provides excellent resistance to aggressive and corrosive chemicals. The VF Viton (Acidic) seal configuration ensures compatibility with acidic chemicals, offering durability and long-term reliability in demanding environments.

The integrated digital controller supports multiple dosing modes including constant, proportional, pulse-based, and timed dosing. This allows precise adjustment of dosing rates to suit varying system requirements.

Built with a high-strength PTFE diaphragm and a solenoid-driven mechanism, the VMF series ensures consistent performance, minimal maintenance, and long service life. Its compact wall-mounted design allows easy installation and seamless integration into dosing systems.

Key Features

• Digital multifunction dosing control

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for aggressive chemicals

• Adjustable and programmable dosing modes

• High-strength PTFE diaphragm

• Reliable solenoid-driven operation

• Compact wall-mounted design

• Manual or optional self-venting configurations

Applications

• Water treatment & disinfection

• Chemical dosing systems

• Industrial process dosing

• Cooling towers

• Agriculture & fertigation

• Swimming pools & sanitation

Technical Specifications

• Model: VMF 05-01-VF

• Max Flow Rate: 1 L/hr

• Max Pressure: 5 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual (Self-venting optional)

• Power Supply: 100–240V AC

• Protection Rating: IP65
