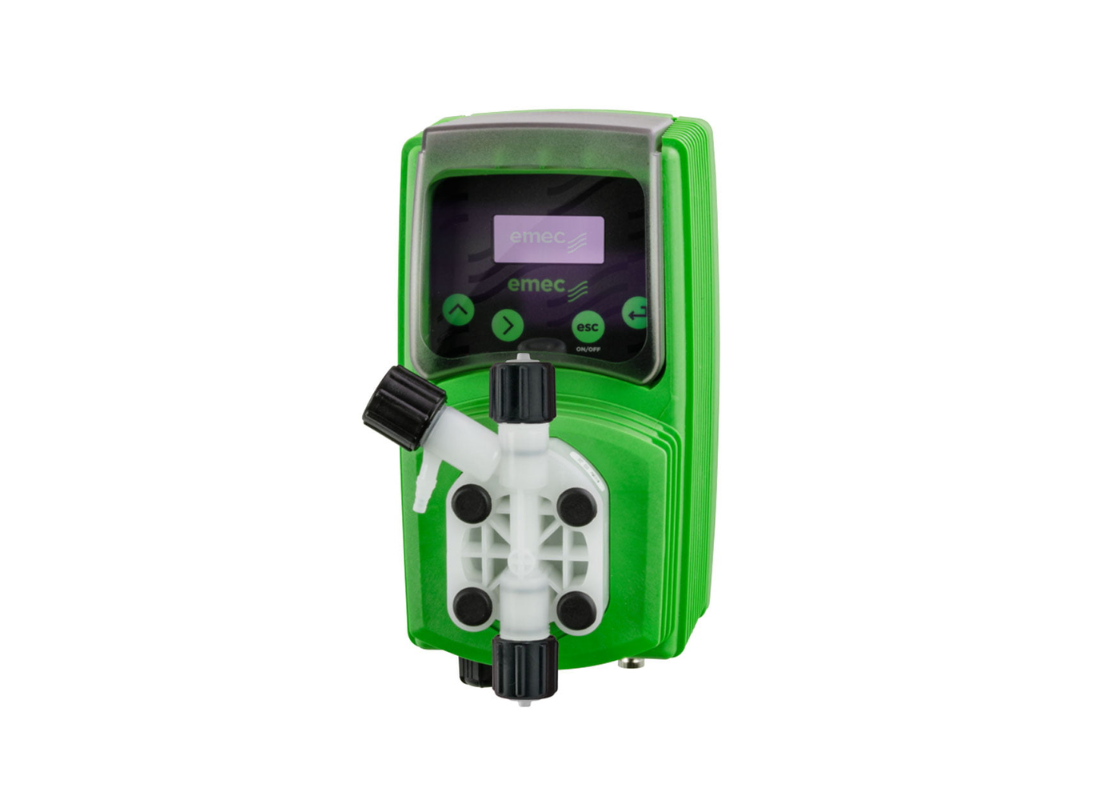

EMEC VMF 07-06-EPDM Digital Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 6 l/hr @ 7 bar, PVDF pump head, multifunction digital control, includes installation kit

The EMEC VMF 07-06-EPDM is a digital multifunction dosing pump from the V Series, engineered for precise and reliable chemical dosing in water treatment and industrial applications. It is ideal for applications requiring moderate flow rates with higher pressure capability and consistent dosing accuracy.

Equipped with a PVDF pump head, this model offers excellent resistance to a wide range of chemicals. The EPDM (Alkaline) seal configuration is specifically suited for alkaline and water-based chemicals, ensuring durability and long-term performance in demanding environments.

The integrated digital control system supports multiple dosing modes including constant, proportional, pulse-based, and timed dosing. This allows precise adjustment of dosing rates to match varying system requirements.

Built with a high-strength PTFE diaphragm and a solenoid-driven mechanism, the VMF series ensures consistent performance, minimal maintenance, and long service life. Its compact wall-mounted design allows easy installation and seamless integration into dosing systems.

Key Features

• Digital multifunction dosing control

• PVDF pump head for high chemical resistance

• EPDM (Alkaline) seals for alkaline chemicals

• Adjustable and programmable dosing modes

• High-strength PTFE diaphragm

• Reliable solenoid-driven operation

• Compact wall-mounted design

• Manual or optional self-venting

Applications

• Water treatment & disinfection

• Chemical dosing systems

• Industrial process dosing

• Cooling towers

• Agriculture & fertigation

• Swimming pools & sanitation

Technical Specifications

• Model: VMF 07-06-EPDM

• Max Flow Rate: 6 L/hr

• Max Pressure: 7 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF

• Seal Material: EPDM (Alkaline)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual (Self-venting optional)

• Power Supply: 100–240V AC

• Protection Rating: IP65
