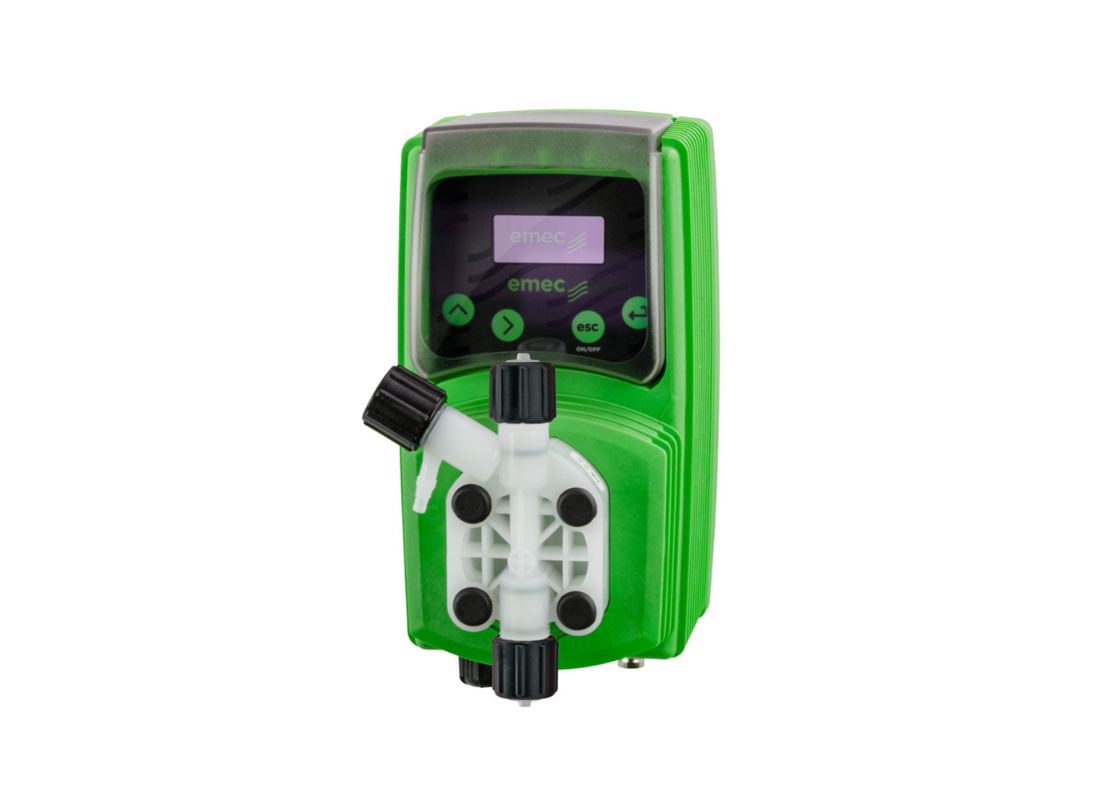

EMEC VMF 07-06-VF Digital Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 6 l/hr @ 7 bar, PVDF pump head, multifunction digital control, includes installation kit

The EMEC VMF 07-06-VF is a digital multifunction dosing pump from the V Series, engineered for precise and reliable chemical dosing in water treatment and industrial applications. It offers stable performance for applications requiring moderate flow rates with higher pressure capability.

Built with a PVDF pump head, this model provides excellent resistance to aggressive chemicals. The VF Viton (Acidic) seal configuration is specifically suited for acidic chemicals and oxidizing agents, ensuring long-lasting durability and safe operation in demanding environments.

The integrated digital control system allows multiple dosing modes including constant, proportional, pulse-based, and timed dosing. This flexibility enables accurate chemical injection tailored to varying system conditions.

Equipped with a high-strength PTFE diaphragm and a solenoid-driven mechanism, the VMF series ensures consistent performance, minimal maintenance, and long service life. Its compact wall-mounted design allows easy installation and seamless integration into dosing systems.

Key Features

• Digital multifunction dosing control

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for acidic chemicals

• Adjustable and programmable dosing modes

• High-strength PTFE diaphragm

• Reliable solenoid-driven operation

• Compact wall-mounted design

• Manual or optional self-venting

Applications

• Water treatment & disinfection

• Industrial chemical dosing

• Cooling towers

• Swimming pools & sanitation

• Agriculture & fertigation

• Chemical processing

Technical Specifications

• Model: VMF 07-06-VF

• Max Flow Rate: 6 L/hr

• Max Pressure: 7 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual (Self-venting optional)

• Power Supply: 100–240V AC

• Protection Rating: IP65
