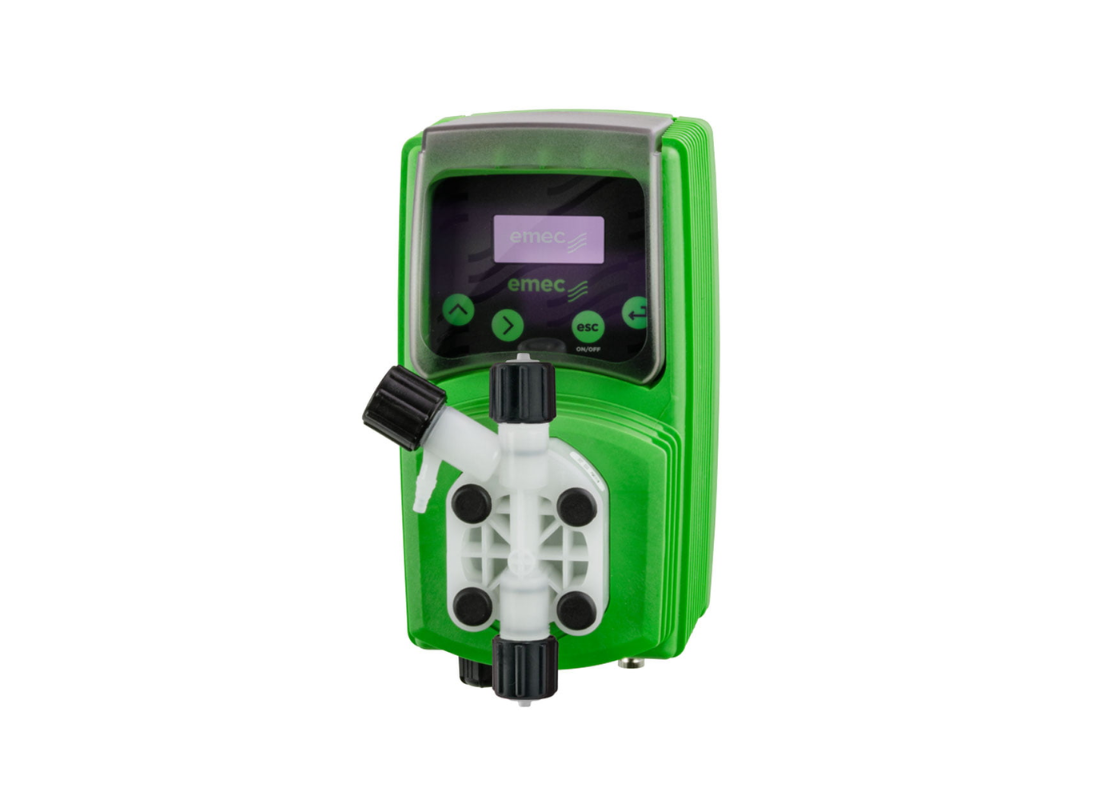

EMEC VMF 15-02-EPDM Digital Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 2 l/hr @ 15 bar, PVDF pump head, multifunction digital control, includes installation kit

The EMEC VMF 15-02-EPDM is a digital multifunction dosing pump from the V Series, engineered for precise and reliable chemical dosing in high-pressure, low-flow applications. It is ideal for accurate injection into pressurised systems where consistency and control are critical.

Equipped with a PVDF pump head, this model provides excellent resistance to a wide range of chemicals. The EPDM (Alkaline) seal configuration makes it particularly suitable for alkaline chemicals, ensuring long-term durability and safe operation in demanding dosing environments.

The integrated digital controller offers multiple dosing modes including constant, proportional, pulse-based, and timed dosing. This flexibility allows users to precisely control dosing rates to match system requirements.

Built with a high-strength PTFE diaphragm and solenoid-driven mechanism, the VMF series delivers consistent performance, low maintenance, and extended service life. Its compact wall-mounted design enables easy installation across a wide range of dosing systems.

Key Features

• Digital multifunction dosing control

• PVDF pump head for enhanced chemical resistance

• EPDM (Alkaline) seals for alkaline compatibility

• Adjustable and programmable dosing modes

• High-strength PTFE diaphragm

• Reliable solenoid-driven operation

• Compact wall-mounted design

• Manual or optional self-venting

Applications

• Water treatment & disinfection

• Chemical dosing systems

• Industrial process dosing

• Cooling towers

• Agriculture & fertigation

• Swimming pools & sanitation

Technical Specifications

• Model: VMF 15-02-EPDM

• Max Flow Rate: 2 L/hr

• Max Pressure: 15 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF

• Seal Material: EPDM (Alkaline)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual (Self-venting optional)

• Power Supply: 100–240V AC

• Protection Rating: IP65
