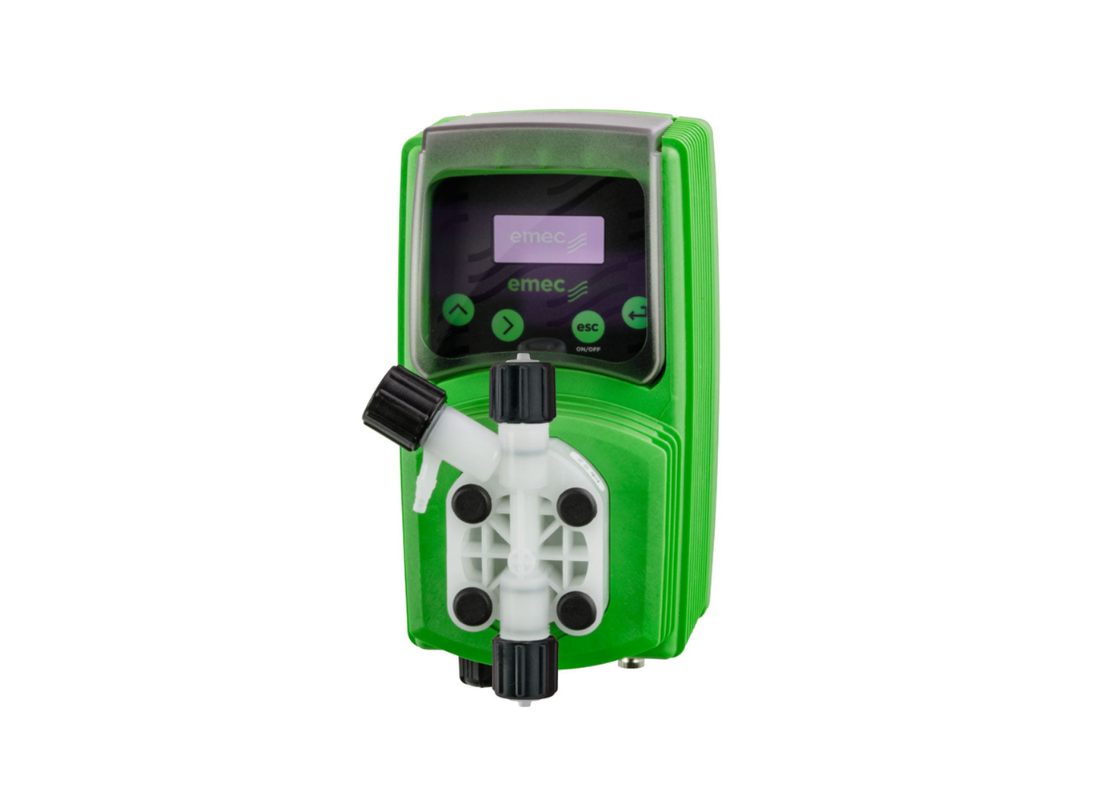

EMEC VMF 15-02-VF Digital Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 2 l/hr @ 15 bar, PVDF pump head, multifunction digital control, includes installation kit

The EMEC VMF 15-02-VF is a digital multifunction dosing pump from the V Series, designed for precise chemical dosing in high-pressure, low-flow applications. It is ideal for systems requiring accurate injection into pressurised lines with consistent and reliable performance.

Featuring a PVDF pump head, this model provides excellent resistance to aggressive and corrosive chemicals. The VF Viton (Acidic) seal configuration ensures compatibility with acidic chemicals, offering long-term durability and safe operation in demanding environments.

The integrated digital controller enables multiple dosing modes including constant, proportional, pulse-based, and timed dosing. This allows precise adjustment of dosing rates to meet varying system requirements.

Built with a high-strength PTFE diaphragm and a solenoid-driven mechanism, the VMF series ensures reliable operation, minimal maintenance, and long service life. Its compact wall-mounted design allows easy installation and seamless integration into dosing systems.

Key Features

• Digital multifunction dosing control

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for acidic chemicals

• Adjustable and programmable dosing modes

• High-strength PTFE diaphragm
• Reliable solenoid-driven operation

• Compact wall-mounted design

• Manual or optional self-venting

Applications

• Water treatment & disinfection

• Chemical dosing systems

• Industrial process dosing

• Cooling towers

• Agriculture & fertigation

• Swimming pools & sanitation

Technical Specifications

• Model: VMF 15-02-VF

• Max Flow Rate: 2 L/hr

• Max Pressure: 15 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual (Self-venting optional)

• Power Supply: 100–240V AC

• Protection Rating: IP65
