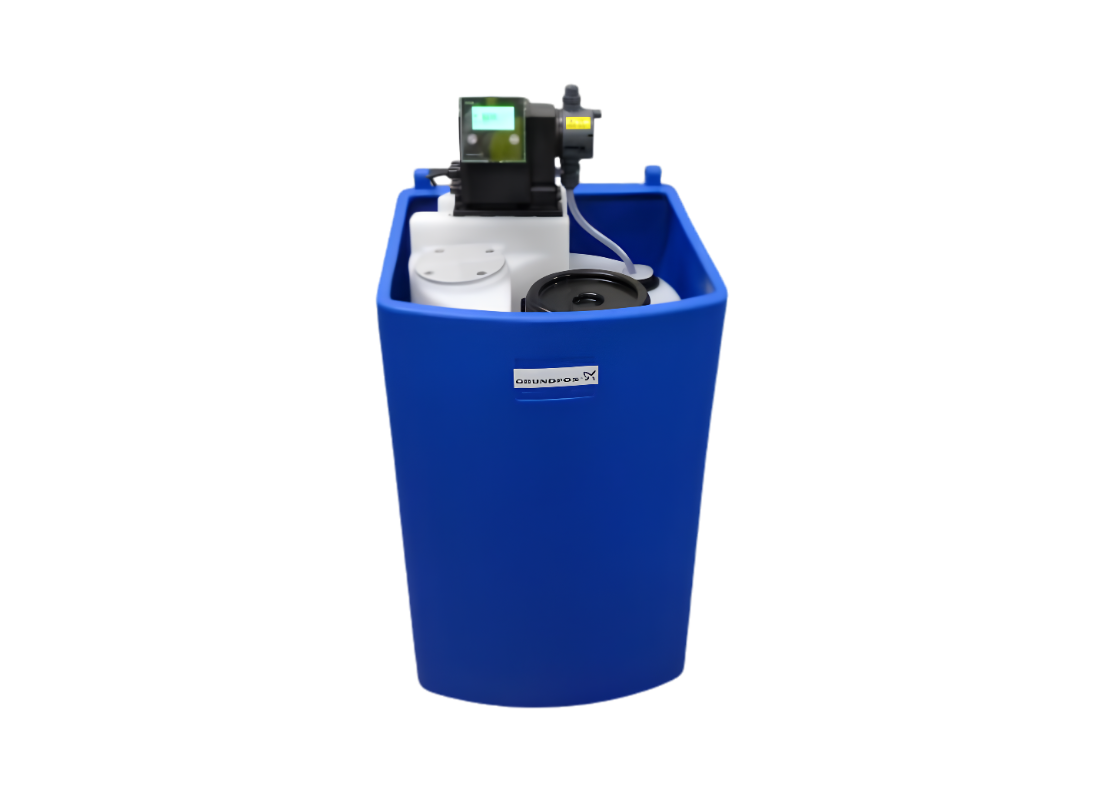

Grundfos DSB 100L Dosing Station with DDA 12-10 FCM Flow Measurement Pump & Multi-Function Valve

The Grundfos DSB 100L Dosing Station with DDA 12-10 FCM Flow Measurement Pump & Multi-Function Valve is a compact, pre-engineered chemical dosing system designed for safe chemical storage and accurate dosing in water treatment, pH correction, disinfection, cooling water, wastewater treatment and industrial process applications.

The system combines a 100-litre UV-stabilised polyethylene chemical tank with a Grundfos DDA 12-10 FCM Smart Digital dosing pump, providing highly accurate digital dosing using stepper motor technology and FlowControl with Flow Measurement (FCM). The integrated FlowControl function detects dosing faults such as air bubbles, blocked discharge lines and pressure fluctuations, while AutoFlowAdapt automatically compensates for changing process conditions to maintain precise dosing performance.

The DSB dosing station includes a PVDF multi-function valve that combines pressure relief and pressure loading functions for improved dosing stability and system protection. A flexible foot valve with a 2-level float switch provides low-level and empty-tank protection, while the complete package also includes an injection valve, 6 metres of PE dosing tubing and signal input/output alarm cables for simplified installation.

Designed as a compact, semi-assembled dosing solution, the DSB station minimises installation time while providing a professional chemical dosing package suitable for water treatment plants, commercial buildings, cooling towers, industrial processing and CIP disinfection systems.
