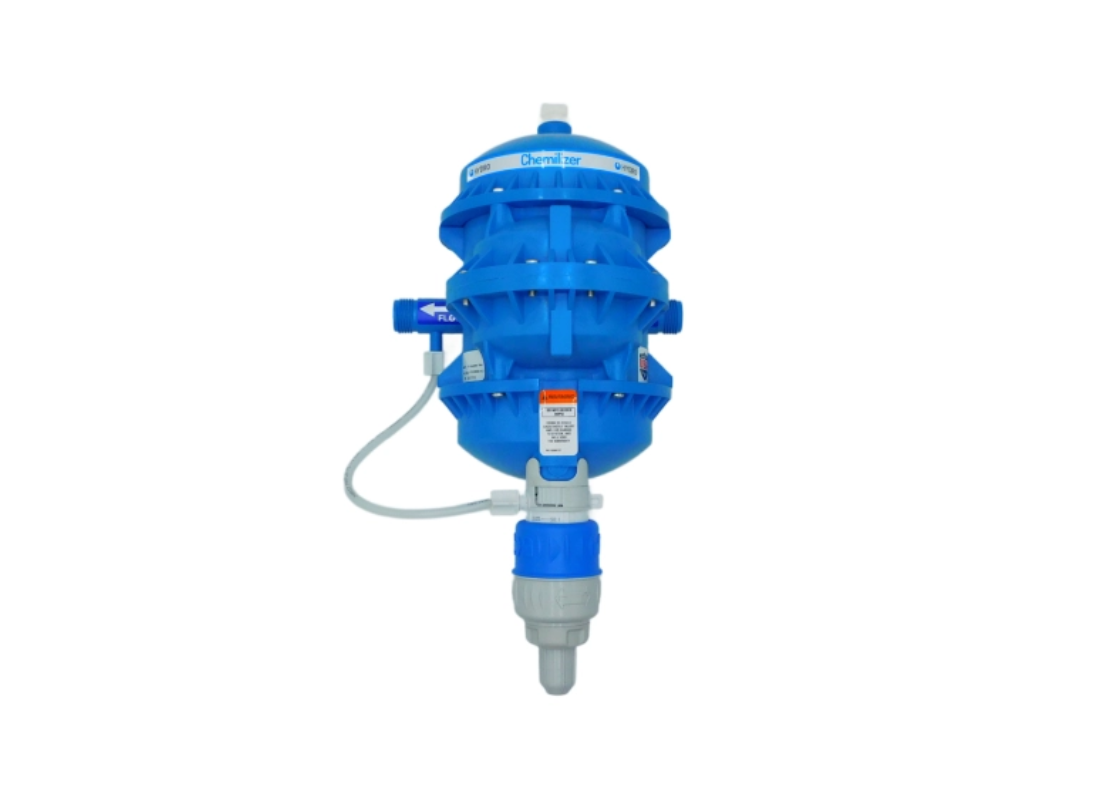

Hydro Systems Chemilizer CH9000-AV2 0.6–2% Water Powered Dosing Pump

The Hydro Systems Chemilizer CH9000-AV2 is a water-powered chemical injector designed for precise and adjustable dosing. Utilizing diaphragm technology, it operates using the existing water supply to inject accurate amounts of chemical directly into the water line.

The system ensures proportional dosing regardless of fluctuations in water pressure or flow, making it reliable for a wide range of applications. Its by-pass injection design protects internal motor components, enhancing durability and long service life.

Key Features

• Water-powered operation – no electricity required

• Diaphragm technology for precise dosing

• Adjustable dosing ratio (0.6 - 2%)

• Consistent injection regardless of pressure or flow changes

• No water filtration required

• By-pass injection design to protect motor components

• Excellent low-flow performance

• Corrosion-resistant construction

• Easy and low-cost maintenance

Applications

• Hard water applications

• Pond water systems

• Well water systems

• Chemical line cleaning

• Nutrient dosing

• Animal medication

Why Choose This Product?

The Chemilizer CH9000-AV2 offers adjustable dosing capability, making it suitable for multiple chemical applications. Its durable design and reliable performance ensure accurate dosing while reducing maintenance and operating costs.

Specifications

• Model Code: CH9000-AV2

• Flow Range: 5 - 2500 L/h

• Dosing Ratio: 0.6 - 2%

• Pressure Range: 0.2 - 5.8 Bar

• pH Range: 1-7

• Connection Size: 20mm (3/4") BSP

• Seal Type: VF Viton (Acidic)

• Body Material: Polypropylene
