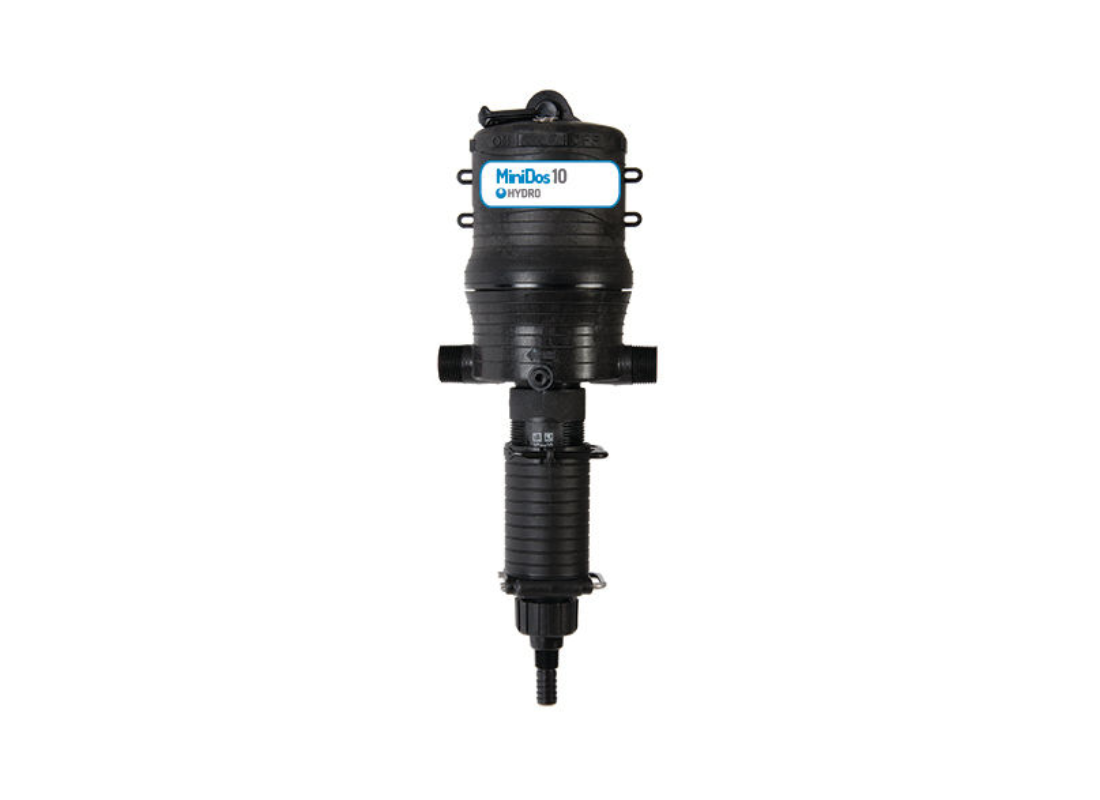

Hydro Systems MiniDos 112601A 1% Water Powered Dosing Pump

Water-powered dosing pump, adjustable dosing ratio, non-electric operation, accurate chemical injection, durable composite construction

The Hydro Systems MiniDos 112601A is a reliable water-powered dosing pump designed for precise and proportional chemical injection without the need for electricity. Installed directly into the water line, it uses water flow as its power source to deliver consistent and accurate dosing.

Featuring a patented internal mixing chamber, the MiniDos ensures thorough and homogeneous mixing while preventing chemical contact with critical internal components, enhancing durability and performance. Its proportional dosing mechanism guarantees that the chemical injection remains consistent regardless of fluctuations in flow or pressure.

This 1% model provides adjustable dosing from 0.2% to 1%, making it suitable for a wide range of applications including water treatment, cleaning, and agricultural dosing. The robust engineered composite housing offers excellent chemical resistance, even with aggressive chemicals.

The unit is self-priming and designed for ease of installation, operation, and maintenance, making it a dependable solution for industrial and commercial dosing applications.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio from 0.2% to 1%

• Proportional dosing independent of flow and pressure variations

• Patented internal mixing chamber for uniform mixing

• Chemical does not contact motor components

• Self-priming design for easy startup

• Durable engineered composite body for high chemical resistance

• Built-in on/off function for dosing control

• Suitable for aggressive chemical applications

Applications

• Water treatment and disinfection

• Fertigation and agriculture

• Cleaning and sanitation systems

• Chemical injection in industrial processes

• Cooling towers and washdown systems

Technical Specifications

• Model: MiniDos (112601A)
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 0.2% – 1%
• Flow Rate: 10 – 2700 L/h
• Operating Pressure: 0.5 – 9.6 Bar
• Connection Type: Inline
• Connection Size: 3/4" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
