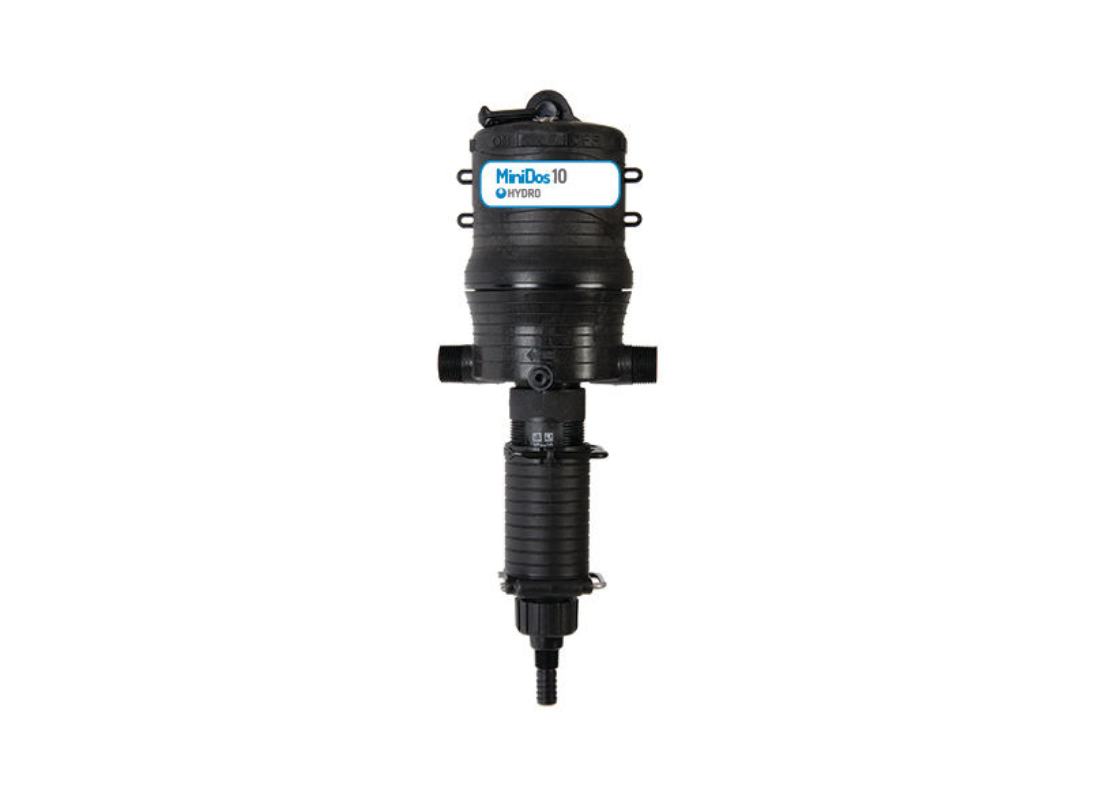

Hydro Systems MiniDos 112603 2.5% Water Powered Dosing Pump

Water-powered dosing pump, adjustable dosing ratio, non-electric operation, accurate proportional chemical injection, durable composite construction

The Hydro Systems MiniDos 112603 is a reliable water-powered dosing pump designed for precise and proportional chemical injection without the need for electricity. Installed directly into the water line, it uses water flow as its power source to deliver consistent and accurate dosing.

Featuring a patented internal mixing chamber, the MiniDos ensures thorough and homogeneous mixing while preventing chemical contact with critical internal components, improving durability and long-term performance. Its proportional dosing mechanism ensures consistent chemical injection regardless of variations in flow or pressure.

This 2.5% model offers an adjustable dosing range from 0.5% to 2.5%, making it ideal for applications requiring higher concentration dosing such as cleaning, water treatment, and agricultural systems. The engineered composite housing provides excellent resistance to aggressive chemicals, outperforming standard materials in demanding environments.

The unit is self-priming and designed for easy installation, operation, and maintenance, making it a dependable solution for industrial and commercial dosing applications.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio from 0.5% to 2.5%

• Proportional dosing independent of flow and pressure variations

• Patented internal mixing chamber for uniform mixing

• Chemical does not contact motor components

• Self-priming design for easy startup

• Durable engineered composite body for high chemical resistance

• Built-in on/off function for dosing control

• Suitable for aggressive chemical applications

Applications

• Water treatment and disinfection

• Fertigation and agriculture

• Cleaning and sanitation systems

• Chemical injection in industrial processes

• Cooling towers and washdown systems

Technical Specifications

• Model: MiniDos (112603)
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 0.5% – 2.5%
• Flow Rate: 10 – 2700 L/h
• Operating Pressure: 0.5 – 9.6 Bar
• Connection Type: Inline
• Connection Size: 3/4" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
