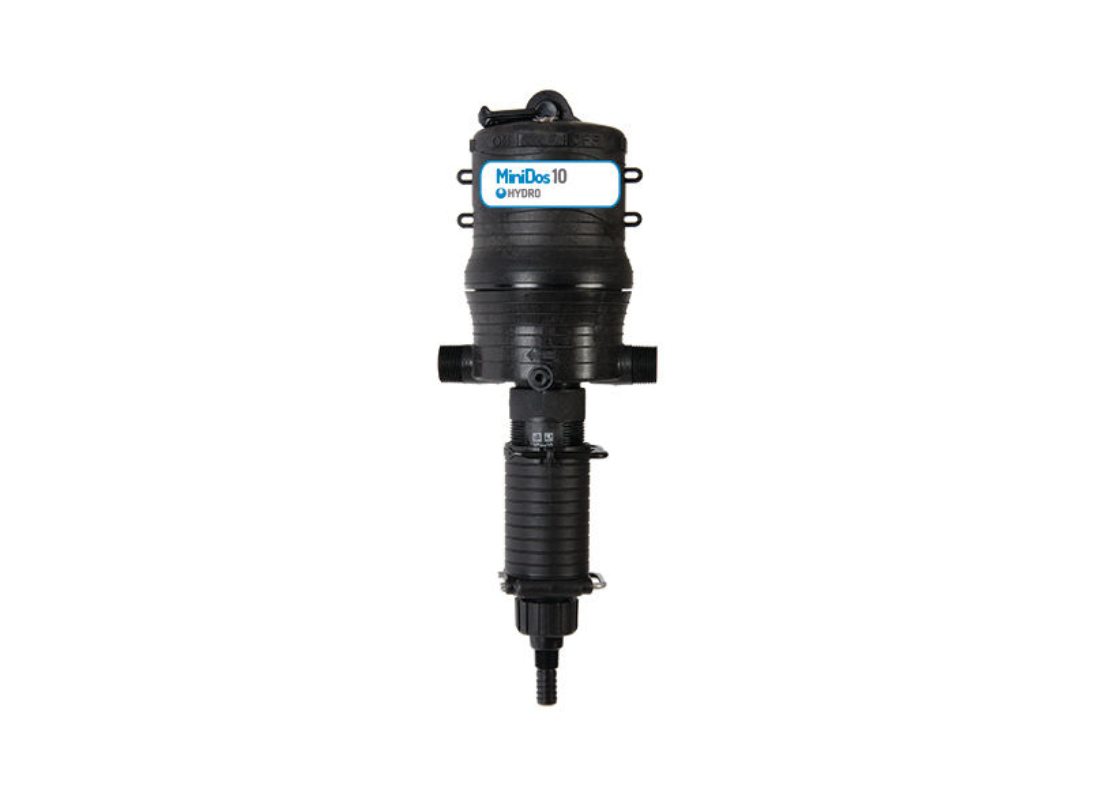

Hydro Systems MiniDos 112605 5% Water Powered Dosing Pump

Water-powered dosing pump, adjustable dosing ratio, non-electric operation, high concentration chemical injection, durable composite construction

The Hydro Systems MiniDos 112605 is a high-performance water-powered dosing pump designed for accurate and proportional chemical injection without the need for electricity. Installed directly into the water line, it uses water flow as its power source to deliver consistent dosing performance.

Featuring a patented internal mixing chamber, the MiniDos ensures thorough and homogeneous mixing while preventing chemical contact with critical internal components, improving durability and operational life. Its proportional dosing mechanism maintains consistent chemical injection regardless of variations in flow or pressure.

This 5% model provides an adjustable dosing range from 1% to 5%, making it ideal for applications requiring higher concentration dosing such as industrial cleaning, sanitation, and water treatment systems. The engineered composite housing offers excellent resistance to aggressive chemicals, ensuring long-term reliability.

The unit is self-priming and designed for easy installation, operation, and maintenance, making it a dependable solution for industrial and commercial dosing applications.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio from 1% to 5%

• Proportional dosing independent of flow and pressure variations

• Patented internal mixing chamber for uniform mixing

• Chemical does not contact motor components

• Self-priming design for easy startup

• Durable engineered composite body for high chemical resistance

• Built-in on/off function for dosing control

• Suitable for aggressive chemical applications

Applications

• Water treatment and disinfection

• Fertigation and agriculture

• Cleaning and sanitation systems

• Chemical injection in industrial processes

• Cooling towers and washdown systems

Technical Specifications

• Model: MiniDos (112605)
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 1% – 5%
• Flow Rate: 10 – 2700 L/h
• Operating Pressure: 0.5 – 9.6 Bar
• Connection Type: Inline
• Connection Size: 3/4" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
