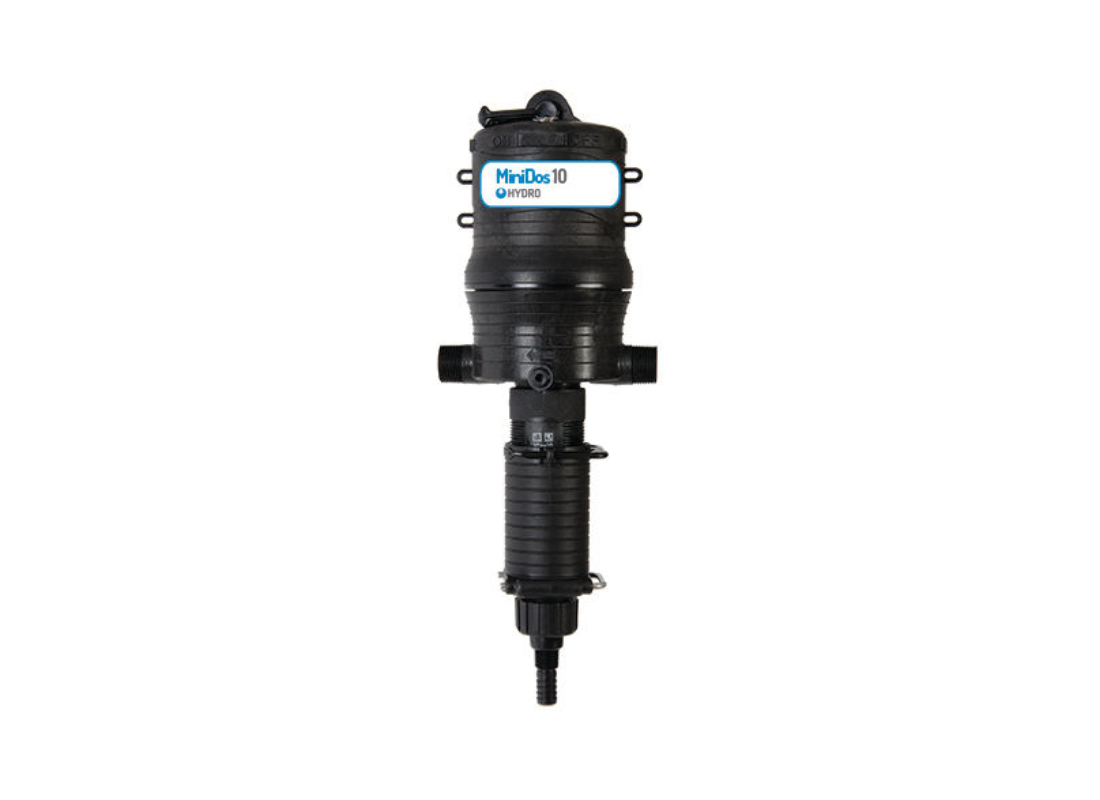

Hydro Systems MiniDos 112607 10% Water Powered Dosing Pump

Water-powered dosing pump, adjustable dosing ratio, non-electric operation, high concentration injection, industrial chemical dosing system

The Hydro Systems MiniDos 112607 is a high-capacity water-powered dosing pump designed for precise proportional injection of chemicals without requiring electricity. Installed directly into the water line, it uses water pressure as its driving force to deliver consistent and reliable dosing performance.

Engineered with a patented internal mixing chamber, the MiniDos ensures uniform chemical blending while isolating aggressive chemicals from critical internal components, significantly extending the life of the unit. Its proportional dosing system maintains accuracy regardless of fluctuations in water flow or pressure.

This 10% model offers an adjustable dosing range from 2% to 10%, making it ideal for higher concentration applications across industrial, agricultural, and water treatment environments. The robust engineered composite housing provides superior resistance to corrosive chemicals, ensuring long-term durability even in demanding conditions.

Self-priming and easy to install, the MiniDos 112607 is a dependable solution for operations requiring efficient, non-electric chemical injection.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio from 2% to 10%

• Proportional dosing independent of flow and pressure variations

• Patented internal mixing chamber for consistent mixing

• Chemical isolated from motor components for longer lifespan

• Self-priming design

• Durable engineered composite construction

• Built-in on/off control for dosing

• Designed for high concentration chemical applications

Applications

• Water treatment and disinfection

• Agriculture and fertigation

• Industrial cleaning and sanitation

• Chemical injection systems

• Cooling towers and process dosing

Technical Specifications

• Model: MiniDos (112607)
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 2% – 10%
• Flow Rate: 16 – 2200 L/h
• Operating Pressure: 0.5 – 4.5 Bar
• Connection Type: Inline
• Connection Size: 3/4" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
