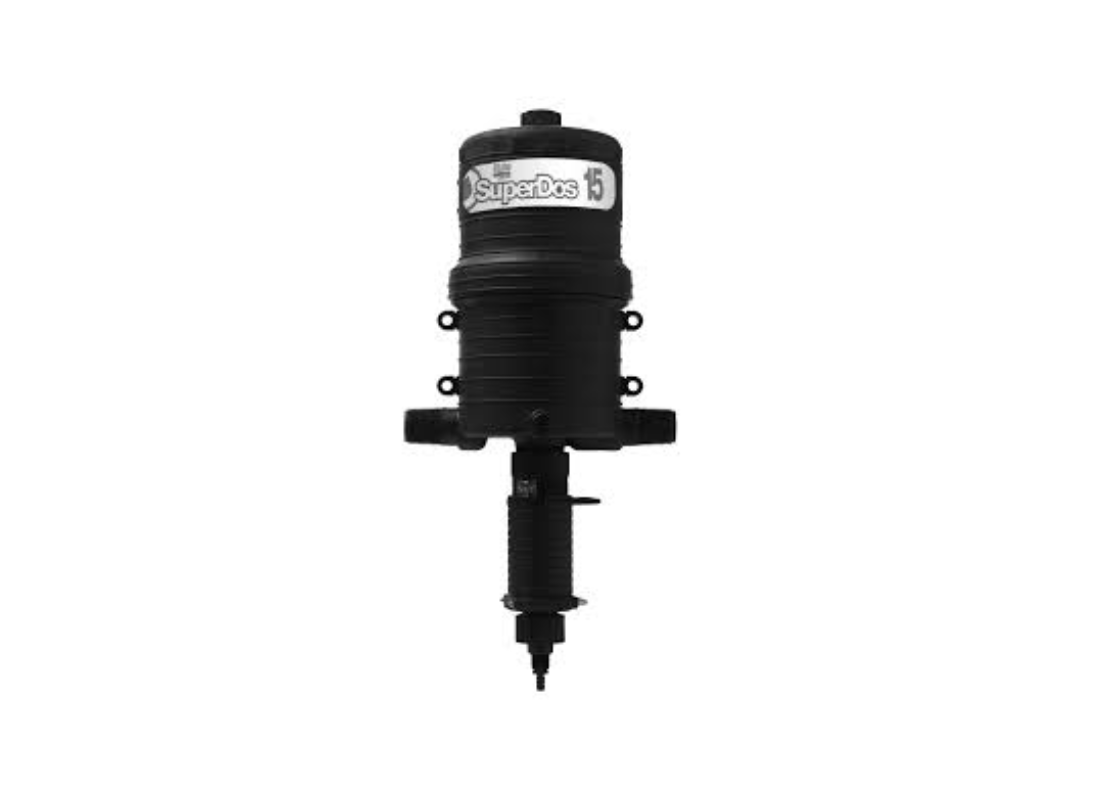

Hydro Systems SuperDos 15 0.2–2.5% Water Powered Dosing Pump

Water-powered dosing pump, adjustable dosing ratio, non-electric proportional injector, high flow capacity, industrial chemical dosing system

The Hydro Systems SuperDos 15 is a high-capacity water-powered dosing pump designed for precise proportional injection of chemicals without the need for electricity. Installed directly into the water line, it uses fluid flow as its power source to deliver consistent and accurate dosing performance across a wide range of applications.

Engineered with a patented internal mixing chamber, the SuperDos ensures homogeneous chemical mixing while isolating aggressive chemicals from critical internal components, significantly extending service life. Its proportional dosing system maintains accuracy regardless of fluctuations in water flow or pressure.

This model offers an adjustable dosing range of 0.2% to 2.5%, making it suitable for applications requiring moderate concentration dosing such as cleaning, water treatment, agriculture, and industrial processes. The proprietary engineered composite housing provides excellent resistance to corrosive and aggressive chemicals.

Designed for durability and performance, the SuperDos 15 is self-priming and built for high flow applications, making it ideal for demanding industrial environments.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio from 0.2% to 2.5%

• High flow capacity for industrial applications

• Proportional dosing independent of flow and pressure variations

• Patented internal mixing chamber for uniform mixing

• Chemical isolation from motor components for extended lifespan

• Self-priming design

• Durable engineered composite construction

• Suitable for aggressive chemical applications

Applications

• Water treatment and disinfection

• Agriculture and fertigation

• Industrial cleaning and degreasing

• Chemical injection systems

• Cooling towers and process industries

Technical Specifications

• Model: SuperDos15 (113702)
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 0.2% – 2.5%
• Flow Rate: 15 – 1500 L/h
• Operating Pressure: 0.21 – 4.1 Bar
• Connection Type: Inline
• Connection Size: 1" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
