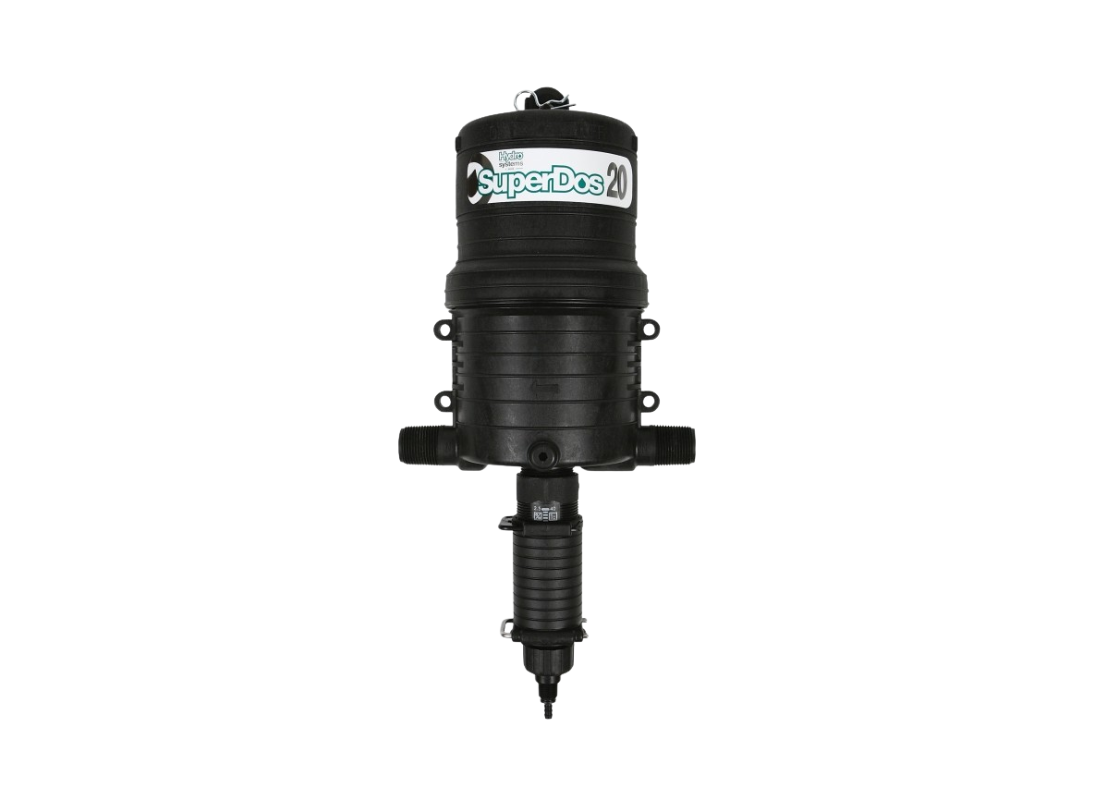

Hydro Systems SuperDos 20 2–10% Water Powered Dosing Pump

High concentration dosing pump, water-powered chemical injector, adjustable proportional dosing system, industrial fluid-driven dosing solution

The Hydro Systems SuperDos 20 2–10% is a high-strength water-powered dosing pump designed for applications requiring higher chemical concentrations with precision and reliability. Operating without electricity, it uses water flow as its power source to proportionally inject chemicals directly into the line, ensuring consistent dosing regardless of flow or pressure fluctuations.

This model is specifically engineered for higher dosing requirements, offering an adjustable injection range from 2% to 10%. It is ideal for heavy-duty applications such as sanitation, disinfection, chemical processing, and industrial cleaning where stronger chemical ratios are essential.

Featuring a patented internal mixing chamber, the SuperDos ensures thorough and homogeneous blending while keeping aggressive chemicals isolated from the motor components. This design significantly enhances durability and reduces wear, even when handling harsh or corrosive chemicals.

Built with a robust engineered composite housing, the pump provides excellent chemical resistance and long-term performance. The unit is self-priming and allows on-the-fly adjustment of dosing ratios, giving operators full control and flexibility during operation.

Key Features

• Water-powered operation (no electricity required)

• High dosing range from 2% to 10%

• Designed for high concentration chemical applications

• Proportional injection independent of flow and pressure changes

• Patented internal mixing chamber for consistent blending

• Chemical isolation from motor components for longer service life

• Self-priming for reliable startup

• Adjustable dosing during operation

• Heavy-duty construction for industrial environments

Applications

• Disinfection and sanitation systems

• Industrial cleaning and degreasing

• Chemical processing and dosing

• Agriculture and high-strength fertigation

• Water treatment requiring high concentration dosing

Technical Specifications

• Model: SuperDos 20 (113707)
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 2% – 10%
• Flow Rate: 20 - 2000 L/h
• Operating Pressure: 0.34 – 4.5 Bar
• Connection Type: Inline
• Connection Size: 1" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
