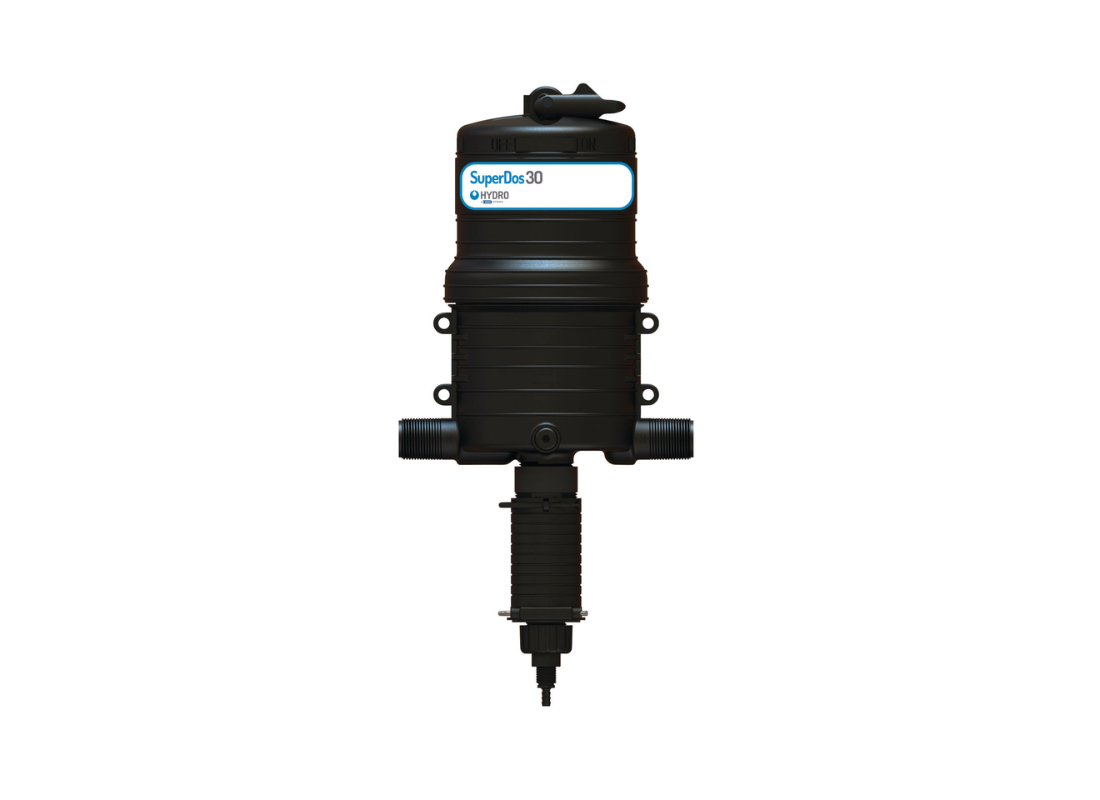

Hydro Systems SuperDos 30 0.025–0.4% Water Powered Dosing Pump

Ultra-low dosing water-powered pump, non-electric proportional injector, high flow chemical dosing system, precision fluid-driven injector

The Hydro Systems SuperDos 30 is a high-capacity water-powered dosing pump designed for precise ultra-low chemical injection without the need for electricity. Installed directly into the water line, it uses fluid flow as its power source to ensure accurate and consistent dosing performance.

This model features an ultra-low adjustable dosing range of 0.025% to 0.4%, making it ideal for applications requiring very fine chemical control such as chlorination, disinfection, and precise water treatment processes. Its proportional dosing mechanism ensures consistent injection regardless of fluctuations in flow or pressure.

Engineered with a patented internal mixing chamber, the SuperDos ensures thorough and homogeneous mixing while preventing aggressive chemicals from contacting critical internal components. This significantly enhances durability and extends service life.

Built from a proprietary engineered composite material, the unit provides excellent resistance to corrosive and aggressive chemicals. Designed for high flow systems, the SuperDos 30 supports demanding industrial and agricultural applications with reliable, continuous operation.

Key Features

• Water-powered operation (no electricity required)

• Ultra-low dosing ratio from 0.025% to 0.4%

• High flow capacity for industrial applications

• Proportional dosing independent of flow and pressure variations

• Patented internal mixing chamber for consistent blending

• Chemical isolation from motor components for longer lifespan

• Self-priming design

• Adjustable dosing during operation

• Heavy-duty chemical-resistant construction

Applications

• Chlorination and disinfection systems

• Water treatment and purification

• Agriculture and fertigation

• Cooling towers and process systems

• Industrial cleaning and sanitation

• Precision low-dose chemical injection

Technical Specifications

• Model: SuperDos 30 (113729R)
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 0.025% – 0.4%
• Flow Rate: 34 – 6780 L/h
• Operating Pressure: 0.34 – 6.9 Bar
• Connection Type: Inline
• Connection Size: 1" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
