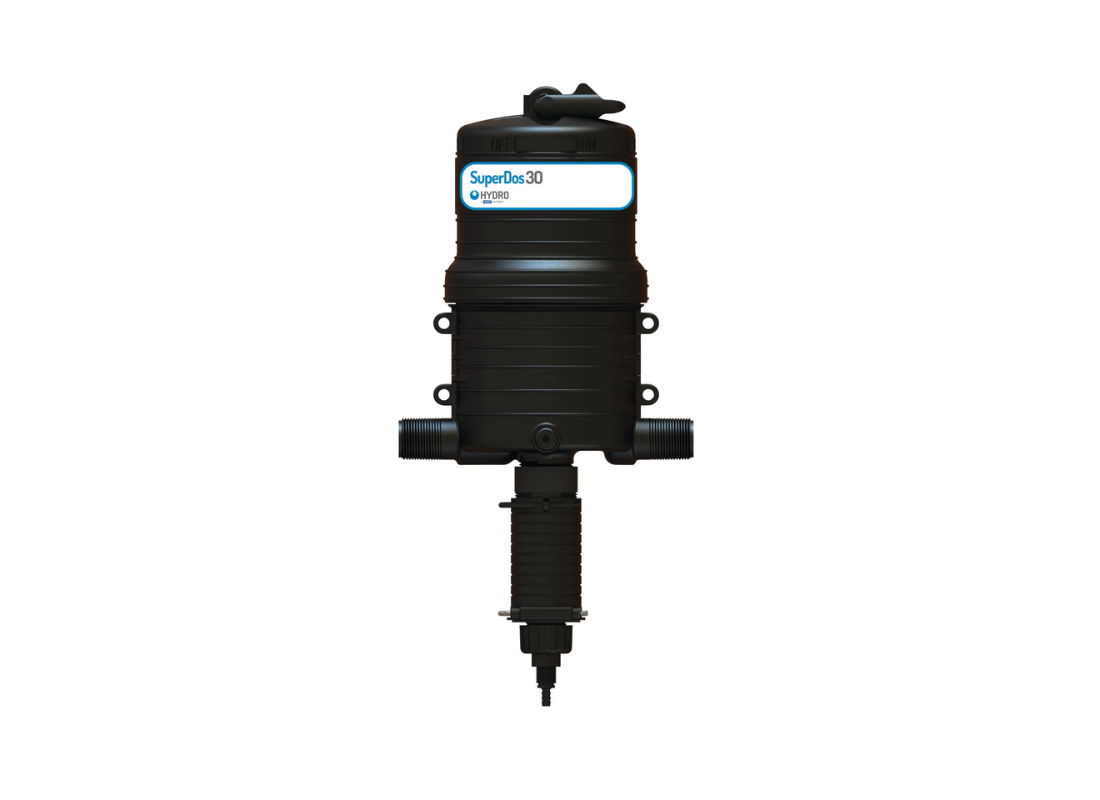

Hydro Systems SuperDos 30 0.2–2.5% Water Powered Dosing Pump

Medium range dosing pump, water-powered proportional injector, non-electric chemical dosing system, high flow industrial injector

The Hydro Systems SuperDos 30 is a high-capacity water-powered dosing pump designed for accurate and reliable proportional chemical injection without the need for electricity. Installed directly into the water line, it uses fluid flow as its power source to deliver consistent dosing performance across a wide range of applications.

This model offers an adjustable dosing range of 0.2% to 2.5%, making it ideal for medium concentration applications such as water treatment, sanitation, fertigation, and industrial cleaning. Its proportional dosing mechanism ensures precise injection regardless of fluctuations in water flow or pressure.

Engineered with a patented internal mixing chamber, the SuperDos ensures uniform and consistent blending while isolating aggressive chemicals from the motor components. This design enhances durability and extends operational life, even in demanding environments.

Constructed from a proprietary engineered composite material, the unit provides excellent resistance to corrosive chemicals. Designed for high flow systems, the SuperDos 30 is suitable for industrial, agricultural, and commercial dosing applications requiring dependable and continuous operation.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio from 0.2% to 2.5%

• High flow capacity for industrial applications

• Proportional dosing independent of flow and pressure variations

• Patented internal mixing chamber for consistent blending

• Chemical isolation from motor components for extended lifespan

• Self-priming design

• Adjustable dosing during operation

• Durable chemical-resistant construction

Applications

• Water treatment and disinfection

• Agriculture and fertigation

• Industrial cleaning and degreasing

• Cooling towers and process systems

• Chemical injection systems

Technical Specifications

• Model: SuperDos 30 (113709)
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 0.2% – 2.5%
• Flow Rate: 34 – 6780 L/h
• Operating Pressure: 0.34 – 6.9 Bar
• Connection Type: Inline
• Connection Size: 1" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
