Hydro Systems SuperDos 30 0.4–5% Water Powered Dosing Pump

High concentration dosing pump, water-powered proportional injector, non-electric chemical dosing system, industrial chemical injector

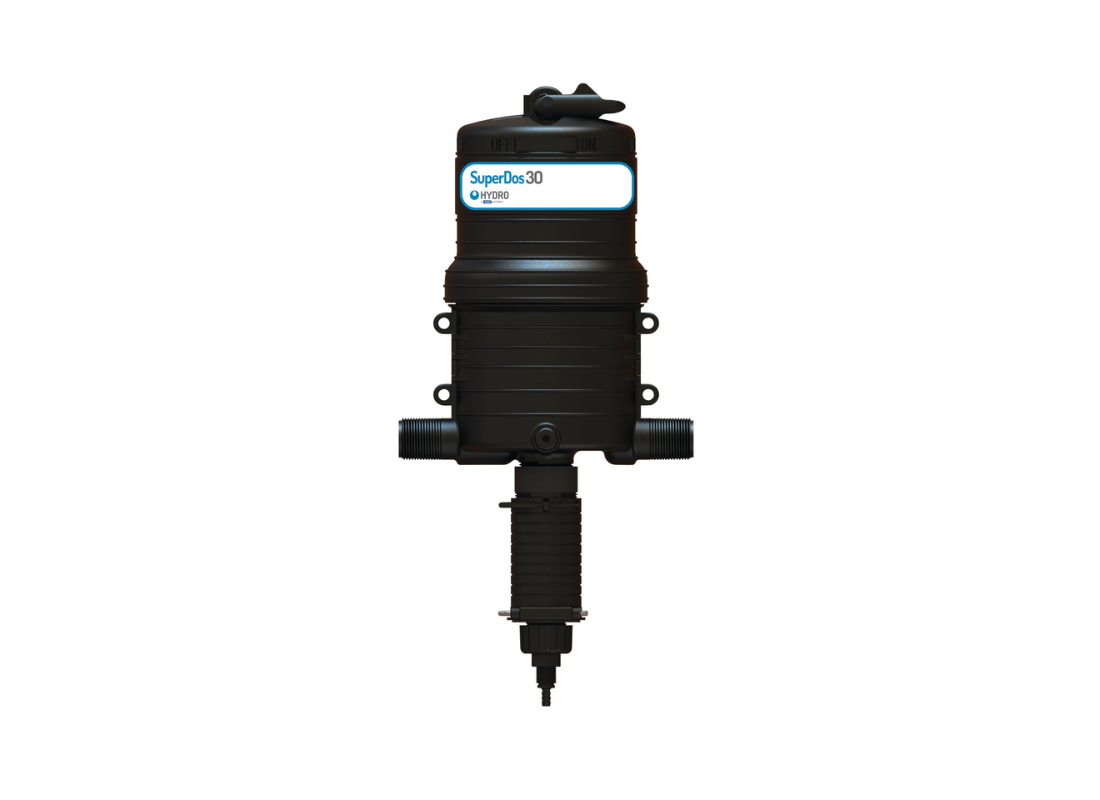

The Hydro Systems SuperDos 30 is a robust, high-performance water-powered dosing pump engineered for precise proportional chemical injection in demanding applications. Operating without electricity, it uses water flow as its power source, ensuring consistent and reliable dosing performance across varying flow and pressure conditions.

This model features an adjustable dosing range of 0.4% to 5%, making it ideal for higher concentration chemical applications such as sanitation, disinfection, industrial cleaning, and process treatment systems. Its proportional injection system ensures that the chemical dosage remains accurate regardless of fluctuations in water flow.

The patented internal mixing chamber ensures homogeneous blending while isolating aggressive chemicals from critical internal components, significantly extending service life and improving reliability.

Built from a proprietary engineered composite material, the SuperDos 30 offers excellent chemical resistance and long service life. Designed for high flow performance, it supports demanding industrial, agricultural, and commercial applications.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio from 0.4% to 5%

• High flow capacity for industrial systems

• Proportional dosing independent of flow and pressure variations

• Patented internal mixing chamber for uniform blending

• Chemical isolation from motor components for extended lifespan

• Self-priming design

• Adjustable dosing during operation

• Durable, chemical-resistant composite construction

Applications

• Industrial cleaning and sanitation

• Water treatment and disinfection

• Agriculture and fertigation

• Chemical processing systems

• Cooling towers and process water systems

Technical Specifications

• Model: SuperDos 30
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 0.4% – 5%
• Flow Rate: 34 – 6780 L/h
• Operating Pressure: 0.34 – 6.9 Bar
• Connection Type: Inline
• Connection Size: 1" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
