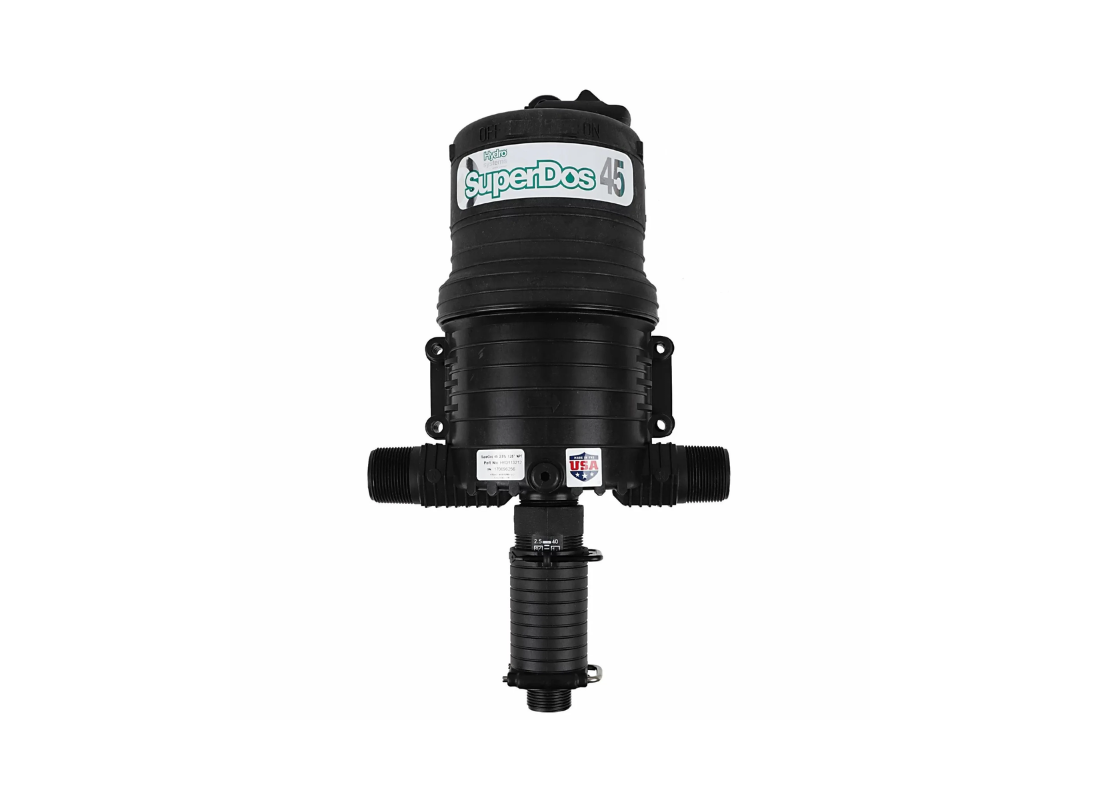

Hydro Systems SuperDos 45 0.2–2.5% Water Powered Dosing Pump

Medium concentration dosing pump, high flow water-powered injector, non-electric proportional dosing system, industrial chemical dosing solution

The Hydro Systems SuperDos 45 is a high-capacity water-powered dosing pump engineered for accurate and reliable proportional chemical injection in large-scale systems. Operating without electricity, it uses water flow as its power source to deliver consistent dosing performance regardless of fluctuations in flow or pressure.

This model features an adjustable dosing range of 0.2% to 2.5%, making it ideal for medium concentration applications such as water treatment, sanitation, fertigation, and industrial cleaning. Its proportional injection system ensures precise and consistent chemical dosing at all times.

Designed with a patented internal mixing chamber, the SuperDos ensures uniform blending while keeping aggressive chemicals isolated from internal motor components. This significantly enhances durability and extends operational life, even in demanding environments.

Constructed from a proprietary engineered composite material, the SuperDos 45 provides excellent resistance to corrosive chemicals. With high flow capabilities up to 4500 L/h, it is well-suited for industrial, agricultural, and commercial installations requiring dependable, high-volume dosing.

Key Features

Water-powered operation (no electricity required)
Adjustable dosing ratio from 0.2% to 2.5%
High flow capacity up to 4500 L/h
Proportional dosing independent of flow and pressure variations
Patented internal mixing chamber for consistent blending
Chemical isolation from motor components for extended lifespan
Self-priming design
Adjustable dosing during operation
Heavy-duty chemical-resistant construction

Applications

Water treatment and disinfection
Agriculture and fertigation
Industrial cleaning and sanitation
Cooling towers and process systems
Chemical dosing in high flow systems

• Technical Specifications
• Model: SuperDos 45 (113712)
• Pump Type: Water Powered Dosing Pump
• Dosing Range: 0.2% – 2.5%
• Flow Rate: 45-4500 L/h
• Operating Pressure: 0.34 – 6.9 Bar
• Connection Type: Inline
• Connection Size: 1 1/4" NPT/BSP
• Housing Material: Engineered Composite
• Operating Temperature: 1°C – 38°C
• Suction Lift (Vertical): Up to 3.6 m
• Suction Length (Horizontal): Up to 15 m
• Self-Priming: Yes
