Iwaki  |  Part Number: ES-B09VC3M-3DA

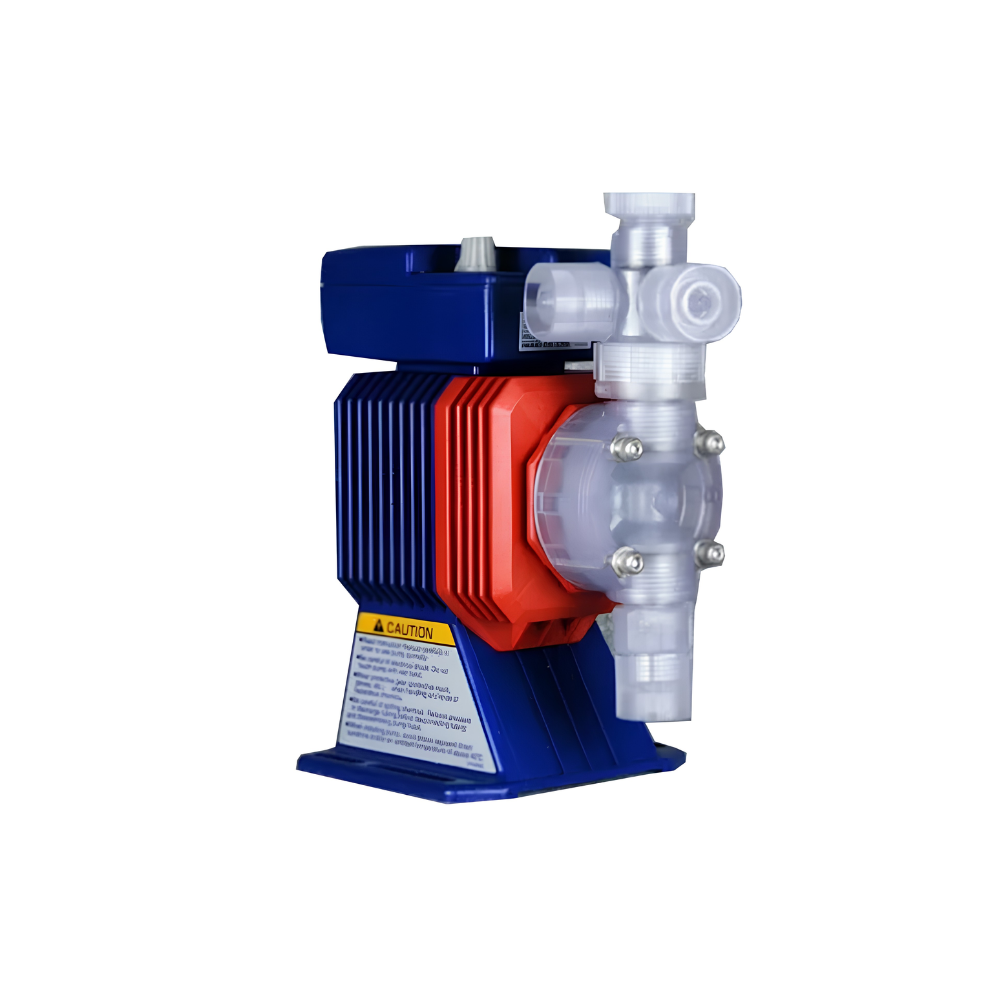

Iwaki ES-BM-3DA Manual Compact Electromagnetic Chemical Dosing Pump

Regular price $1,750.00 AUD
Including GST


Product Warranty

Unless otherwise stated in the manufacturer’s documentation, products are covered by a 12-month manufacturer’s warranty from the date of purchase for manufacturing defects only.

To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The product will be inspected and repaired, replaced or credited if a manufacturing defect is confirmed.

CONDITIONS

  • Product must be installed, operated and maintained as per manufacturer instructions.
  • Proof of purchase is required for all warranty claims.
  • Customer may be responsible for return postage and assessment costs.
  • Warranty repairs do not extend the original warranty period unless stated by the manufacturer.
  • Product must be cleaned, drained and safe to handle before return.

NOT COVERED

  • Incorrect installation, misuse or operation outside specifications
  • Lack of maintenance or unauthorised repair
  • Normal wear and tear or consumable parts
  • Chemical incompatibility or incorrect chemical use
  • Environmental damage, corrosion or external damage
  • Damage caused by water impurities, debris, scale or poor water quality
  • Incorrect product selection or use for an unsuitable application

Delivery and Shipping

Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.

Shipping times vary across Australia but typically range between 2–8 business days depending on your location.

If any items are on backorder, our team will contact you as soon as possible with an update.

Description

The Iwaki ES-B09VC3M-3DA is a compact manual electromagnetic diaphragm dosing pump designed for reliable chemical injection in water treatment, fertigation and light industrial dosing applications.

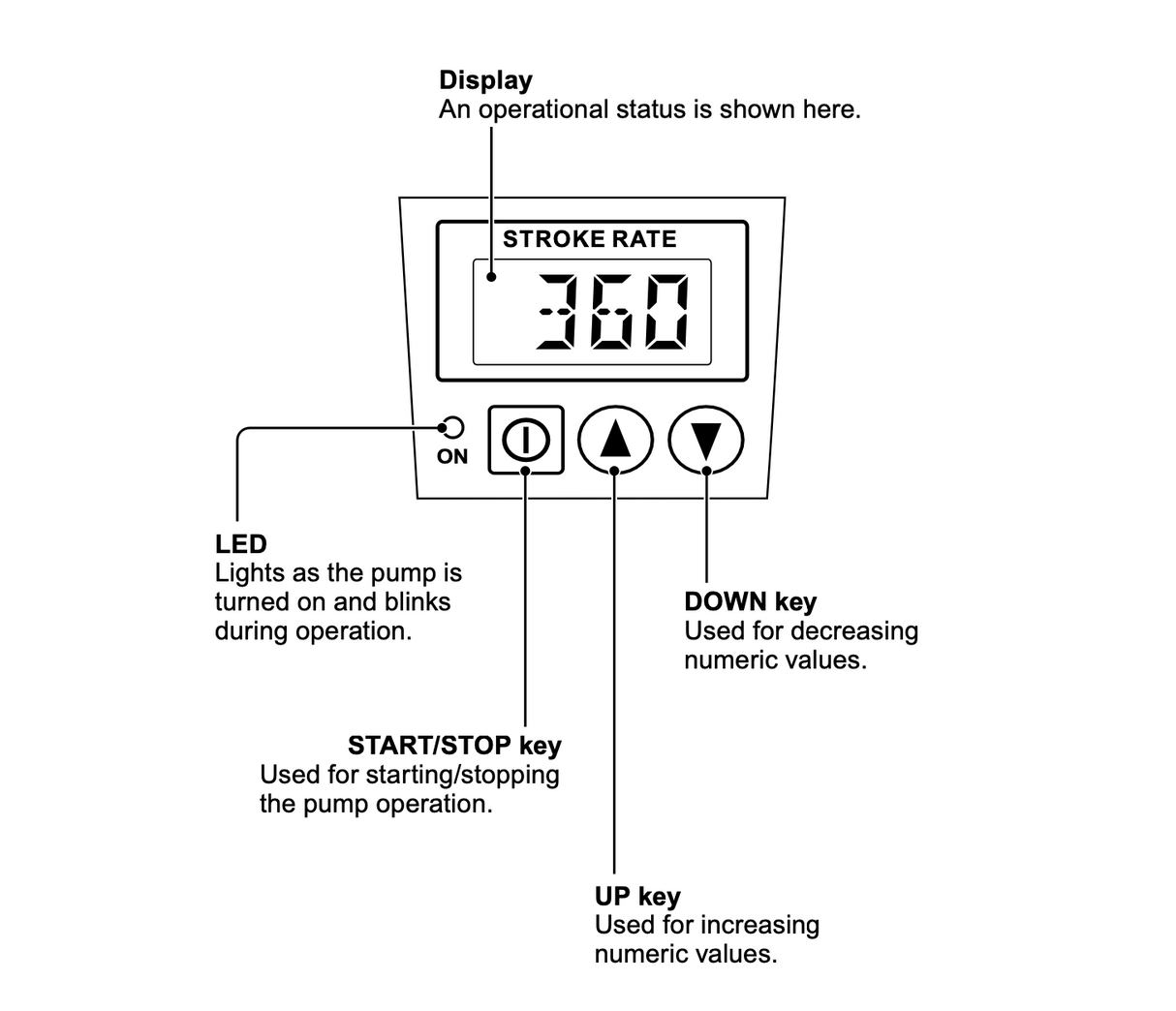

This ES model features simple manual stroke-speed control, allowing the dosing rate to be adjusted using the keypad. It is supplied with a PVC pump head, 6 x 8 tubing connections and delivers up to 1.14 L/h at 10 bar, making it a practical choice for accurate low-flow chemical dosing.

Each standard PVC head Iwaki dosing pump is supplied with a tube pack including an injection/check valve, foot valve with strainer, 2 metres of clear PVC suction hose and 3 metres of black PE discharge tube.

FEATURES

  • Manual chemical dosing pump
  • Electromagnetic diaphragm design
  • PVC pump head
  • Adjustable stroke rate from 1–360 spm
  • 1.14 L/h maximum flow rate
  • 10 bar maximum pressure
  • 6 x 8 tubing connections
  • IP65 equivalent sealed design
  • Supplied with tube pack
  • Suitable for fertigation

SPECIFICATIONS

Specification Details
SKU ES-B09VC3M-3DA
Brand Iwaki
Series ES
Pump Type Electromagnetic solenoid diaphragm pump
Control Mode Manual
Maximum Flow Rate 1.14 L/h
Maximum Pressure 10 bar
Pump Head Material PVC
Valve Material Alumina ceramic
O-Ring Material FKM
Valve Seat Material FKM
Diaphragm Material PTFE + EPDM
Tube Connection 6 x 8 mm
Stroke Rate 1–360 spm
Power Supply 230 VAC, 50 Hz
IP Rating IP65 equivalent
Applications Fertigation
Warranty 12 months
