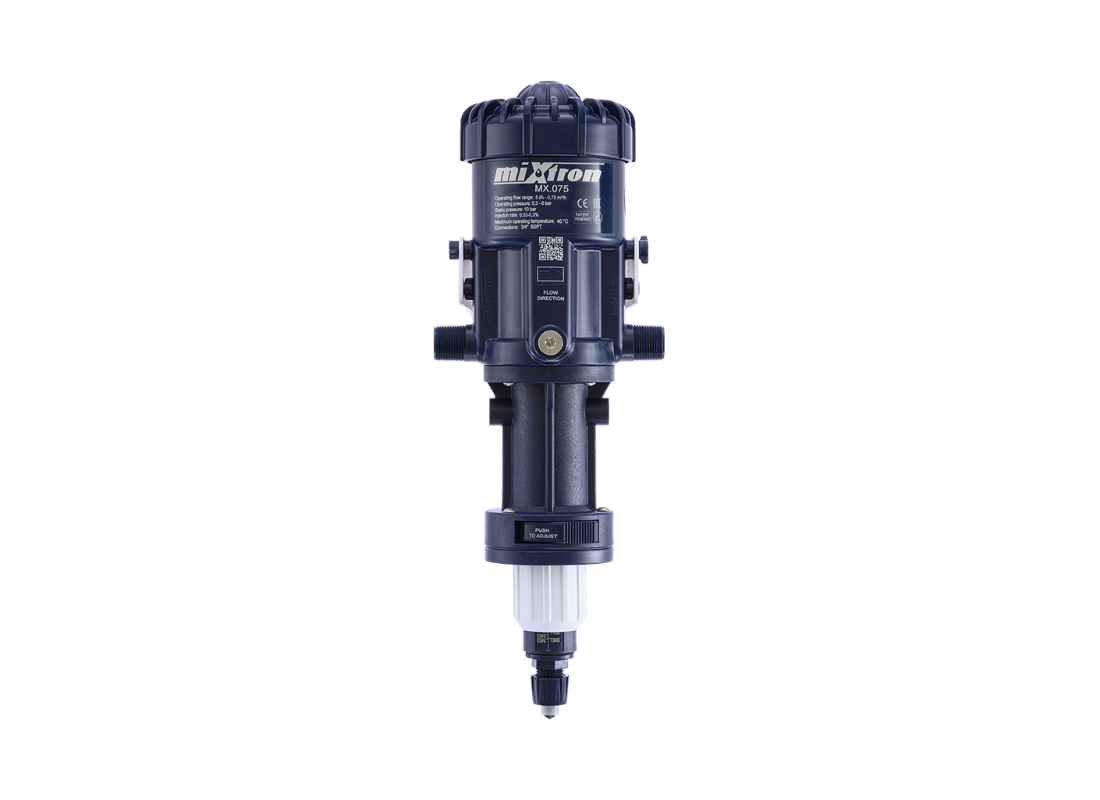

Mixtron MX075.P003-VF 0.03–0.3% Water Powered Dosing Pump

Water-powered dosing pump, 0.03–0.3% dosing ratio, up to 750 l/hr flow, PVDF internal components, includes installation capability

The Mixtron MX075-VF is a water-powered dosing pump designed for precise proportional chemical injection without the need for electricity. Engineered for reliability and efficiency, it uses water flow as its driving force, making it ideal for remote or utility-free installations.

With an adjustable dosing ratio from 0.03% to 0.3% (1:3000 to 1:350), this model provides accurate and consistent chemical dosing across a wide range of applications. It supports a maximum water flow rate of up to 750 L/h, ensuring stable performance in varying operating conditions.

Constructed with high-quality plastic components including POM, PP, PVDF, HDPE, and PA12, along with AISI 316 and Duplex stainless steel metallic parts, the pump offers excellent chemical resistance and durability. The VF Viton (Acidic) seals make it particularly suitable for acidic chemical dosing.

Designed for ease of use and minimal maintenance, the MX075-VF delivers reliable proportional dosing with strong repeatability and accuracy in industrial and water treatment environments.

Key Features

• Water-powered operation (no الكهرباء required)

• Adjustable dosing ratio: 0.03% – 0.3%

• Max flow rate: 750 L/h

• VF Viton (Acidic) seals for acidic compatibility

• High chemical resistance materials (PVDF, POM, PP, HDPE)

• Accurate proportional dosing with ±5% accuracy

• Compact and durable design

• Easy installation with 3/4” BSPT connection

Applications

• Water treatment systems

• Agriculture & fertigation

• Car wash systems

• Chemical dosing and injection

• Cleaning and sanitation systems

• Industrial processing

Technical Specifications

• Model: MX075-VF

• Dosing Ratio: 0.03% – 0.3% (1:3000 – 1:350)

• Max Flow Rate: 750 L/hr

• Min Flow Rate: 5 L/hr

• Operating Pressure: 0.3 – 6 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, PVDF, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 3/4” BSPT
