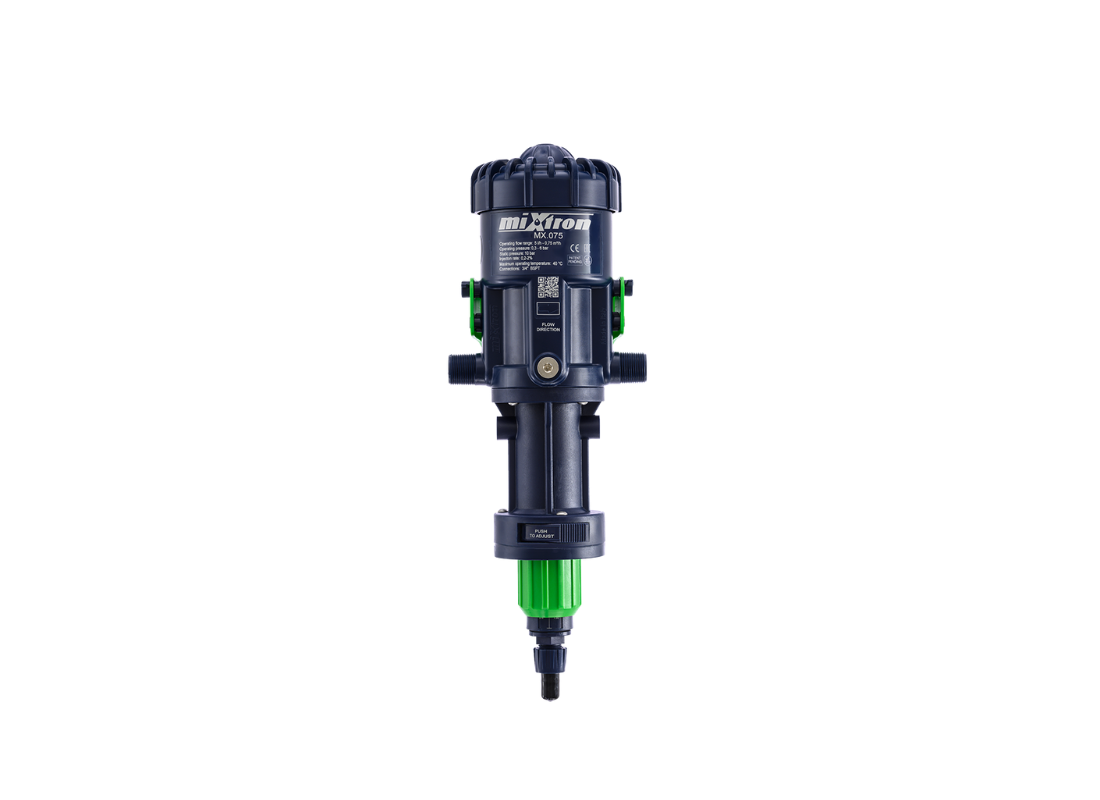

Mixtron MX075.P022-VF 0.2–2% Water Powered Dosing Pump

Water-powered dosing pump, 0.2–2% dosing ratio, up to 750 l/hr flow, high chemical resistance materials, no electricity required

The Mixtron MX075-VF is a water-powered dosing pump engineered for accurate proportional chemical injection without the need for electrical power. Designed for reliability and efficiency, it operates using water flow, making it ideal for remote installations and cost-effective dosing systems.

With an adjustable dosing ratio from 0.2% to 2% (1:500 to 1:50), this model provides precise and consistent dosing performance across a wide range of applications. It supports a maximum water flow rate of up to 750 L/h, ensuring stable operation under varying conditions.

Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump offers excellent resistance to chemicals and wear. The VF Viton (Acidic) seals make it suitable for acidic chemical dosing applications.

The MX075-VF delivers reliable dosing accuracy (±5%) and repeatability (±3%), ensuring consistent chemical injection with minimal maintenance requirements.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 0.2% – 2%

• Max flow rate: 750 L/h

• VF Viton (Acidic) seals for acidic compatibility

• Durable construction with high chemical resistance materials

• Accurate proportional dosing (±5% accuracy)

• Compact and robust design

• 3/4” BSPT connection for easy installation

Applications

• Water treatment systems

• Agriculture & fertigation

• Car wash systems

• Chemical injection and dosing

• Cleaning and sanitation

• Industrial processing

Technical Specifications

• Model: MX075-VF

• Dosing Ratio: 0.2% – 2% (1:500 – 1:50)

• Max Flow Rate: 750 L/hr

• Min Flow Rate: 5 L/hr

• Operating Pressure: 0.3 – 6 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 3/4” BSPT
