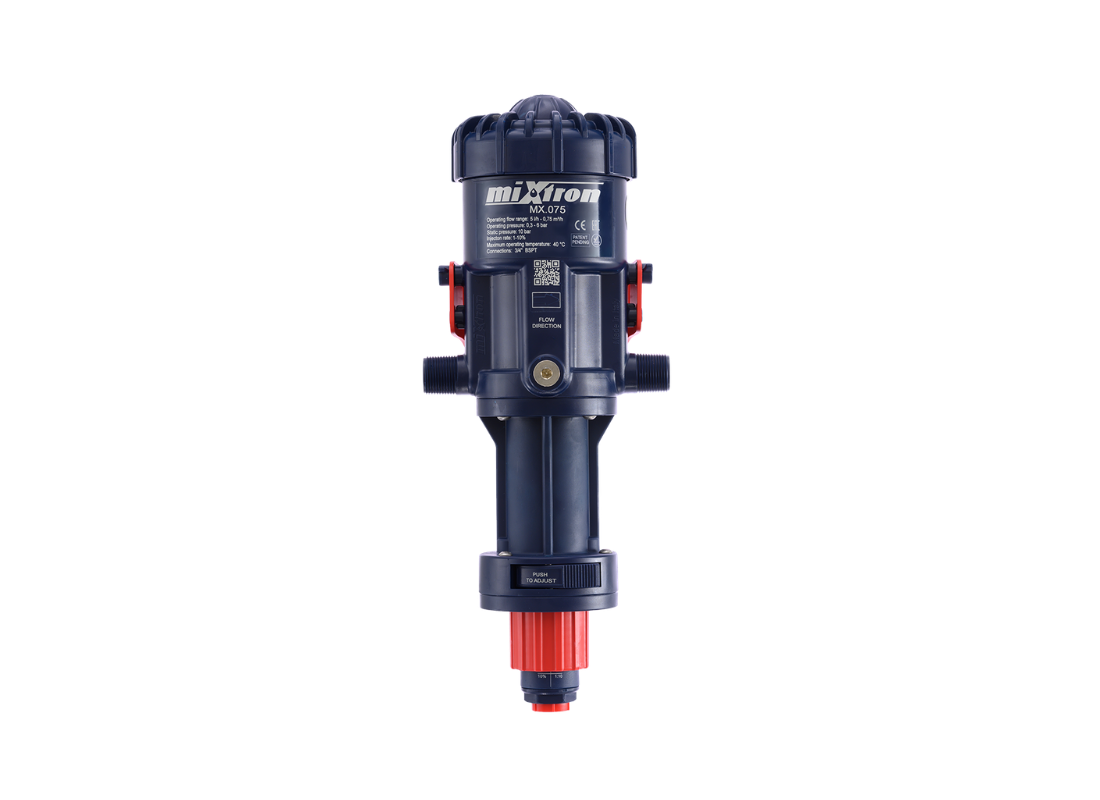

Mixtron MX075.P110-VF 1–10% Water Powered Dosing Pump

Water-powered dosing pump, 1–10% dosing ratio, up to 750 l/hr flow, high chemical resistance materials, no electricity required

The Mixtron MX075-VF is a water-powered dosing pump designed for high-concentration proportional chemical injection without the need for electrical power. Powered directly by water flow, it provides a reliable and efficient solution for applications where electricity is unavailable or impractical.

With an adjustable dosing ratio from 1% to 10% (1:100 to 1:10), this model is ideal for applications requiring strong chemical concentration and precise dosing control. It supports a maximum water flow rate of up to 750 L/h, ensuring stable and consistent performance across a wide range of operating conditions.

Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel metallic components, the pump offers excellent resistance to chemicals and wear. The VF Viton (Acidic) seals make it suitable for acidic chemical dosing, ensuring long-term reliability.

The MX075-VF delivers consistent dosing accuracy of ±5% and repeatability of ±3%, providing dependable chemical injection with minimal maintenance.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 1% – 10%

• Max flow rate: 750 L/h

• VF Viton (Acidic) seals for acidic compatibility

• High chemical resistance materials (POM, PP, HDPE, PA12)

• Accurate proportional dosing (±5% accuracy)

• Compact and durable design

• 3/4” BSPT connection for easy installation

Applications

• Water treatment systems

• Agriculture & fertigation

• Car wash systems

• Chemical dosing and injection

• Cleaning and sanitation systems

• Industrial processing

Technical Specifications

• Model: MX075-VF

• Dosing Ratio: 1% – 10% (1:100 – 1:10)

• Max Flow Rate: 750 L/hr

• Min Flow Rate: 5 L/hr

• Operating Pressure: 0.3 – 6 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 3/4” BSPT
