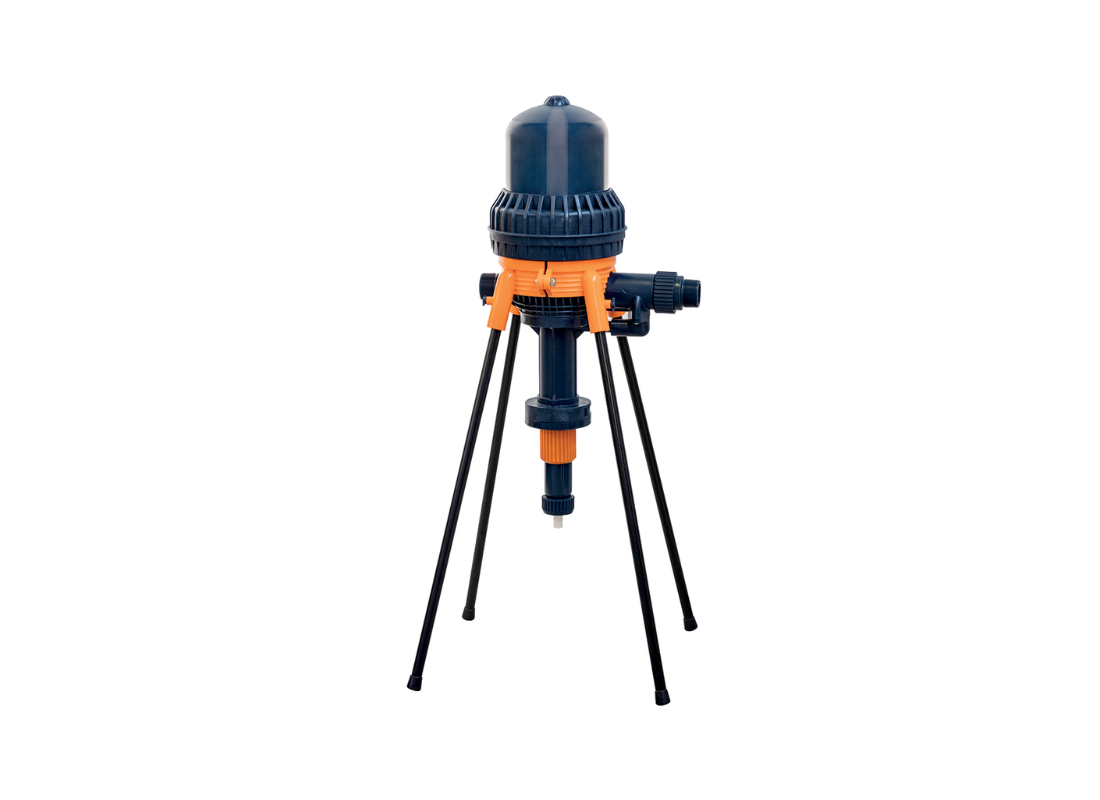

Mixtron MX1100.P055-NBR 0.5–5% Water Powered Dosing Pump with Built-In Bypass

Water-powered dosing pump, 0.5–5% dosing ratio, up to 11,000 l/hr flow, built-in bypass system, no electricity required

The Mixtron MX1100-NBR is a high-capacity water-powered dosing pump designed for proportional chemical injection without the need for electrical power. Engineered for industrial-scale applications, it operates using water flow, making it ideal for large systems and environments where electricity is unavailable or impractical.

With an adjustable dosing ratio from 0.5% to 5% (1:200 to 1:20), this model is suitable for medium to high concentration dosing applications. It supports a maximum water flow rate of up to 11,000 L/h, ensuring reliable and consistent performance in high-demand environments.

This version includes a built-in bypass system, allowing effective dosing even at lower flow rates while improving system flexibility and operational stability. Constructed from durable materials such as POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump provides excellent chemical resistance and long service life.

Equipped with NBR seals, this model is best suited for oils, fuels, and hydrocarbon-based chemical applications, offering reliable sealing performance and durability under such conditions.

The MX1100-NBR delivers consistent dosing accuracy (±5%) and repeatability (±3%), ensuring dependable and precise chemical injection.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 0.5% – 5%

• Max flow rate: 11,000 L/h

• Built-in bypass system for low-flow operation

• NBR seals for oil and hydrocarbon compatibility

• High chemical resistance materials (POM, PP, HDPE, PA12)

• Accurate proportional dosing (±5% accuracy)

• Heavy-duty industrial design

• 2” BSPT connection

Applications

• Oil and fuel dosing systems

• Industrial processing

• Agriculture & fertigation

• Water treatment systems

• Car wash systems

• Chemical injection applications

Technical Specifications

• Model: MX1100-NBR

• Dosing Ratio: 0.5% – 5% (1:200 – 1:20)

• Max Flow Rate: 11,000 L/hr

• Min Flow Rate: 1,000 L/hr

• Operating Pressure: 0.3 – 8 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: NBR

• Plastic Materials: POM, PP, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 2” BSPT
