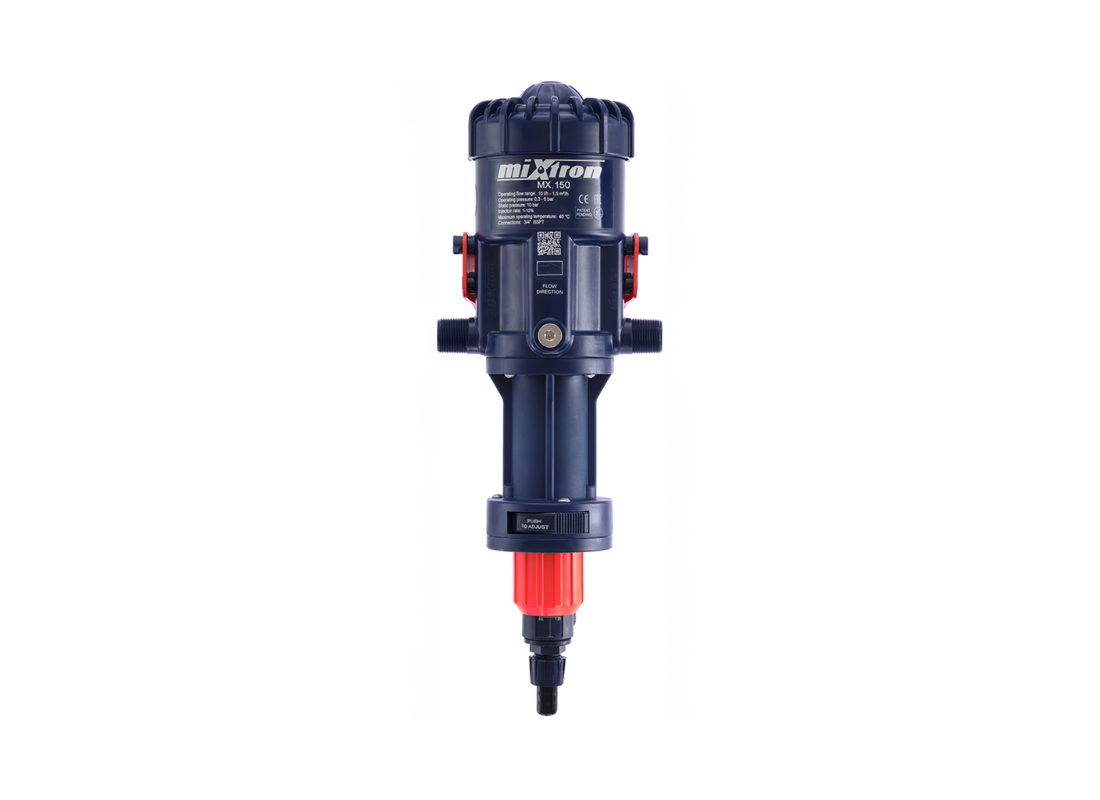

Mixtron MX150.P110-VF 1–10% Water Powered Dosing Pump

Water-powered dosing pump, 1–10% dosing ratio, up to 1,500 l/hr flow, high chemical resistance materials, no electricity required

The Mixtron MX150-VF is a water-powered dosing pump designed for high-concentration proportional chemical injection without the need for electrical power. Using water flow as its driving force, it provides a reliable and efficient solution for demanding dosing applications in industrial and agricultural environments.

With an adjustable dosing ratio from 1% to 10% (1:100 to 1:10), this model is ideal for applications requiring strong chemical concentration and precise dosing control. It supports a maximum water flow rate of up to 1,500 L/h, ensuring consistent and stable performance across varying operating conditions.

Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump offers excellent resistance to wear and chemical exposure. The VF Viton (Acidic) seals ensure compatibility with acidic solutions and long-term durability.

Designed for reliability, the MX150-VF delivers dosing accuracy of ±5% and repeatability of ±3%, ensuring consistent chemical injection with minimal maintenance requirements.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 1% – 10%

• Max flow rate: 1,500 L/h

• VF Viton (Acidic) seals for acidic compatibility

• High chemical resistance materials (POM, PP, HDPE, PA12)

• Accurate proportional dosing (±5% accuracy)

• Compact and durable design

• 3/4” BSPT connection

Applications

• Water treatment systems

• High concentration chemical dosing

• Cleaning and sanitation

• Agriculture & fertigation

• Car wash systems

• Industrial processing

Technical Specifications

• Model: MX150-VF

• Dosing Ratio: 1% – 10% (1:100 – 1:10)

• Max Flow Rate: 1,500 L/hr

• Min Flow Rate: 10 L/hr

• Operating Pressure: 0.3 – 6 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 3/4” BSPT
